International 37 and 47 Balers - Operator's Manual

In stock
Regular price $18.99 inc. VAT
Title

International 37 and 47 Balers Operator's Manual

66 Pages

This Manual is available in: Digital Download

CONTENTS

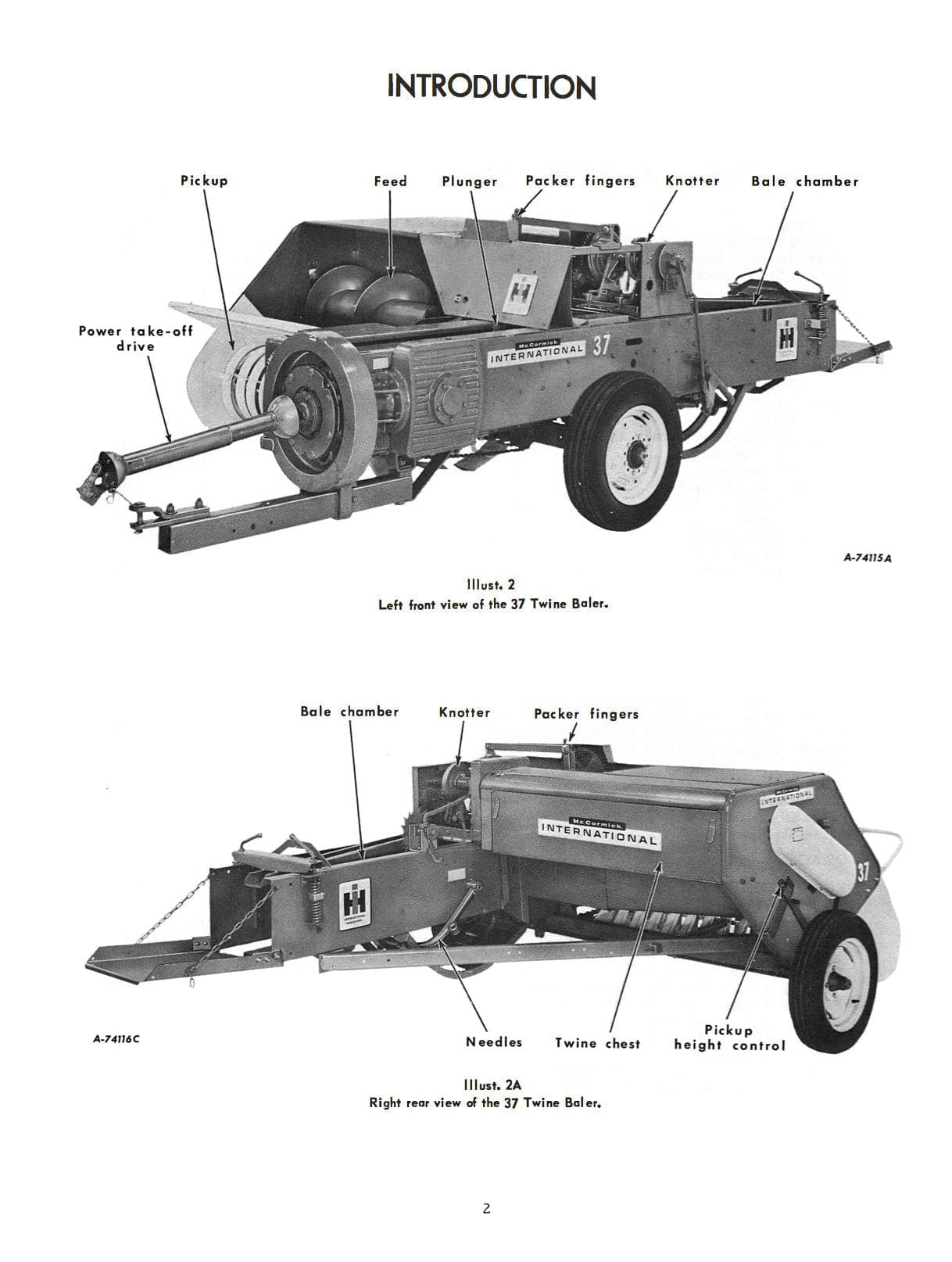

INTRODUCTION

PREPARING YOUR BALER FOR WORK

  • Friction Drive
  • General
  • Hitching
  • Making an Operational Check
  • Overrunning Clutch
  • Pickup Slip Clutch
  • Plunger Stop
  • Shear Bolts
  • Threading the Tying Mechanism on the Twine Baler
  • Threading the Wire Twisting Mechanism on the Wire Baler

OPERATION OF YOUR BALER

  • Bale Chamber Tension
  • Bale Length
  • Bale Weight
  • Combination Bale Turner and Bale Chamber Extension
  • Operating Speed
  • Packer Fingers
  • Pickup Balance Spring
  • Pickup Cover
  • Pickup Drive
  • Pickup Feed Auger
  • Pickup Height
  • Pickup Lift Rope
  • Pickup Wheel
  • Plunger Crank Shield
  • Safety Suggestions

CARE OF YOUR BALER

  • Bale Chamber and Plunger
  • Needle Clearance over Stripper Fingers
  • Needle Height for Twine Baler
  • Needle Height for Wire Baler
  • Needle Replacement for Twine Baler
  • Needle Replacement for Wire Baler
  • Pickup and Feeder
  • Timing the Baler
  • Twine Tying Mechanism
  • Wire Disk
  • Wire Stripper

STORAGE

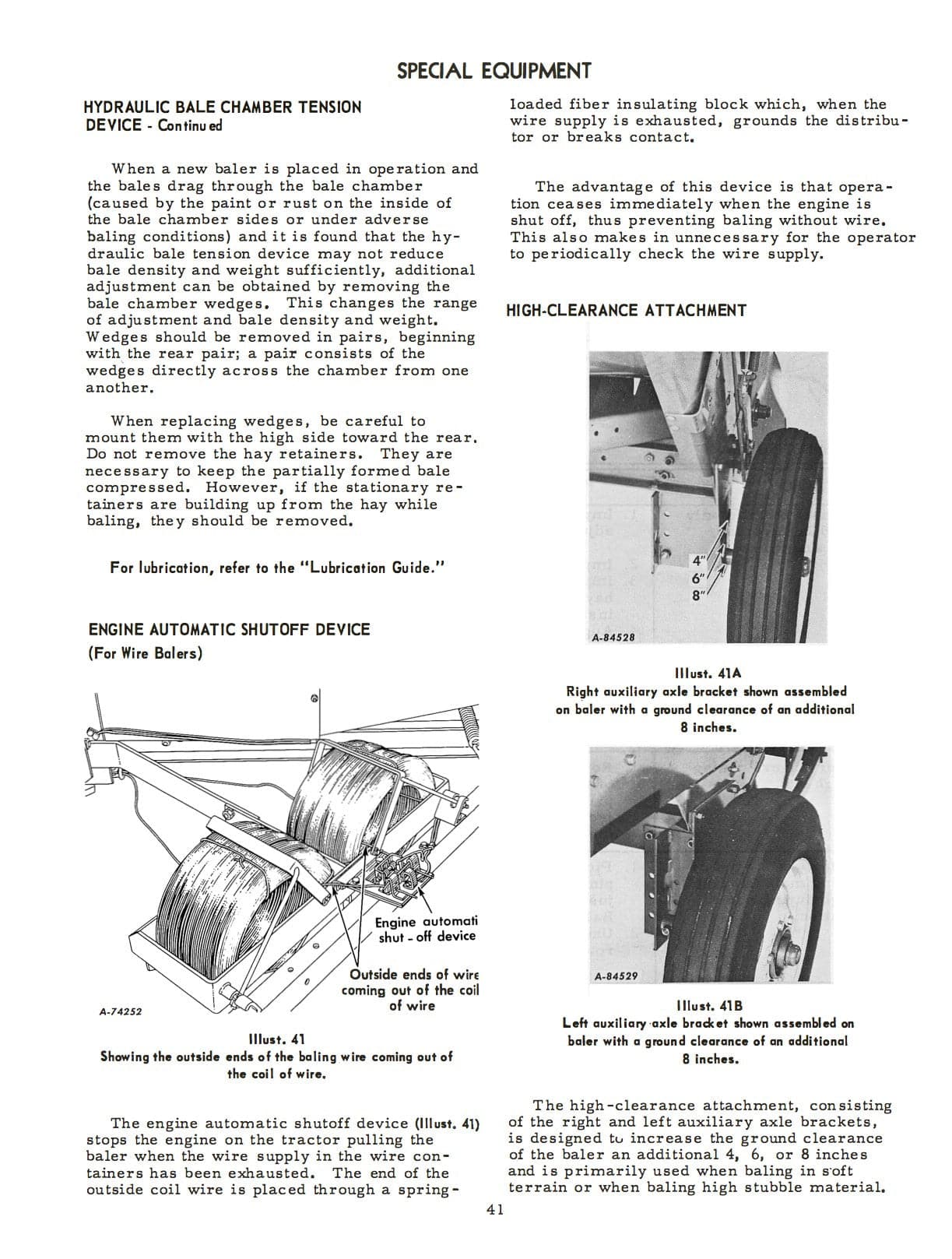

SPECIAL EQUIPMENT

  • 10 Bale Thrower
  • Engine Automatic Shut - off Device (Wire Baler)
  • Flywheel and Belt Shield (Wisconsin Engine)
  • Flywheel and Knuckle Shield
  • High - Clearance Attachment
  • Hydraulic Bale Chamber Tension Device
  • Left Dual Wheel Attachment
  • Lifting Jack Attachment
  • Right Dual Wheel Attachment
  • Safety Lighting
  • THD Wisconsin Engine Attachment
  • Trailer Hitch and Bale Chute Attachment
  • VH4D Wisconsin Engine Attachment

FINDING TROUBLE

LUBRICATION

SPECIFICATIONS

Manual Code: 1 010 373 R3
