Allis-Chalmers 5015 Compact Diesel Tractor Operator's Manual
This is the Operator's Manual for the Allis-Chalmers 5015 compact diesel tractor, covering lubrication and service, operating controls, operation, adjustments, wiring diagram, and optional equipment across 63 pages. This is the original factory document Allis-Chalmers issued to 5015 owners and is available as an instant digital download.
About the Allis-Chalmers 5015
The Allis-Chalmers 5015 was a compact diesel utility tractor produced in the early 1980s as part of AC's 50-series compact lineup, built under a sourcing arrangement with Fiat/Same in Italy and badged as an Allis-Chalmers for the North American market. It was powered by a 3-cylinder naturally aspirated diesel engine producing approximately 15 PTO horsepower — positioning it as an entry-level diesel compact suited to hobby farms, market gardens, orchards, and small-acreage operations where diesel economy and reliability were preferred over gasoline power but full-size tractor capability wasn't required. The 5015 featured a gear-shift transmission with a live PTO, front-wheel drive axle option, and a Category I 3-point hitch with position control — giving it genuine implement capability within its horsepower class. The injection pump and fuel system design was typical of European compact diesel practice of the era, and the bleeding and priming procedures documented in this manual reflect that design heritage, differing from American-designed tractor fuel systems. The 5015 competes in the same compact diesel segment as the Ford 1600 and Kubota L-series machines that were popular during the same period, and its Fiat/Same mechanical base gives it good durability when properly maintained.
What This Manual Covers
This 63-page manual covers the AC 5015 from initial operation through the full maintenance schedule and optional equipment. Key sections include:
- General Information — dealer and customer responsibilities; battery service adjustment policy; safety; specifications; general information overview

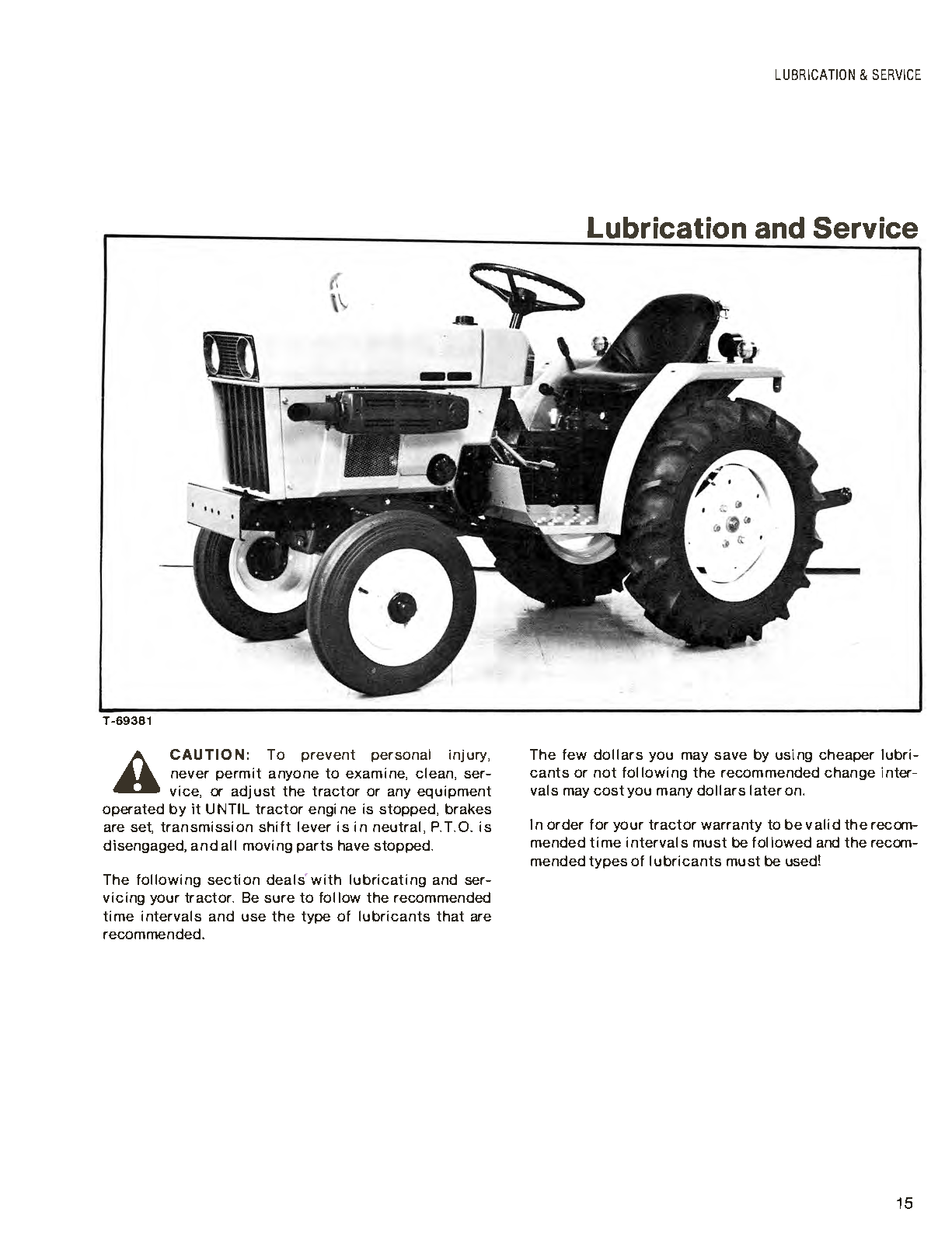

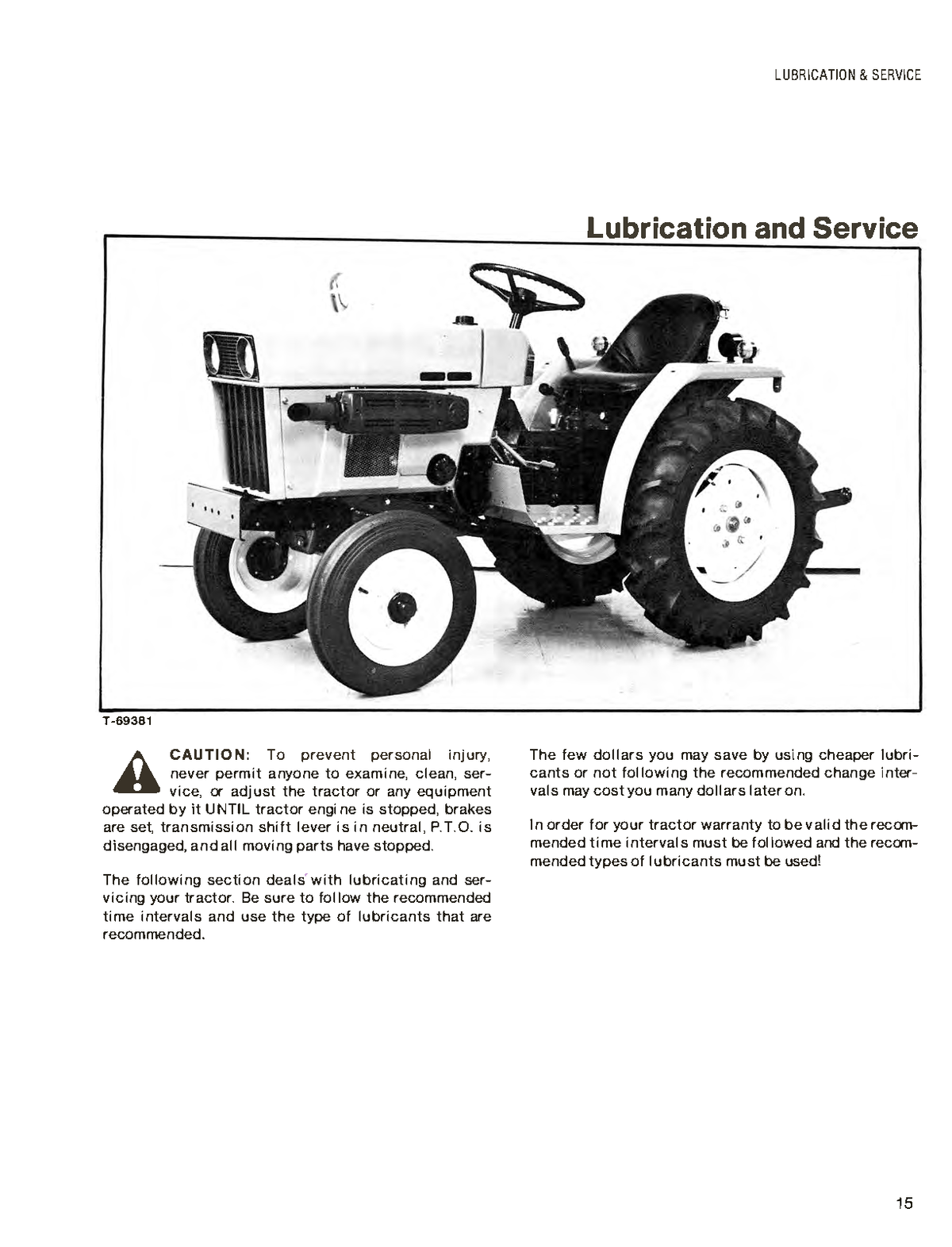

- Lubrication & Service — time interval chart; lubrication and service guide; front axle; 3-point hitch; clutch and brake shaft assembly; cooling system; engine oil levels and filters; fuel sediment bowl and filter; bleeding air from the fuel system; front wheel bearings; transmission and hydraulic system oil level and filter; front axle drive; battery; fuel tank; air cleaner and element; alternator; injection pump lubrication; engine service tips; tractor storage
- Operating Controls & Instruments — instrument panel; control locations
- Operation — engine starting and stopping; warm-up and break-in periods; engine clutch pedal; gear shifting; coasting; brakes; PTO shaft and operation; 3-point hitch operation; tire inflation; tractor weighting
- Adjustments — position control lever; rate of lower; PTO shift lever and safety start switch; fan belt; engine clutch pedal; brake pedal; wheel tread and torque; front wheel bearings; seat adjustment
- Wiring Diagram — complete electrical diagram for the 5015
- Optional & Extra Equipment — ROPS protective frame reinstallation; front and rear weights; metric conversion data; torque charts
Why This Manual Matters
- Fuel system bleeding procedure for European diesel design: The 5015's injection pump and fuel system uses a bleeding sequence typical of Fiat/Same compact diesels, which differs significantly from American-designed fuel systems — the factory bleeding procedure documented here is essential after any fuel system service, filter change, or fuel starvation event
- Injection pump lubrication: The 5015's injection pump has its own lubrication requirement separate from the engine oil circuit — a service point unique to this type of compact diesel and one that is frequently overlooked by operators unfamiliar with European diesel injection system design
- 3-point hitch position control adjustment: The position control lever friction and rate-of-lower adjustments are documented with the factory specifications — the settings that determine how smoothly and controllably the 3-point hitch raises and lowers, and that affect draft implement performance in varying soil conditions
- Front axle drive service: The front drive axle fluid specification and service interval are documented separately from the main transmission — covering the front drive system that 2WD-only resources will miss and that requires its own maintenance schedule
- Clutch and brake shaft assembly service: The clutch and brake shaft assembly service point is documented with its lubrication requirement — a service point specific to the 5015's drivetrain layout that determines clutch engagement quality and brake pedal feel
- Original factory content: This is the manual Allis-Chalmers issued to 5015 owners, carrying manual code 2097373
Manual Code: 2097373
