Allis-Chalmers 77 Series Air Champ Planting Units Operator's Manual
Allis-Chalmers 77 Series Air Champ Planting Units Operator's Manual
115 Pages – Digital Download
This downloadable Allis-Chalmers 77 Series Air Champ manual is the complete factory operator’s guide for setup, calibration, field adjustments, and everyday use of Air Champ planting units. It provides the essential instructions needed to operate, maintain, and troubleshoot your Allis-Chalmers planter with confidence.
About This Air Champ Manual

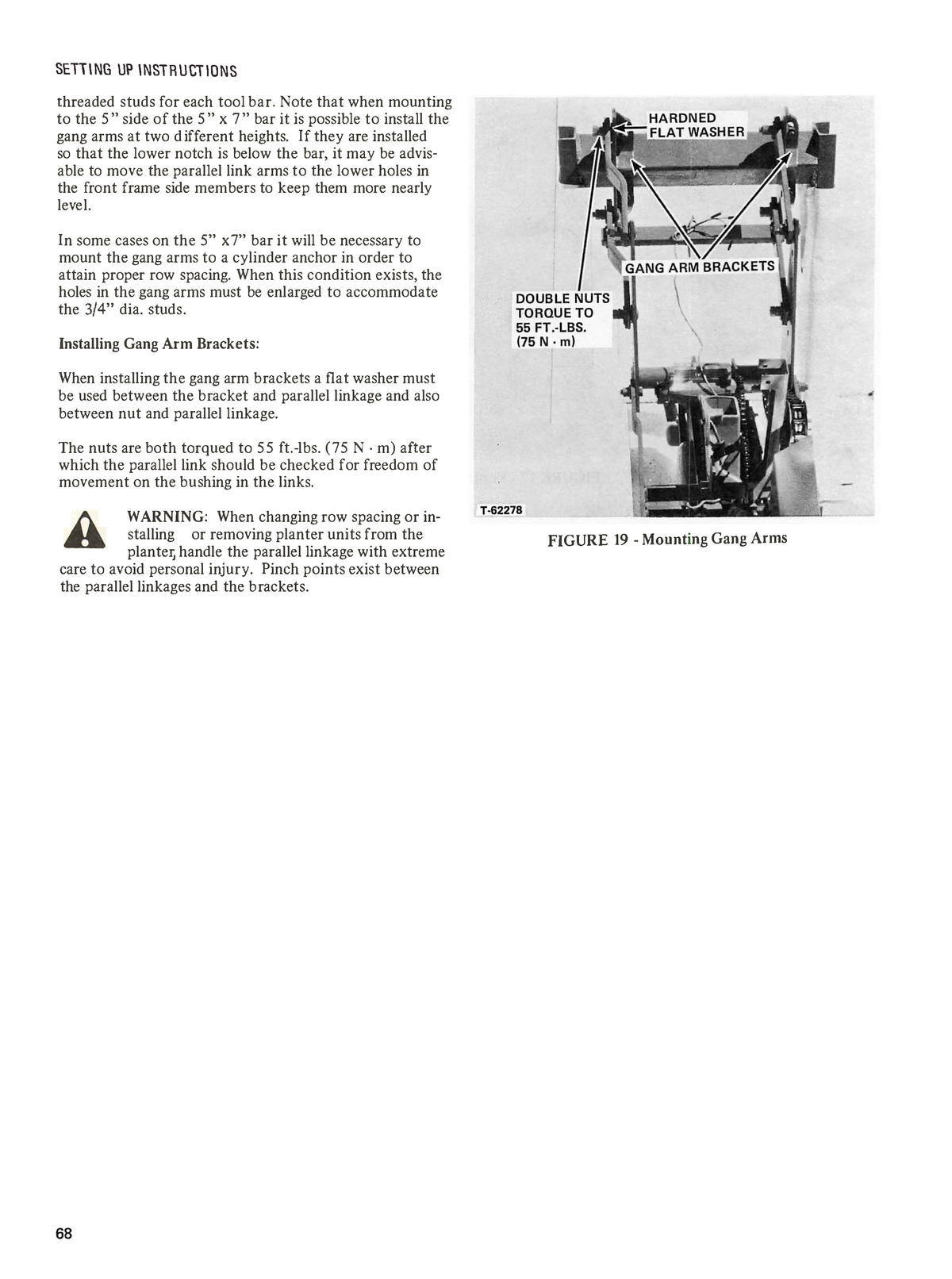

Inside this Air Champ planting units manual, you’ll find lubrication charts, planting depth settings, seed spacing charts, monitor system information, and herbicide/insecticide application procedures. Clear diagrams and step-by-step instructions make this an essential reference for owners, mechanics, and restorers.
Manual Contents
General Information
To Our Customer
User’s Responsibility & Warranty
Safety Precautions
General Information
Lubrication
Operation – Air Champ Planting Units
- Leveling Planter Units
- Seed Openers and Depth Adjustment
- Gauge Wheels and Camber Adjustment
- Seed Skid Depth & Plate Angle
- Seed Spacing Information (IS)
- Ground Travel & Planting Speed
- Changing Sprockets
- Seed Discs
- Population Charts (Corn, Sorghum, Soybeans)
- Disc Furrowers & Covering Systems
- ACP-1 and ACP-3 Planter Monitor Systems
Field Service Tips & Monitor Troubleshooting
Service Tips – Planter Monitor
Service Tips – ACP-1 Non-Counting Monitor
Service Tips – ACP-3 Counting Monitor
Troubleshooting Air Champ Units
Granular Insecticide & Herbicide System
- Indicator Settings
- Hopper Synchronization
- Calibration Procedures
- Herbicide & Insecticide Charts
- Fan Height Adjustment
- Drive Chains
- Herbicide Incorporator
- Maintenance
General Service Information
- Shaft & Bearing Replacement in Seed Disc Housing
- Unit Drive Shaft Bushing Replacement
Setting Up Air Champ Units
- Seed Disc Covers, Pads & Sensors
- Drive Chain Installation
- Disc Opener Scrapers
- Hopper Setup & Seed Gate Adjustment
- Depth Bands & Pressure Springs
- Seed Press Wheels
- Knife & Disc Covers
- Monitor Console Installation
- Cables, Harnesses & Sensor Wiring
- Herbicide & Insecticide Attachments
Monitor Service Procedures
- Console Testing
- Sensor Testing
- Photoelectric Planter Harness Service
- ACP-1 & ACP-3 Service Guides
