Allis-Chalmers B-Series Lawn & Garden Tractor Service Manual
This 234-page service manual is the master repair reference for the full Allis-Chalmers B-Series lawn and garden tractor line and its factory attachments, originally published by Allis-Chalmers as part number 9003453 in February 1976. It pulls every B-Series model into a single shop volume, with serial-number-specific procedures, hydrostatic drive overhaul, exploded power-train work, and attachment service all in one place. Delivered as an instant PDF download you can read on any device or print for the bench.
Configurations covered: B-1 · B-10 (S/N 15001–31227) · Big Ten · B-10 (S/N 50001 & Up) · B-12 · B-110 · B-112 · HB-112 · B-206 / B-206-E · B-207 / B-207-E · B-208 / B-208-S · B-210 · B-212 · HB-212
About the Allis-Chalmers B-Series
The B-Series was Allis-Chalmers' entry into the suburban riding-tractor market, built for them by Simplicity Manufacturing — the company Allis-Chalmers owned outright from 1965 to 1983. The line opened in 1961 with the 7.25 hp B-1, a Briggs-powered, three-speed machine essentially identical to the Simplicity 725 under yellow paint. Through the 1960s the range expanded fast: the 9 hp B-10 arrived in 1963, the 10 hp Big Ten in 1965, and the 12 hp B-12 in 1966. The later B-110, B-112 and the B-200 series (B-206 through B-212, including the hydrostatic-drive HB models) followed from 1968 into the early 1970s. Early B-Series tractors were uniformly Briggs & Stratton powered and finished in the line's signature yellow.
Because so many of these models shared a common design lineage but diverged in drivetrain, electrical setup, and serial-number running changes, a single consolidated service manual like this one is the practical way to work on them. This volume documents those differences model by model rather than assuming one machine.
What This Manual Covers
- Specifications: Model-by-model specs for every tractor in the line, from the B-1 through the B-210/B-212/HB-212, including the separate B-10 serial-number ranges.
- Engine: Operating and maintenance instructions, engine/drive-shaft and coupling removal (broken out by model and serial number), tractor storage prep, and engine-difficulty diagnosis.
- Tractor: Steering gear removal, front axle assembly, lubrication, adjustments, controlled-traction differential adjustment, rear lift drawbar, and clutch & brake service across the model range.

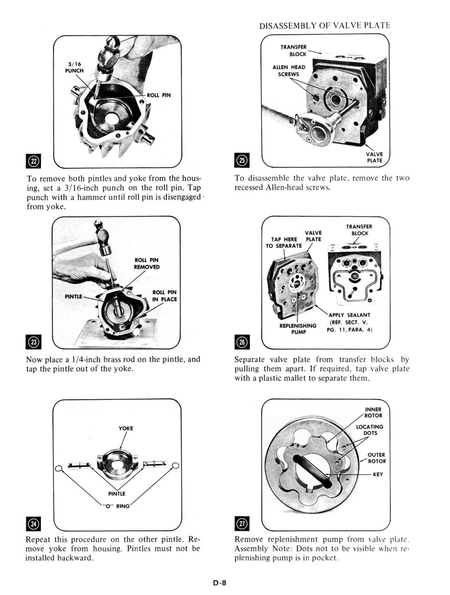

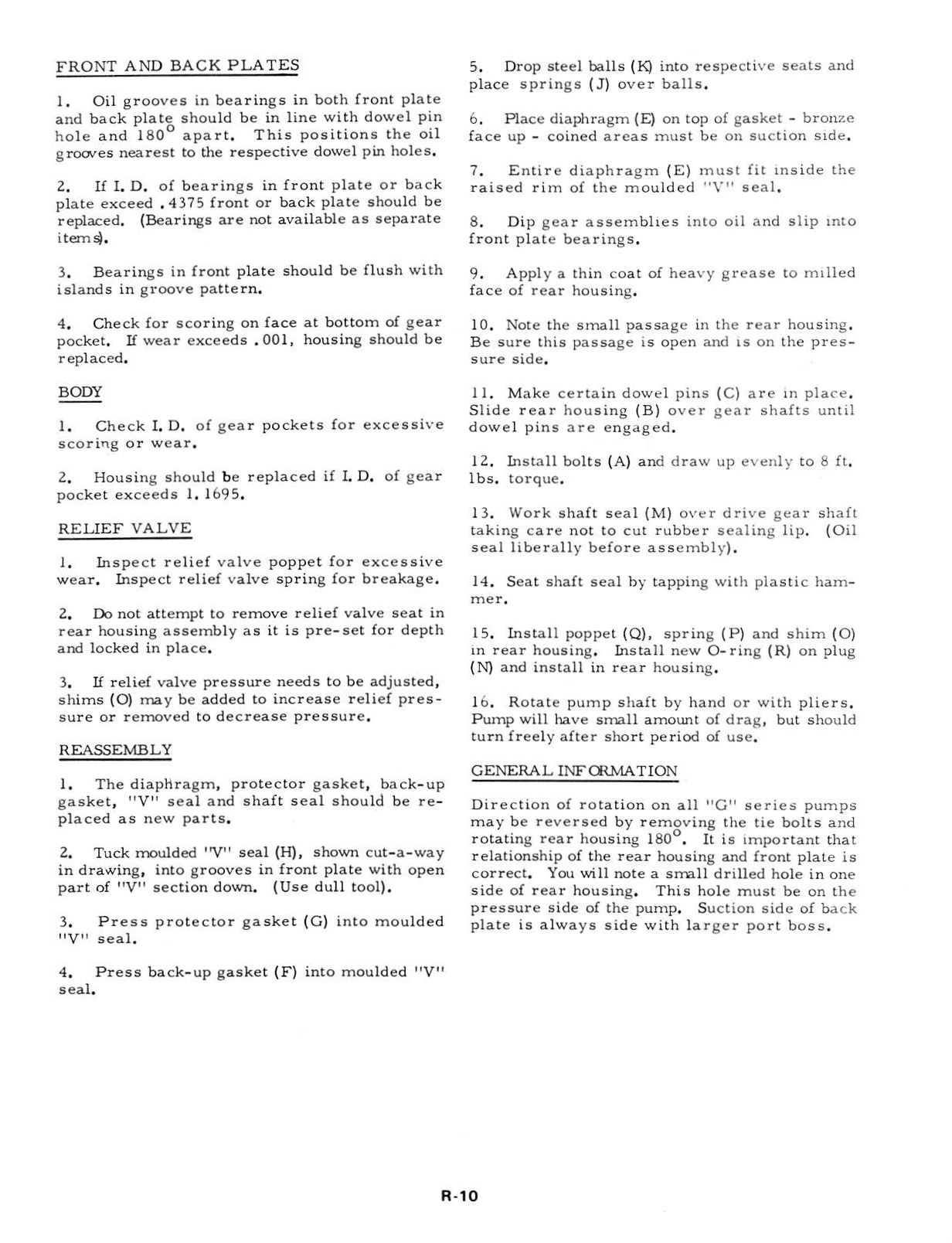

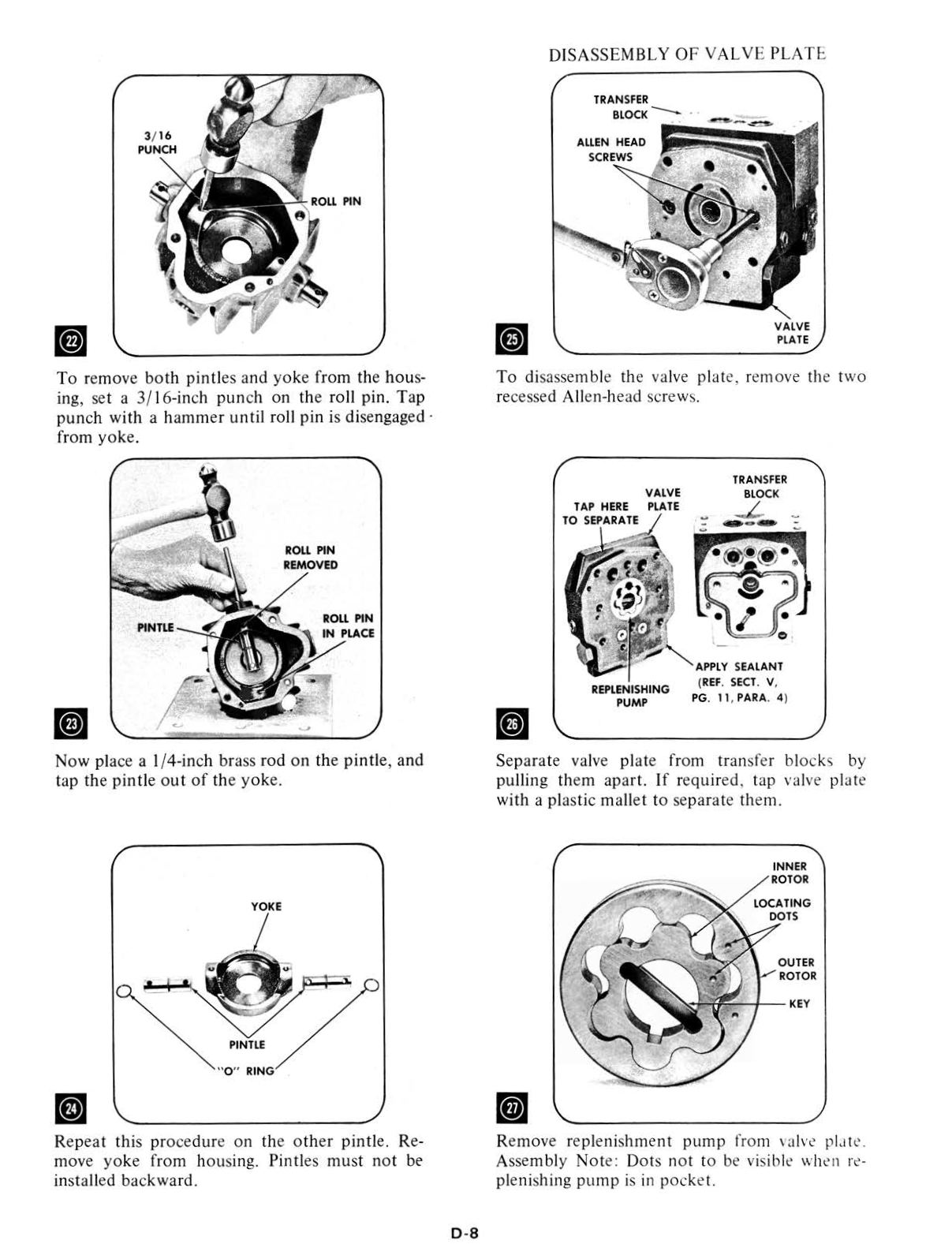

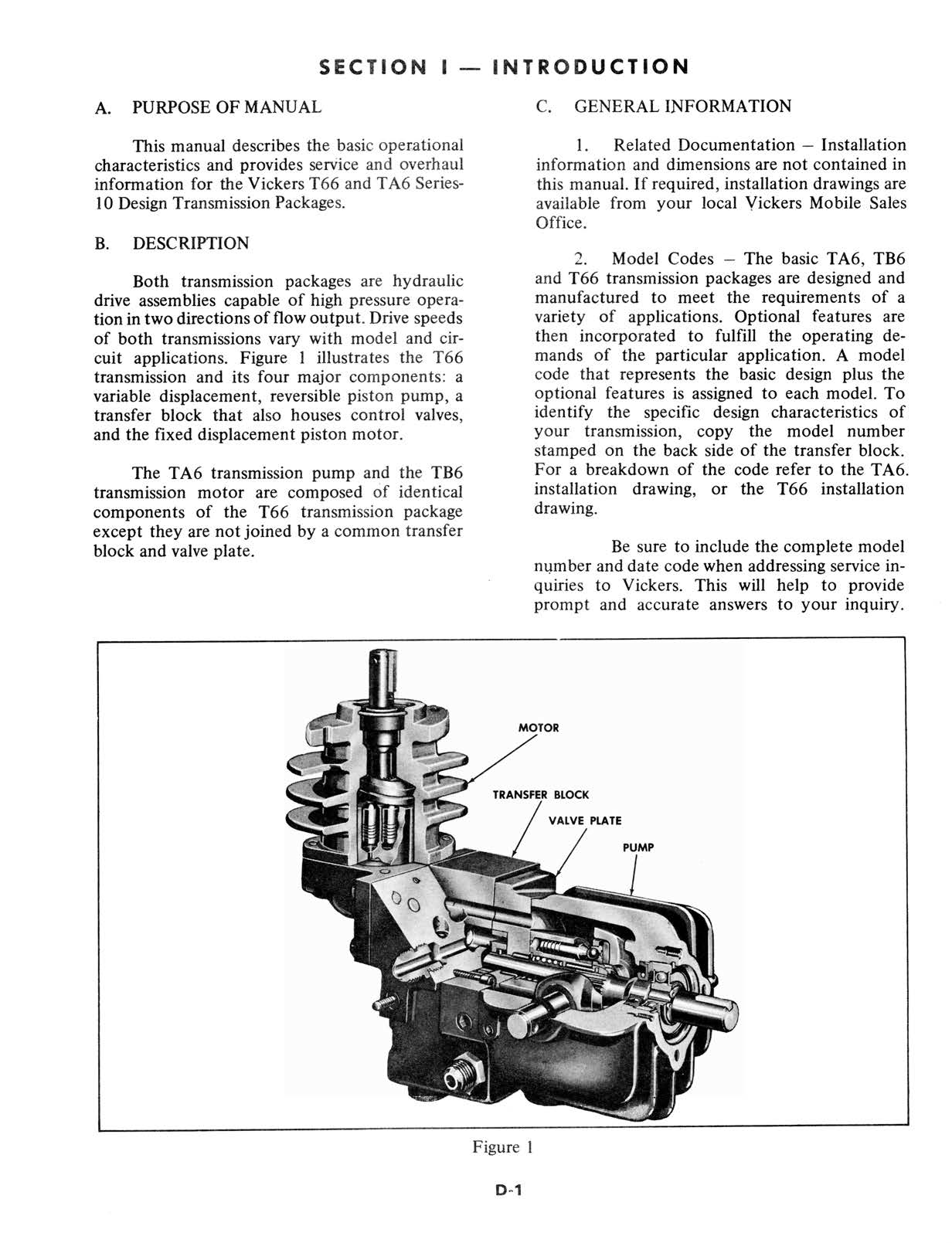

- Hydrostatic Drive Unit: Full overhaul coverage — disassembly of the motor, pump, valve plate and transfer block, inspection and repair, reassembly, start-up after repair, general maintenance, and transmission/system troubleshooting charts.

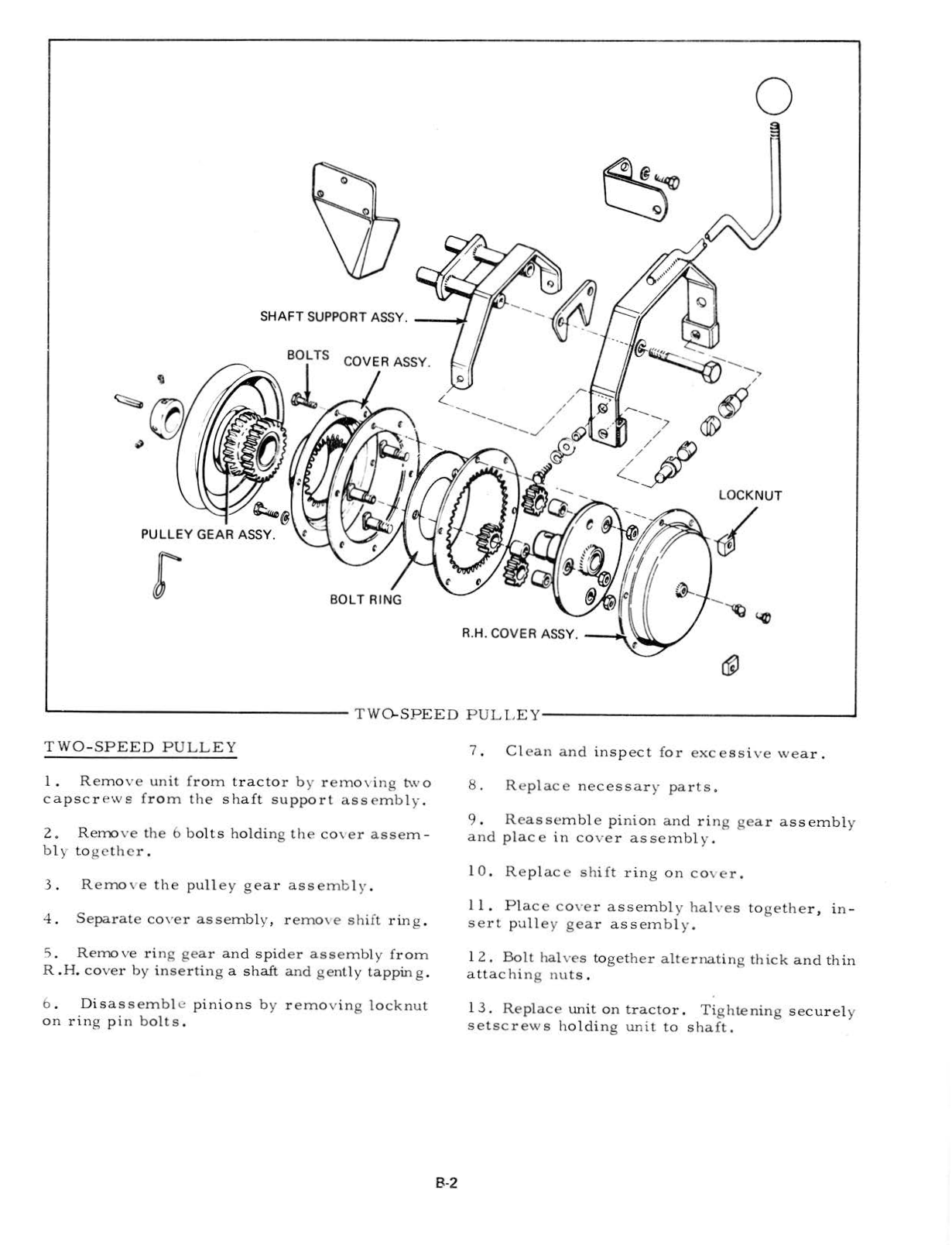

- Power Train: Bevel gear and differential service, three-speed transmission removal/disassembly/assembly/installation, hydrostatic transmission, B-207 & B-208 transaxle, B-206 tractor section, and two-speed and variable-speed pulley service.
- Wiring Diagrams: Lighting circuits, starter & generator, and model-specific diagrams covering the B-1, B-10, Big Ten, B-12, B-110, B-112, HB-112, B-206 through B-212 and HB-212.
- B-Series Attachments: Service coverage for the Center PTO, Hi-Low range, rotary / reel / sickle-bar mowers, rotary tiller, snow thrower, grader blades, hitch adapter, 10″ plow, disc harrow, spring-tooth harrow & cultivator, lawn roller, mobile generator, summer cab, vacuum collector & trailer frame, fork lift & loader, and the L-12 loader.
Why This Manual Matters
- One manual, the whole line. Instead of chasing down separate references for each model, this covers everything from the 1961 B-1 to the B-200 series in a single volume — useful whether you own one B-Series or a fleet of them.
- Serial-number-correct procedures. The B-10 alone splits into S/N 15001–31227 and S/N 50001-and-up coverage, with the Big Ten handled separately. The manual keeps those running changes straight so you follow the right steps and identify the right parts for your exact machine.
- Hydrostatic drive detail that's hard to find. Bench-level overhaul of the hydrostatic unit — pump, motor, valve plate, transfer block — is documented step by step, which is exactly the work most owners can't source elsewhere.
- Attachments in the same book. Mowers, tillers, snow throwers, the L-12 loader and more are serviced in the same volume, so seasonal attachment work doesn't send you looking for another manual.
- Electrical troubleshooting. Model-specific wiring diagrams make it possible to trace lighting, starter and generator faults instead of guessing.
Manual code: 9003453
