Allis Chalmers Model 900 Series Lawn & Garden Tractors Operator's Manual
Allis Chalmers 900 Series Lawn & Garden Tractors Operator's Manual
This is the Operator's Manual for the Allis-Chalmers 900 Series lawn and garden tractors, covering the 912, 914, 916, 917, and 919 models in six-speed, shuttle, and hydrostatic transmission configurations across 56 pages. Includes Kohler K-series and KT-series engine information for K301, K321, K341, KT17, and KT19 engines. This is the original factory document Allis-Chalmers issued to 900-series owners and is available as an instant digital download.
About the Allis-Chalmers 900 Series
The Allis-Chalmers 900 Series were the flagship lawn and garden tractors in AC's consumer lineup through the mid-to-late 1970s, designed for homeowners and small-acreage operators who wanted genuine tractor capability in a compact, maneuverable machine. The series ranged from the 912 at 12 horsepower through the 919 at 19 horsepower, covering a wide performance range within a common chassis design. Three transmission configurations were offered: the six-speed manual, the shuttle transmission for easier forward-reverse changes, and the hydrostatic transmission preferred by operators doing close-quarters work or frequent mowing-pattern direction changes. All models used Kohler engines — the single-cylinder cast-iron K-series (K301, K321, K341) on the lower-horsepower models and the twin-cylinder KT-series (KT17, KT19) on the higher-horsepower hydrostatic variants. Kohler's K-series engines were known for their durability and rebuiltability, and many 900-series tractors with K-series engines have remained in service for decades with proper maintenance. The 900 Series carried Allis-Chalmers' orange-and-cream color scheme and the AC brand's association with agricultural reliability into the garden tractor market at a time when consumer lawn tractors were rapidly improving in quality and capability.
What This Manual Covers
This 56-page manual covers all 900-series models across all three transmission types, with separate operating and service sections where procedures differ by transmission configuration. Key sections include:
- Safety, Decals & Specifications — safety rules; decal identification; factory specifications for all 900-series models
- Operation — starting procedures; hydrostatic controls; shuttle controls; six-speed controls; starting and stopping for each transmission type; operation on slopes
- Normal Care — normal care schedule; lubrication; fluid levels and tire pressure; battery and cables; wheel bearings; transmission fluid check and change; planetary gear assembly repacking (shuttle); storage and starting after storage; blade maintenance
- Service & Adjustments — battery service; drive belt replacement (shuttle, hydrostatic, and six-speed separately); mower belt replacement; seat adjustment; PTO clutch adjustments; hydrostatic, shuttle, and six-speed transmission adjustments

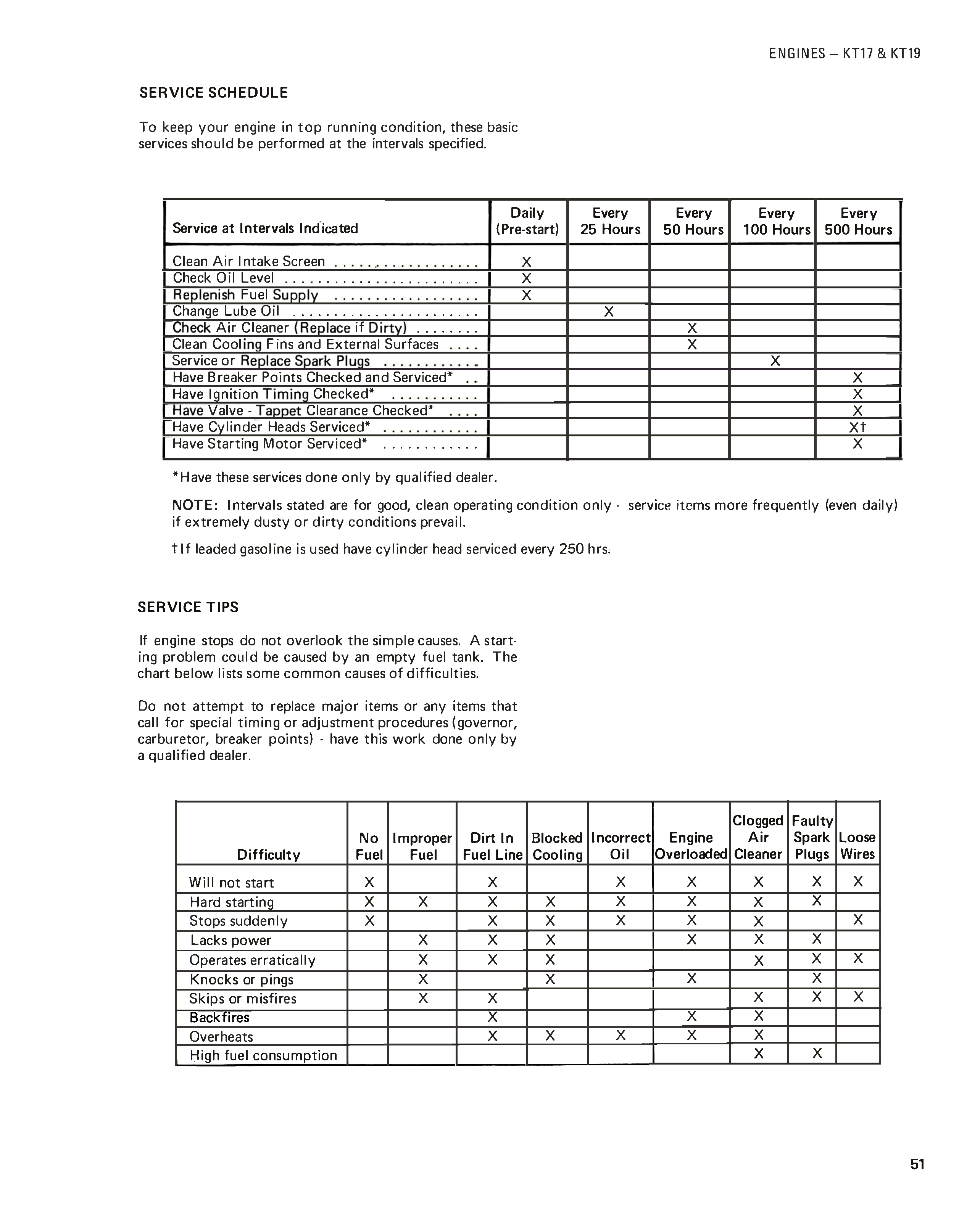

- Additional Information — mower installation and removal; mower leveling procedure; tractor and mower identification; wiring diagram; Kohler engine information (K301, K321, K341, KT17, KT19)
Why This Manual Matters
- All three transmission types documented: Six-speed, shuttle, and hydrostatic operating and adjustment procedures are covered in a single manual — including the separate drive belt replacement procedures for each transmission type and the specific transmission fluid specification and change interval for the hydrostatic models
- Kohler engine coverage for five engine models: K301, K321, K341, KT17, and KT19 engine information is included — covering the full range of Kohler engines used across the 900-series lineup without requiring a separate Kohler engine manual for routine reference
- Planetary gear assembly repacking (shuttle): The shuttle transmission's planetary gear assembly repacking procedure is documented here — a service task needed on aging shuttle-transmission tractors where the planetary seals have deteriorated and transmission fluid is leaking or contaminating the belt drive system
- Mower installation, removal, and leveling: Mid-mount mower installation, removal, and the leveling procedure for consistent cut quality are documented — the service tasks most frequently needed at the beginning and end of each mowing season and when the deck has been removed for blade or belt service
- PTO clutch adjustment: The electric PTO clutch adjustment is documented with the factory air gap specification — the adjustment that determines whether the PTO engages cleanly or slips and generates heat, and the first thing to check when the mower or tiller begins to disengage under load
- Original factory content: This is the manual Allis-Chalmers issued to 900-series owners, carrying manual code 1669625
Manual Code: 1669625
