Allis Chalmers Models 608 - 610 Series Lawn & Garden Tractors Operator's Manual
Allis-Chalmers 608 & 610 Series Lawn & Garden Tractors Operator's Manual
This is the Operator's Manual for the Allis-Chalmers 608 and 610 Series lawn and garden tractors and their compatible attachments — including the 36" and 42" rotary mowers, vacuum collector, 30" rotary tiller, and 32" rotary snow thrower — across 92 pages. Also includes Briggs & Stratton engine operating and maintenance information for models 190700–190707 and 191700–191707. This is the original factory document Allis-Chalmers issued to 608 and 610 owners and is available as an instant digital download.
About the Allis-Chalmers 608 and 610
The Allis-Chalmers 608 and 610 were early garden tractors from AC's lawn and garden lineup, produced in the late 1960s and into the 1970s as Allis-Chalmers expanded its product range beyond field equipment into the growing consumer and small-farm garden tractor market. The 608 was an 8-horsepower model and the 610 a 10-horsepower model, both powered by Briggs & Stratton engines from the 190000 and 191000 series — horizontal-shaft single-cylinder cast-iron engines that were known for their durability and straightforward serviceability. Both models used a belt-drive PTO system to power mid-mount mower decks and rear-mounted implements, with a manual clutch/brake pedal arrangement typical of garden tractors of this era. The 608 was fitted with a 36" mower deck and the 610 with a 42" deck, matching the power output of each model to its implement size. These were working garden tractors designed for small acreage mowing, tilling, and year-round use — not simply riding mowers — and the 92-page depth of this manual reflects the genuine range of operations and adjustments they supported.
What This Manual Covers
This 92-page manual covers both tractor models and all four major attachments, with the Briggs & Stratton engine documentation included. Key sections include:
- Tractor — safety precautions; safety and operational decals; general information; specifications; controls; lubrication and service (engine oil, transmission, grease fittings, air cleaner, cooling, spark plug, tire pressure, battery); wiring diagram; operation; adjustments (clutch/brake, belt stop, PTO clutch, carburetor, seat)
- Rotary Mower — operation; mowing patterns and tips; lubrication and blade/belt replacement; leveling; cutting height adjustment; attaching and removing; setup instructions for 36" mower (608) and 42" mower (610) separately
- Vacuum Collector — specifications; before operating; safety; starting; vacuum collecting; maintenance schedule; storage; service tips; adapter installation and removal; high-capacity cart cover; dumping cart; roving nozzle
- 30" Rotary Tiller — specifications; safety; general information; lubrication; belt tension, belt guide, and drive chain adjustments; setup and preparation
- 32" Rotary Snow Thrower — specifications; attaching to tractor; safety; operation and adjustments (spout deflector, skid shoe, snow removal patterns); lubrication and service; service tips; accessories; setup instructions
- Briggs & Stratton Engine — operating and maintenance information for models 190700–190707 and 191700–191707
Why This Manual Matters
- Briggs & Stratton engine documentation included: The 190000 and 191000 series engine operating and maintenance information is included in this manual — covering the fuel, oil, carburetor, and ignition service information for the engine that powers both tractors; operators don't need a separate engine manual for routine service
- Separate mower setup for 608 and 610: The 36" and 42" mower setup instructions are documented separately for each model — important because the belt routing, deck height adjustment, and PTO engagement procedures differ between the two deck sizes
- Snow thrower setup and service: The 32" snow thrower attachment and removal procedures, chute deflector adjustment, skid shoe adjustment, and drive belt service are all documented — the reference most critical at the beginning of snow season when the thrower is being reinstalled after summer storage

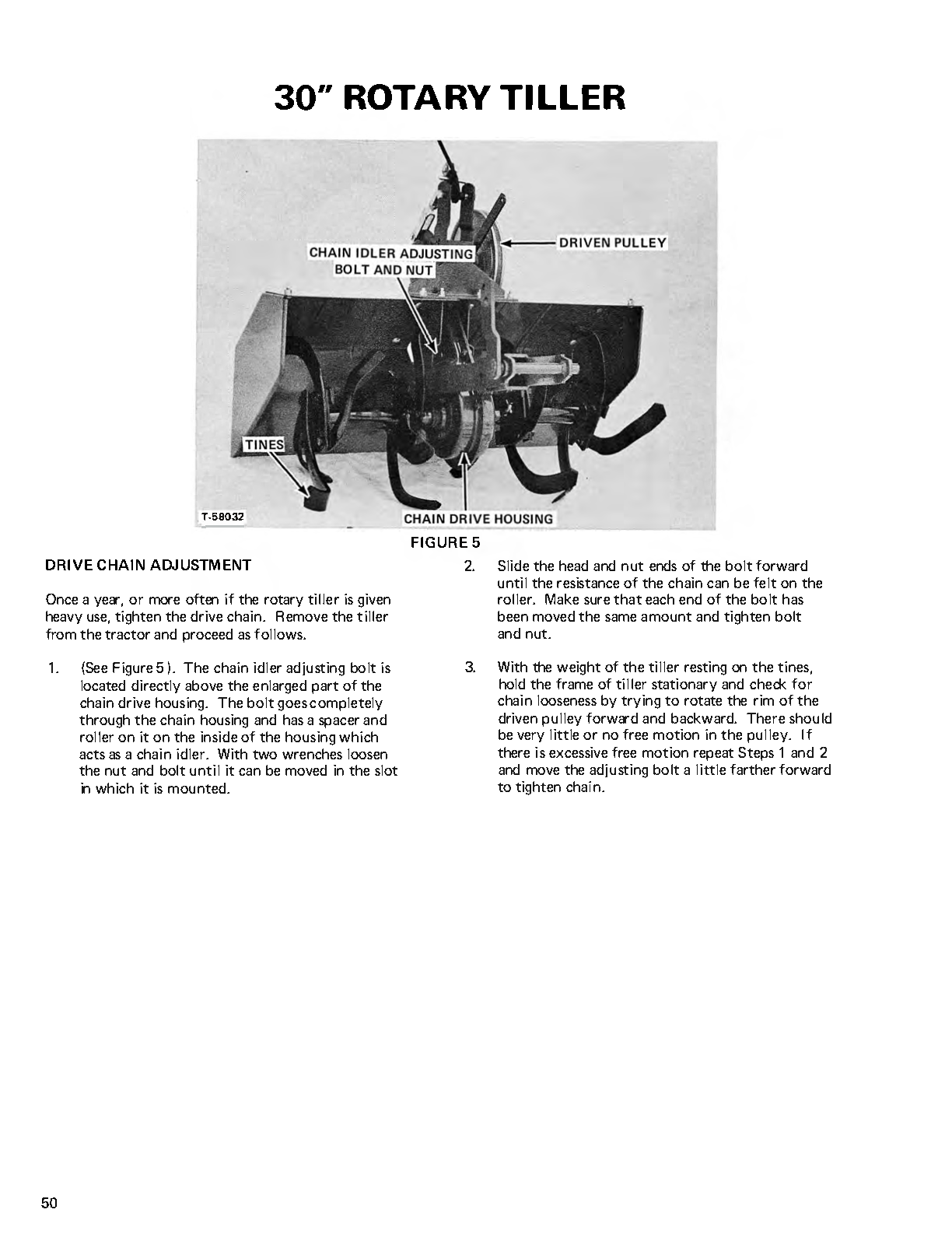

- Tiller drive chain and belt service: The 30" tiller's belt tension, belt guide, and drive chain adjustment procedures are documented — the service points most commonly needed after a season of use when the tiller starts slipping or losing tilling depth
- PTO clutch and brake adjustment: The PTO clutch and front PTO safety start switch adjustments are documented with the factory specifications — adjustments that directly affect whether implements engage safely and whether the safety interlock functions correctly
- Original factory content: This is the manual Allis-Chalmers issued to 608 and 610 owners, carrying manual code 1669625
Manual Code: 1669625
