Ford 1920 & 2120 Tractor Repair Manual Bundle
712 pages – digital download | 4-manual set
This downloadable Ford 1920 2120 tractor repair manual bundle is the most complete factory service reference available for these models — a four-manual set totaling 712 pages covering complete mechanical repair, Electronic Hydraulic Shuttle Shift (EHSS) transmission service and diagnostics, and late-production New Holland-badged updates. The Ford 1920 and 2120 were Shibaura-built compact tractors produced from the late 1980s into the 1990s, offered in the 32–40 horsepower range and available with multiple transmission options including the electronically controlled shuttle shift system introduced on later 2120 units. These tractors were sold under both the Ford and New Holland names as the Ford-New Holland brand transition occurred, and this bundle covers both eras. If you are servicing, rebuilding, or diagnosing a 1920 or 2120, this is the factory documentation set you need.
What's Included in This Bundle
Manual 1 — Ford 1920 & 2120 Repair Manual (508 pages)
Manual Code: 40192020 SE 4603
The primary factory repair manual covering all major mechanical systems on both models, organized in 12 parts:
- Part 1: Engine systems
- Part 2: Fuel system

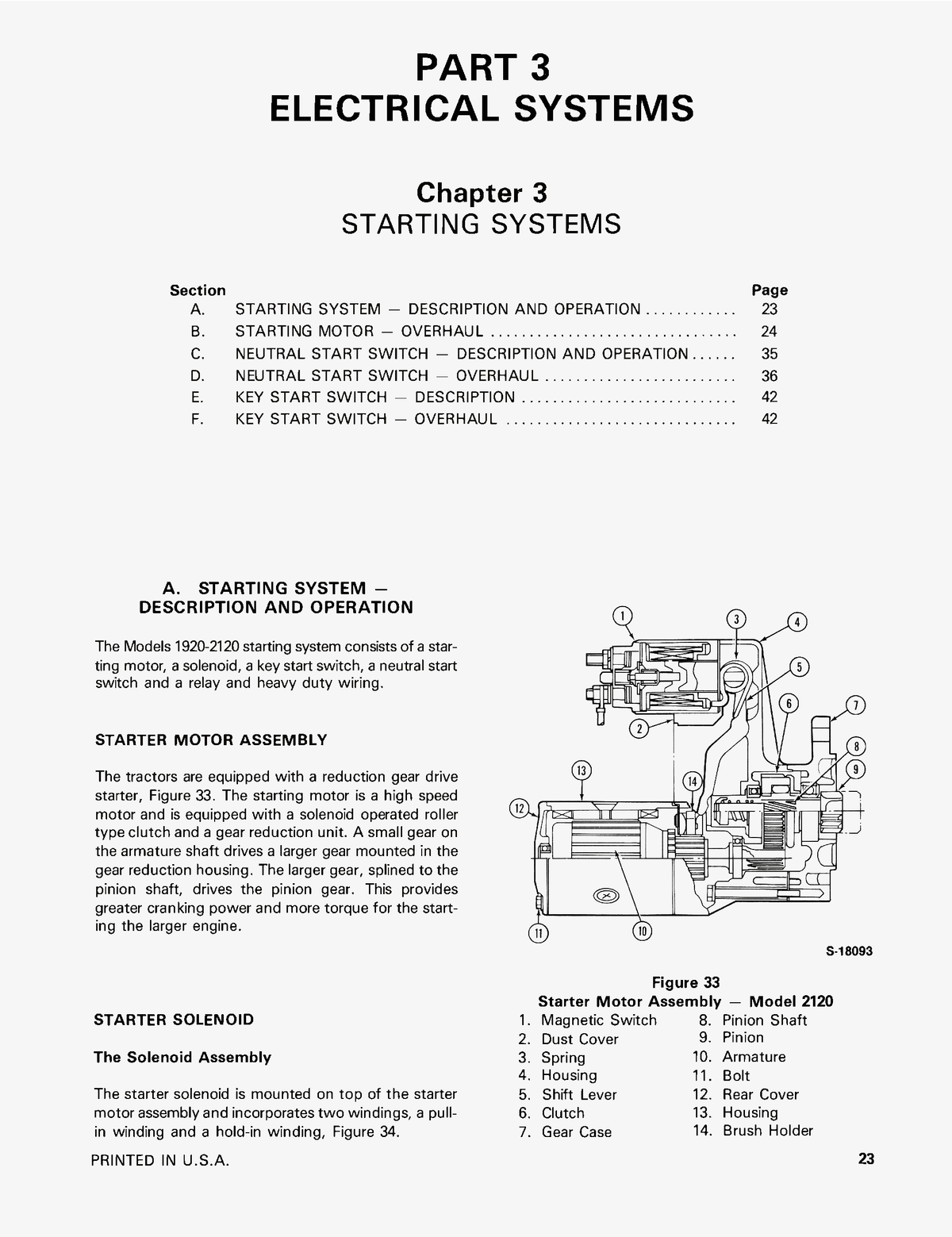

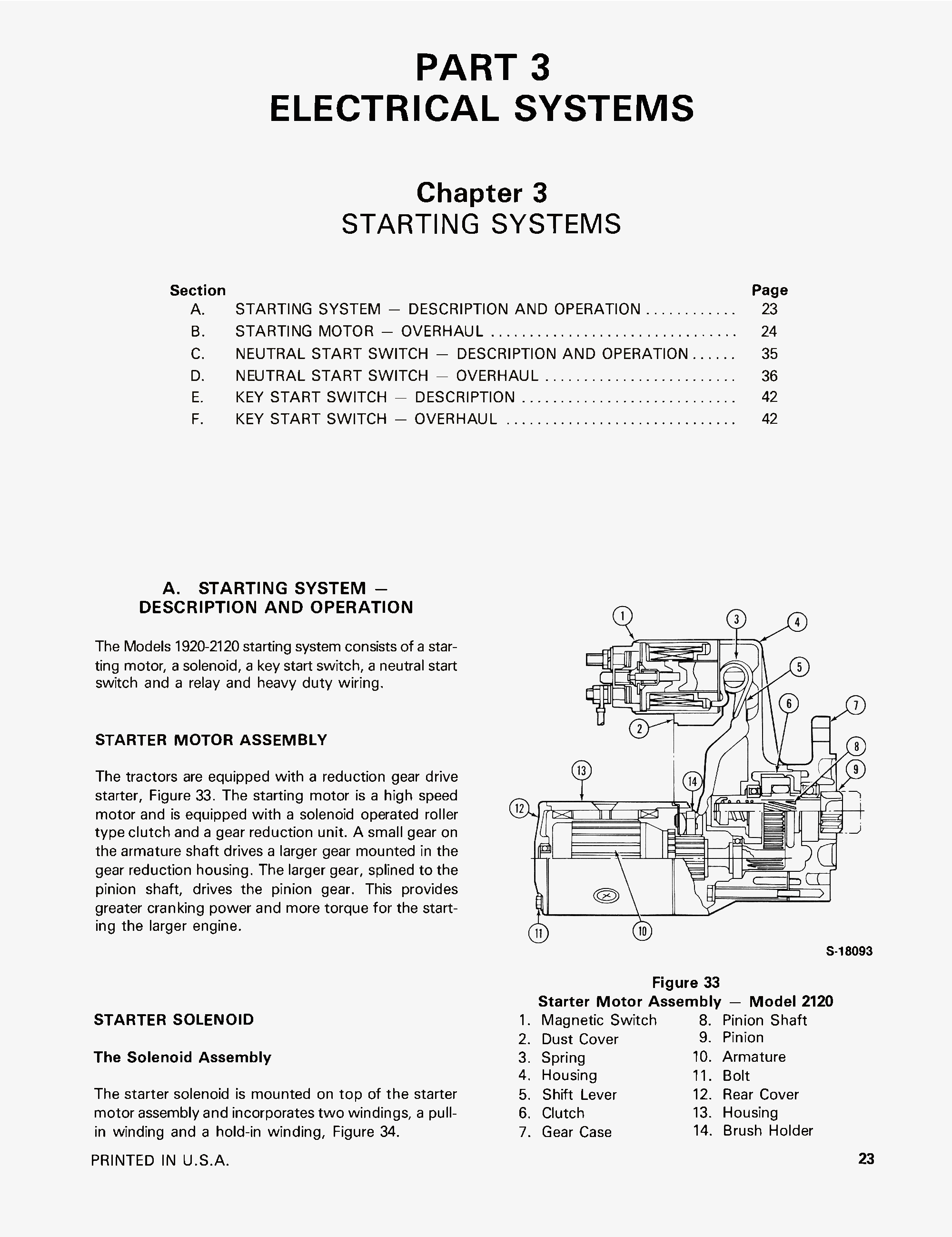

- Part 3: Electrical systems
- Part 4: Clutches

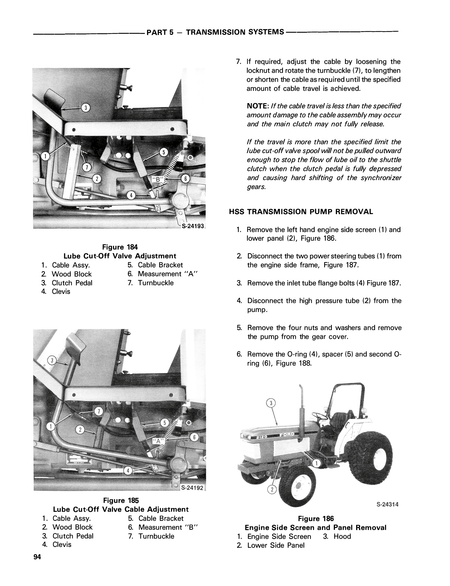

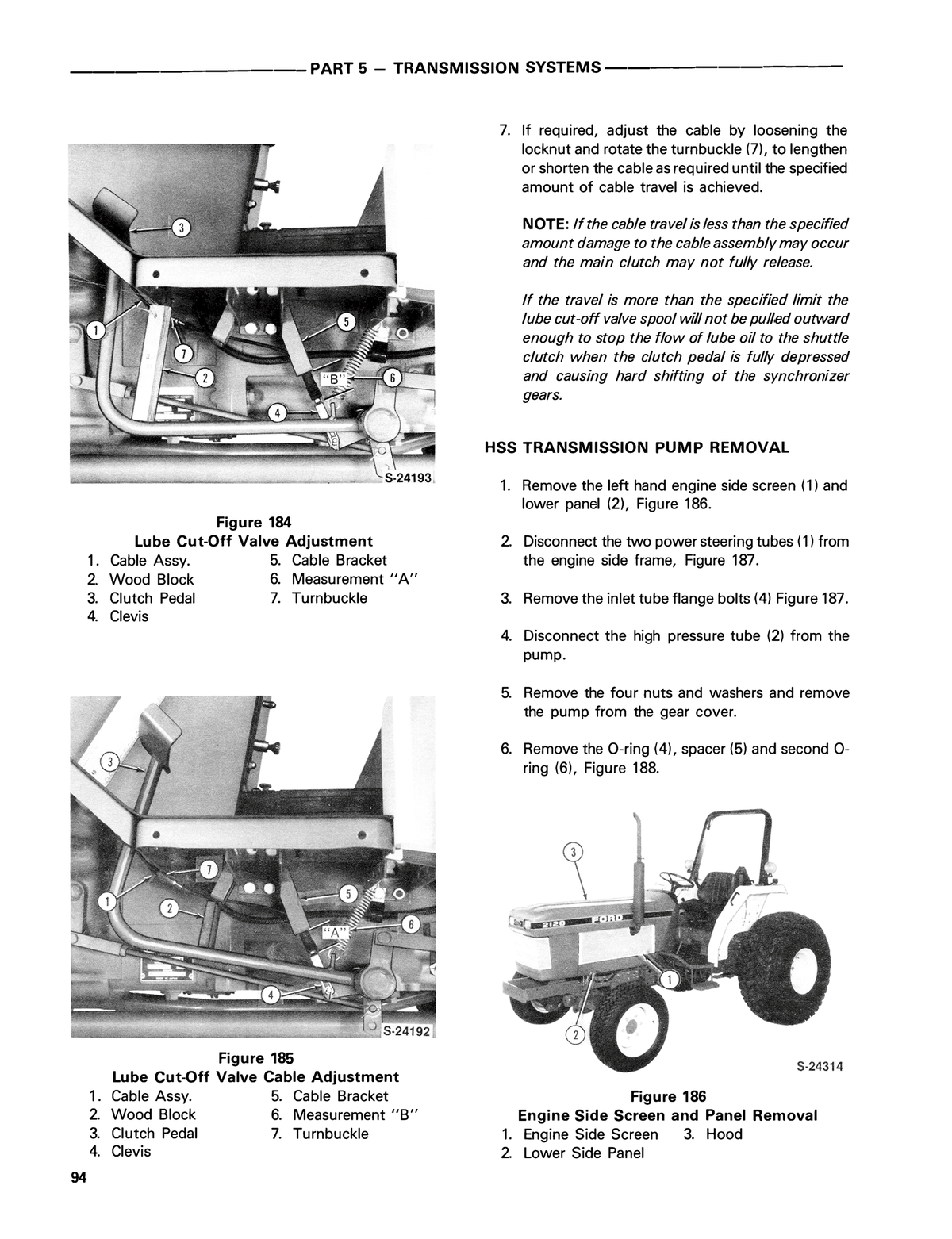

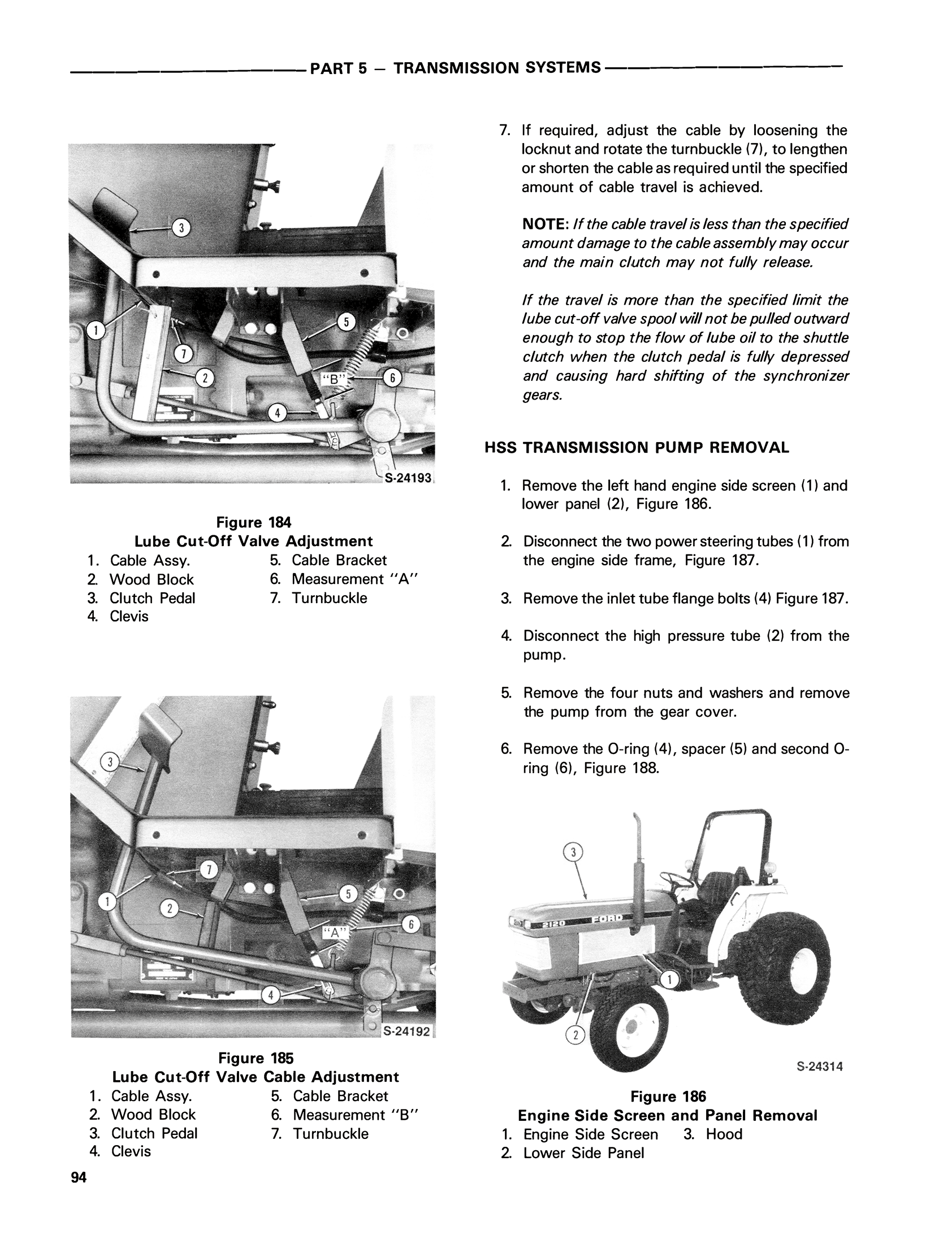

- Part 5: Transmission systems
- Part 6: Power take-off systems
- Part 7: Differential, rear axle, and brakes

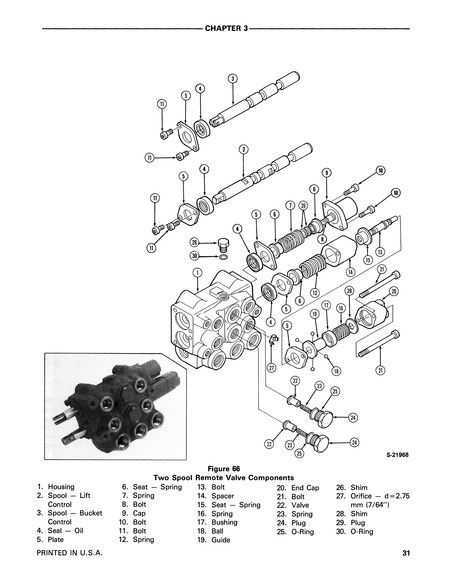

- Part 8: Hydraulic system
- Part 9: Steering system
- Part 10: Front axle and related parts
- Part 11: Wheels and tires
- Part 12: Separating the tractor — models 1920 and 2120
Manual 2 — EHSS Transmission Repair Supplement
Factory supplement to the main repair manual specifically covering the Electronic Hydraulic Shuttle Shift transmission on the Ford 2120, serial number UV25075 and above. Provides disassembly, inspection, and reassembly procedures for the EHSS unit that are not included in the base repair manual.
Manual 3 — Ford Tech-Com #9308: Model 2120 EHSS Transmission Operation and Testing
Ford's factory technical communication document covering the Electronic Hydraulic Shuttle Shift transmission in detail — how the system operates, electrical and hydraulic circuit operation, diagnostic procedures, and testing methods. This is the document technicians used to understand and diagnose EHSS faults at the dealer level, and it goes significantly deeper on system logic and testing than the repair supplement alone.
Manual 4 — New Holland 1920 & 2120 Repair Manual Supplement (Engine & Fuel Systems)
Factory repair supplement issued under the New Holland brand covering updated engine and fuel system service procedures for late-production units — Ford 1920 serial number UP43784 and above, Ford 2120 serial number UV32236 and above. Covers Part 1 (engine systems) and Part 2 (fuel systems) with any revised specifications and procedures applicable to these later serial ranges.
About the Ford 1920 and 2120
The Ford 1920 and 2120 were produced by Shibaura Industrial in Japan and represent some of the most capable compact tractors Ford offered during the late-production era before the full New Holland rebadging. The 1920 produced around 32 PTO horsepower and the 2120 around 40 PTO horsepower — both powered by Shibaura 3-cylinder diesels known for smoothness and longevity. The Electronic Hydraulic Shuttle Shift transmission introduced on later 2120 units was a significant advancement for a compact tractor of this class, allowing direction reversals without clutching through an electronically controlled hydraulic pack — a feature that dramatically improved productivity in loader work and repetitive back-and-forth applications. Because these tractors were sold across two brand names and went through multiple production updates, having all four factory documents in a single bundle is the only way to ensure full coverage regardless of your specific serial number.
Why This Manual Bundle Is Essential
- The 508-page primary repair manual covers all 12 mechanical systems in factory service depth — far beyond what any aftermarket or generic compact tractor guide provides
- Includes both the EHSS repair supplement and the Tech-Com diagnostic document — the two resources needed to correctly service and diagnose the electronic shuttle shift system, which is commonly misdiagnosed without proper documentation
- The New Holland supplement covers later serial numbers with updated engine and fuel system procedures — critical for owners of post-transition units where the base Ford manual may not reflect the correct specifications
- Indispensable for independent mechanics, dealers, and owners who need complete factory coverage across all production variants of the 1920 and 2120
Format
- Type: Repair Manual Bundle (4 factory documents)
- Total Pages: 712
- Delivery: Instant digital download (PDF)
- Printable: Yes – print the entire set or individual sections as needed
