Ford New Holland 1715 Tractor Operator's Manual
This operator's manual is the factory operation and maintenance reference for the Ford 1715 compact diesel tractor, running roughly 68 pages of controls, operating procedures, lubrication and maintenance schedules, and specifications. It's the book that came with the machine: how to read the instrument panel and Proof-Meter, how to start and operate the diesel engine, how to run the transmission, four-wheel drive and PTO, and how to keep the tractor serviced between dealer visits. Originally published by Ford New Holland and delivered here as an instant PDF download you can read on any device or print for the cab.
Models covered: Ford 1715
About the Ford 1715
The 1715 is a compact diesel tractor built in Japan for Ford New Holland and sold through the Ford New Holland dealer network. As the manual documents, it uses a diesel engine with a glow-plug cold-start aid, a range-type geared transmission with high, middle, low and creeper ranges, an optional four-wheel-drive front axle with connect/disconnect, and a hydraulic three-point lift system. A Rollover Protective Structure (ROPS) and seat belts were standard equipment at time of factory assembly.
These small Ford diesels remain in steady use on smallholdings, properties and turf work, and a great many are still earning their keep. That's exactly why the original owner's book still matters: it carries the starting interlocks, service intervals, tire pressures, weighting guidance and torque figures specific to this tractor — the details generic guides don't carry.
What This Manual Covers
- International symbols: Reference chart explaining the symbols used on the tractor's instruments and controls.
- Safety precautions: Operating, servicing, driving, PTO, diesel fuel and ROPS safety guidance.
- Controls and instruments: Seat, seat belt and ROPS, instrument panel, key switch and warning lights, fuel gauge and shutoff valve, Proof-Meter, throttle controls, brake controls, differential lock, transmission and PTO controls, and hydraulic lift system controls.

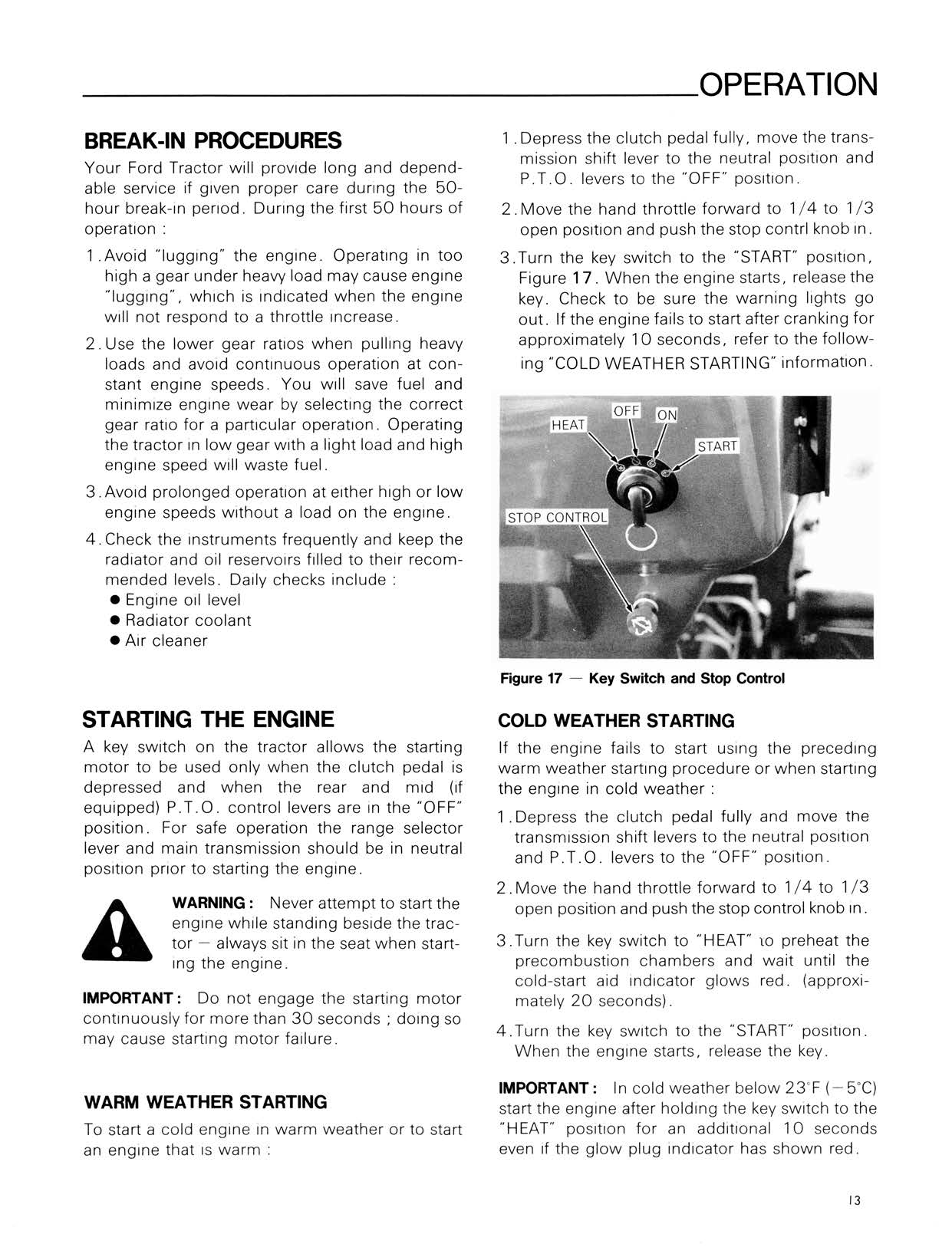

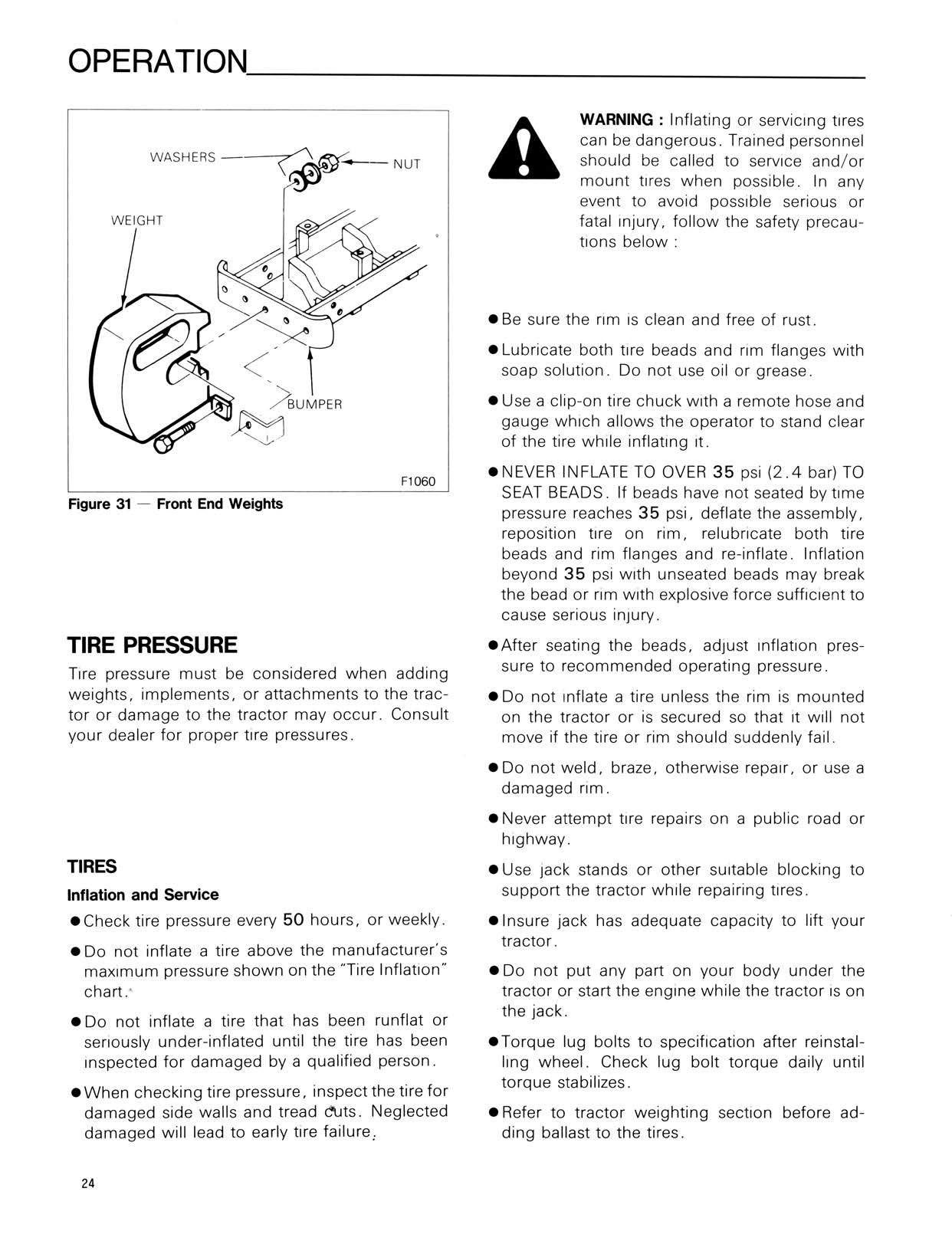

- Operation: Break-in procedures, starting and stopping the engine, operating the transmission, four-wheel drive and PTO, towing the tractor, differential lock, hydraulic lift, driving, wheel tread settings, tractor weighting, and tire pressures.
- Lubrication and maintenance: Lubrication and maintenance chart for two-wheel and four-wheel drive, fuel and lubricants, fuel and lubricant service procedures, general maintenance, tractor storage, and a general torque specification table.
- Specifications: Tractor specifications, including ground speed data.
- Safety and instruction decals: Illustrated listing of the safety decals and instruction decals fitted to the tractor.
- Predelivery and 50-hour service: Predelivery service record pages and the factory-recommended 50-hour service.
- Owner assistance: Guidance on working with your Ford New Holland dealer.
Why This Manual Matters
- The book that shipped with the tractor. It documents day-to-day operation and maintenance as the factory intended — the reference an owner reaches for first.
- Diesel-specific starting and safety guidance. Glow-plug cold-start operation, fuel shutoff valve, warning-light checks and diesel fuel handling are all spelled out for this machine.
- Correct service intervals and reference data. The lubrication and maintenance chart, tire pressures, weighting guidance and general torque specification table let you service to spec rather than guess.
- Transmission, 4WD and PTO operation. Range and creeper selection, four-wheel-drive connect/disconnect, and PTO speed limits (the manual notes PTO-driven equipment should not exceed 2419 rpm) are covered as printed.
- Predelivery and 50-hour service pages. Includes the dealer/owner predelivery record and the factory-recommended 50-hour service — useful documentation for a machine's service history.
- Factory literature is increasingly hard to find. This searchable, restored PDF puts the original operator's manual back in your hands.
Manual Code: 42171510
