International 430 and 440 Balers - Operator's Manual

  • $1899


International 430 and 440 Balers Operator's Manual

64 Pages

This Manual is available in: Digital Download

CONTENTS

CARE OF YOUR BALER

  • Bale Chamber and Plunger
  • Knotter Adjustment
  • Knotter Nomenclature
  • Knotter Operation
  • Knotter Position
  • Metering Wheel Adjustment
  • Needle Clearance Over Stripper Fingers
  • Needle Height (Twine Balers)
  • Needle Height (Wire Baler)
  • Needle Replacement (Twine Balers)
  • Needle Replacement (Wire Baler)
  • Pickup and Feeder
  • Pickup Balance Spring
  • Pickup Drive
  • Servicing Knotter Discs and Knife

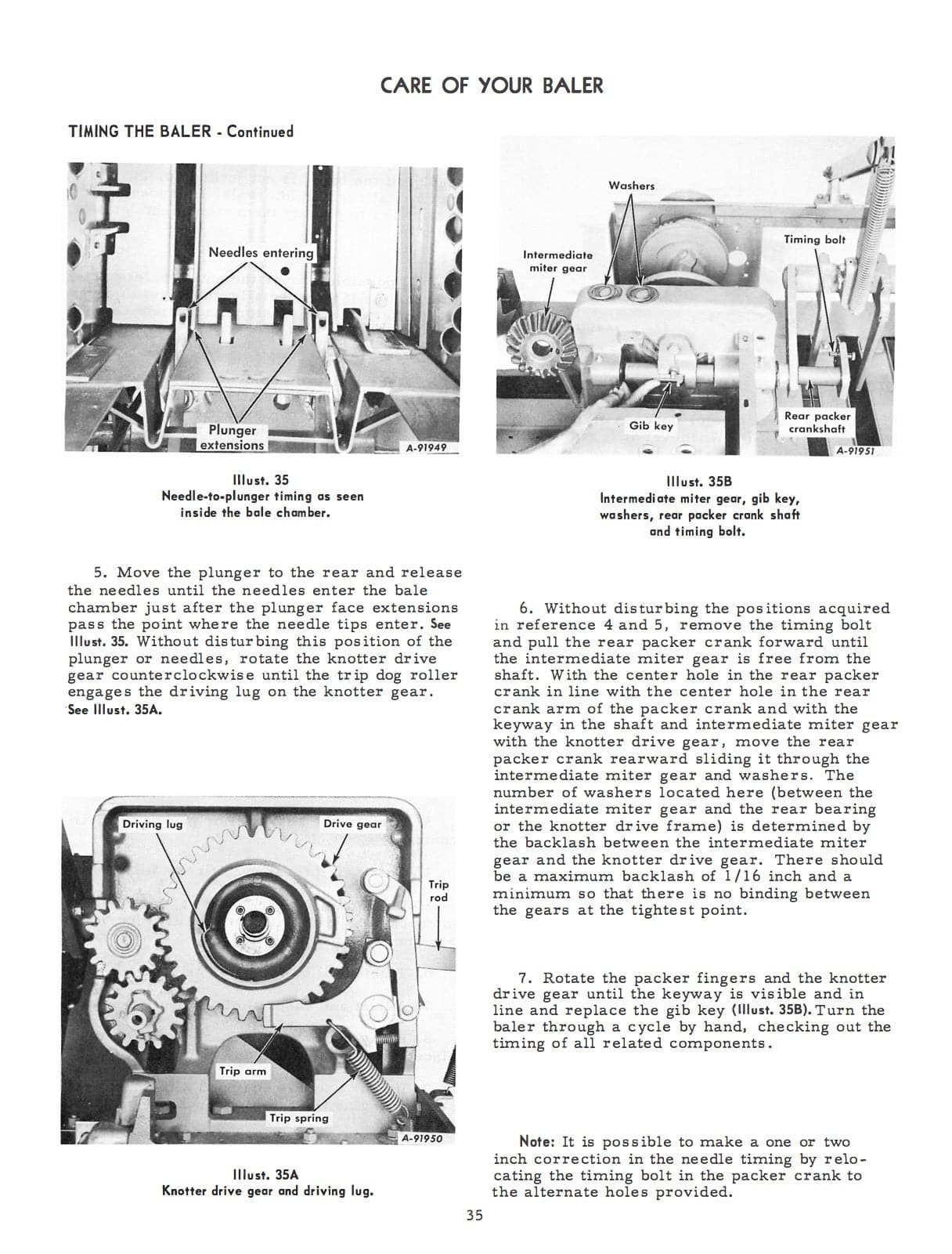

  • Timing the Baler
  • Wire Disk
  • Wire Stripper

LUBRICATION

  • Automatic Lubrication System (Special)

OPERATION OF YOUR BALER

  • Bale Chamber Extension
  • Bale Chamber Extension
  • Bale Length
  • Bale Turner
  • Bale Weight
  • Hydraulic Bale Tension Device
  • Operating Speed
  • Operational Check
  • Packer Fingers
  • Pickup Cover
  • Pickup Feed Auger

REPARING YOUR BALER FOR WORK

  • Friction Drive
  • General

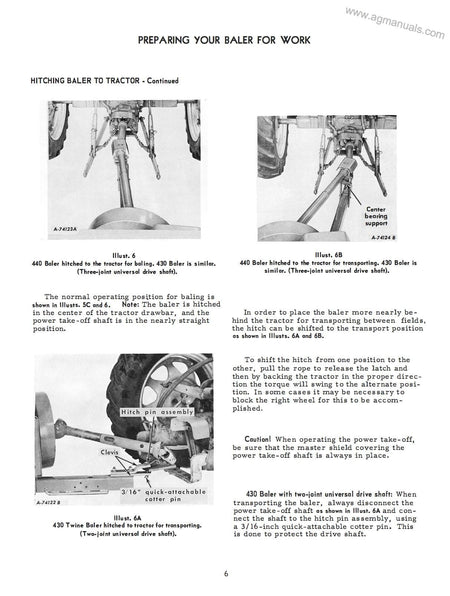

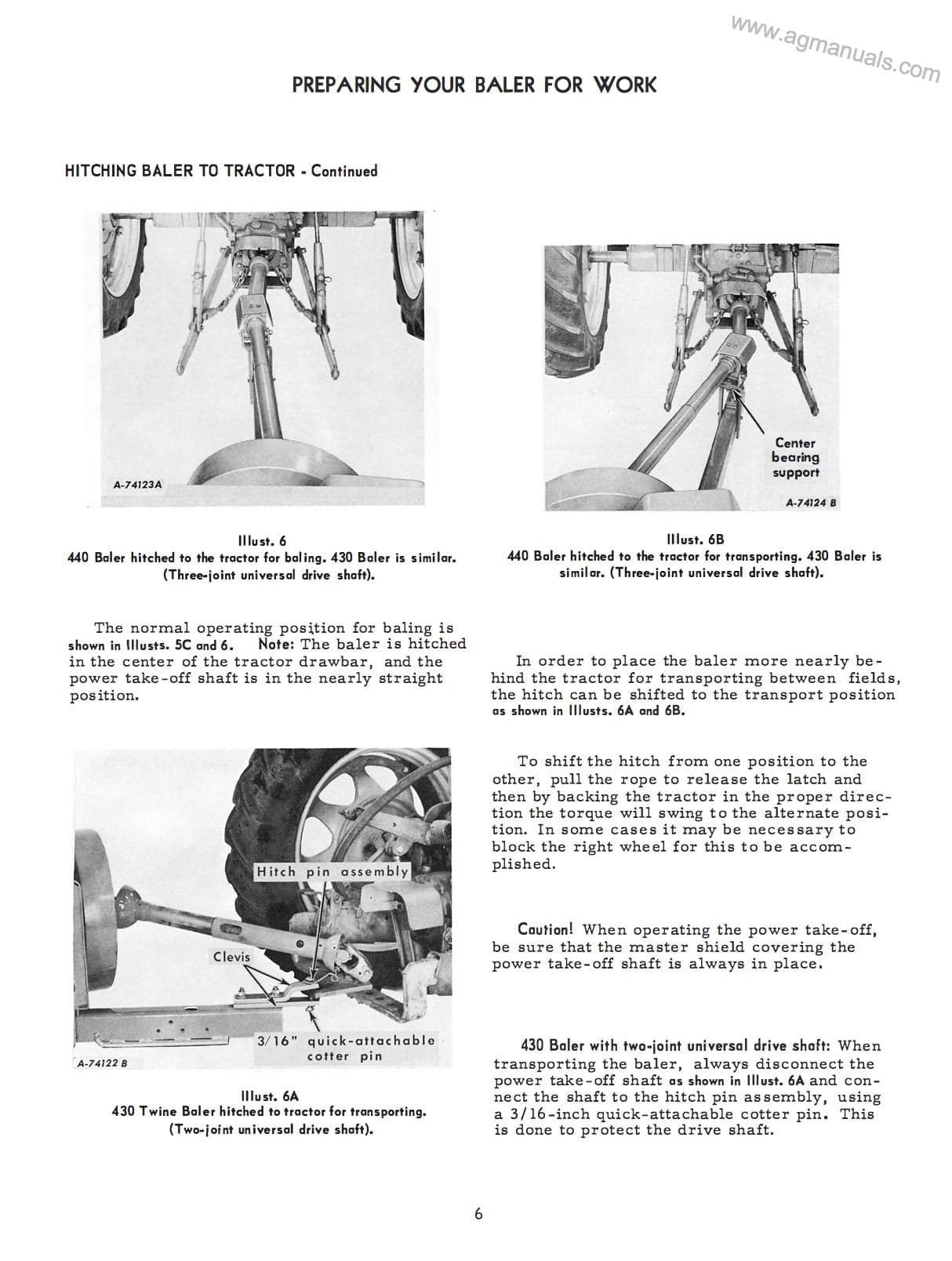

  • Hitching Baler to Tractor
  • Overrunning Clutch
  • Pickup Slip Clutch
  • Plunger Stop
  • Shear Bolts
  • Threading Twine Tying Mechanism
  • Threading Wire Twisting Mechanism

SAFETY SUGGESTIONS

SPECIAL EQUIPMENT

  • Auxiliary Needle Guard
  • Bale Counter
  • Bale Thrower
  • Dual Wheel (Left)
  • Dual Wheel (Right)
  • Engine Shutoff (Wire Baler)
  • Flywheel and Belt Shield (Wisconsin Engine)
  • Flywheel and Knuckle Shield
  • Knotter Cover
  • Lifting Jack
  • Pickup Wheel
  • Plunger Crank Shield
  • Safety Lighting
  • Trailer Hitch and Bale Chute
  • Wisconsin Engine

SPECIFICATIONS

STORAGE OF YOUR BALER

TROUBLE SHOOTING

  • Bale Not Uniform
  • Feeding Problems
  • Knotter Problems (Twine Baler)
  • Pickup Problems
  • Power Drive Problems
  • Shear Bolt Problems
  • Twine or Wire Breakage Problems
  • Twister Problems (Wire Baler)

Manual Code: 1 084 870
