International 510 Grain Drill Operator’s Manual
48 Pages
This Manual is available in: Digital Download (PDF)
This 48-page International 510 Grain Drill Operator’s Manual is the factory-issued guide covering operation, lubrication, calibration, safety procedures, and adjustment instructions for the International Harvester 510 grain drill.
Whether you’re setting seeding rates, adjusting fertilizer placement, servicing lift components, or troubleshooting uneven stands, this manual provides the step-by-step information needed to keep your drill planting accurately and consistently.
Coverage includes the grain metering system, fertilizer drive and feed components, and brome and grass seed attachments, along with lift systems, marker attachments, drive chains, and calibration charts.
Manual Contents
Safety & General Information
- Introduction

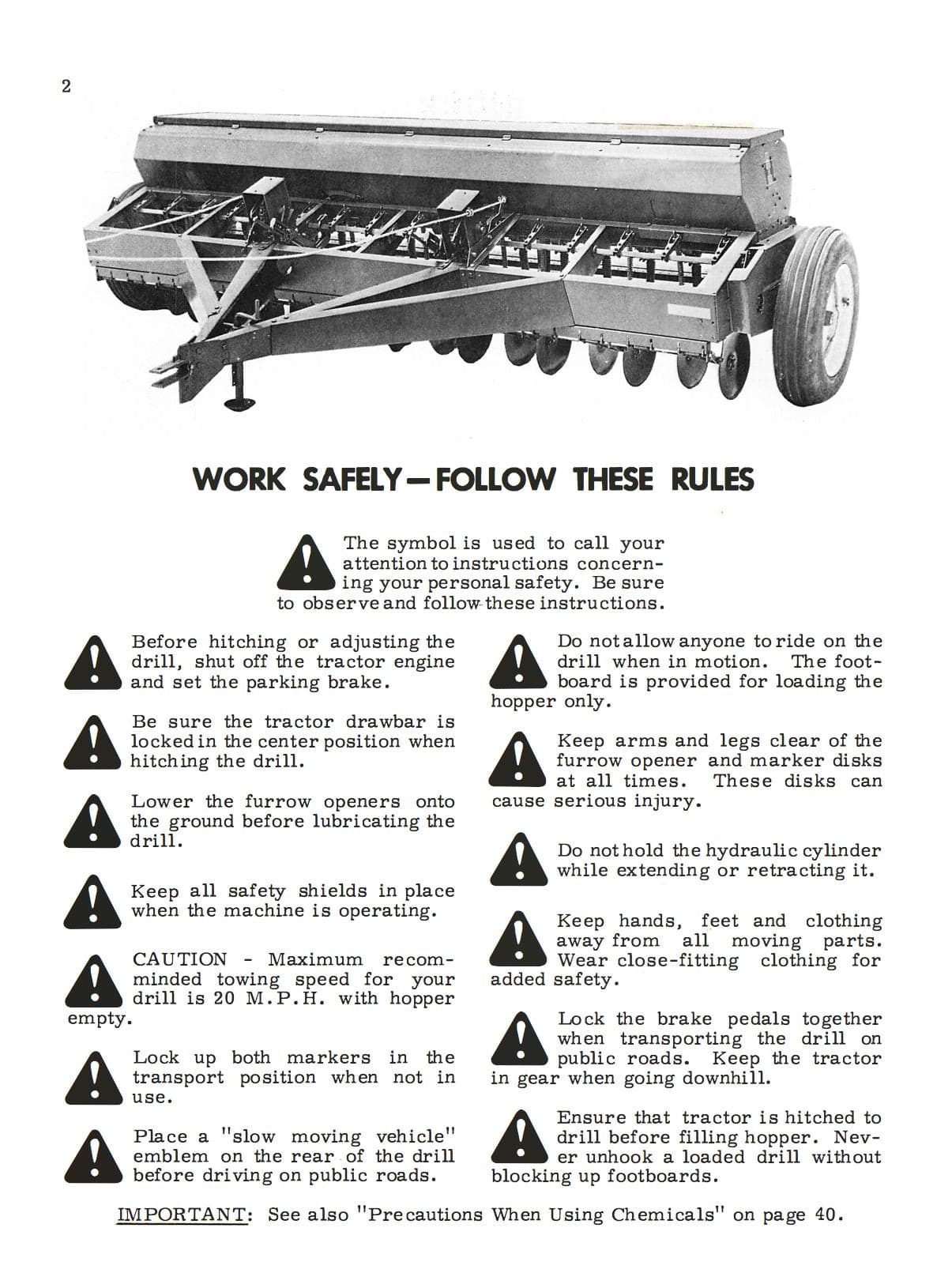

- Work safely – operating rules and precautions
- Hitching procedures
- Important “Don’ts” for safe operation
- Finding trouble (basic troubleshooting)
- Nut torquing chart
- Slow moving vehicle emblem guidance
- Tire inflation
Lift & Drive Systems
- Hand lift unit
- Power lift unit
- Remote control hydraulic system
- Main drive clutch
- Main and countershaft drive chains
- Disk marker attachment
Grain System & Seeding Adjustments
- Acreage counter
- Changing grain and fertilizer capacity
- Depth band attachment
- Furrow openers and opener arrangements
- Gang press wheels
- Grain drive chain
- Grain feed cup alignment
- Grain feed cup settings
- Grain feed cup windshield (special)
- Grain indicator plate
- Grain sowing charts
- Hectare conversion chart
- Procedure for testing the quantity of grain sown
- Row crops
- Seed firming wheels
- Seed treatment guidance
Fertilizer System
- Fertilizer drive chain
- Fertilizer feed wheel safety shear pins
- Fertilizer level indicator attachment
- Fertilizer quantity gate adjustment

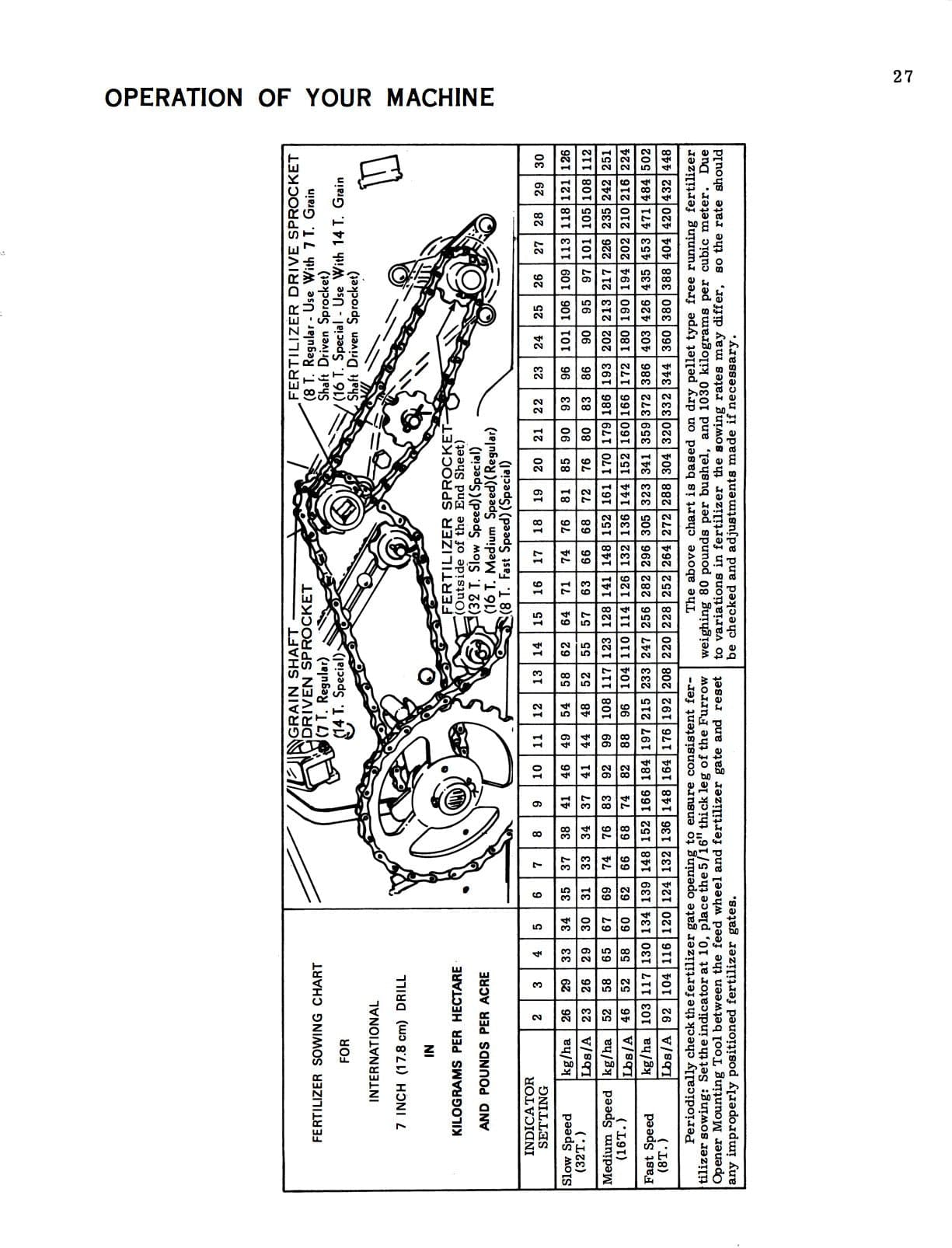

- Fertilizer sowing charts
- Separate placement fertilizer furrow opener adjustment
Brome & Grass Seed System
- Brome and grass seed sowing charts
- Brome seeding attachment
- Grass seeding attachments
Frequently Asked Questions
Does this manual include seeding charts?
Yes. It includes grain, fertilizer, and brome/grass seed sowing charts, along with calibration procedures.
Does it explain how to test seeding rates?
Yes. The manual includes procedures for testing and verifying the quantity of grain sown.
Is this a printed manual?
No. This is a digital PDF download delivered immediately after purchase.
Can I print the manual?
Yes. You may print pages or the entire manual for personal use.
Manual Code: 1 090 133 RS Rev. 1
