John Deere Hay Conditioner and No. 8 or 9 Mower Hook-Up and Drive - Operator's Manual

  • $1199


John Deere Hay Conditioner and No. 8 or 9 Mower Hook-Up and Drive Operator's Manual (FOR 540 RPM PTO)

42 Pages

This Manual is available in: Digital Download

CONTENTS

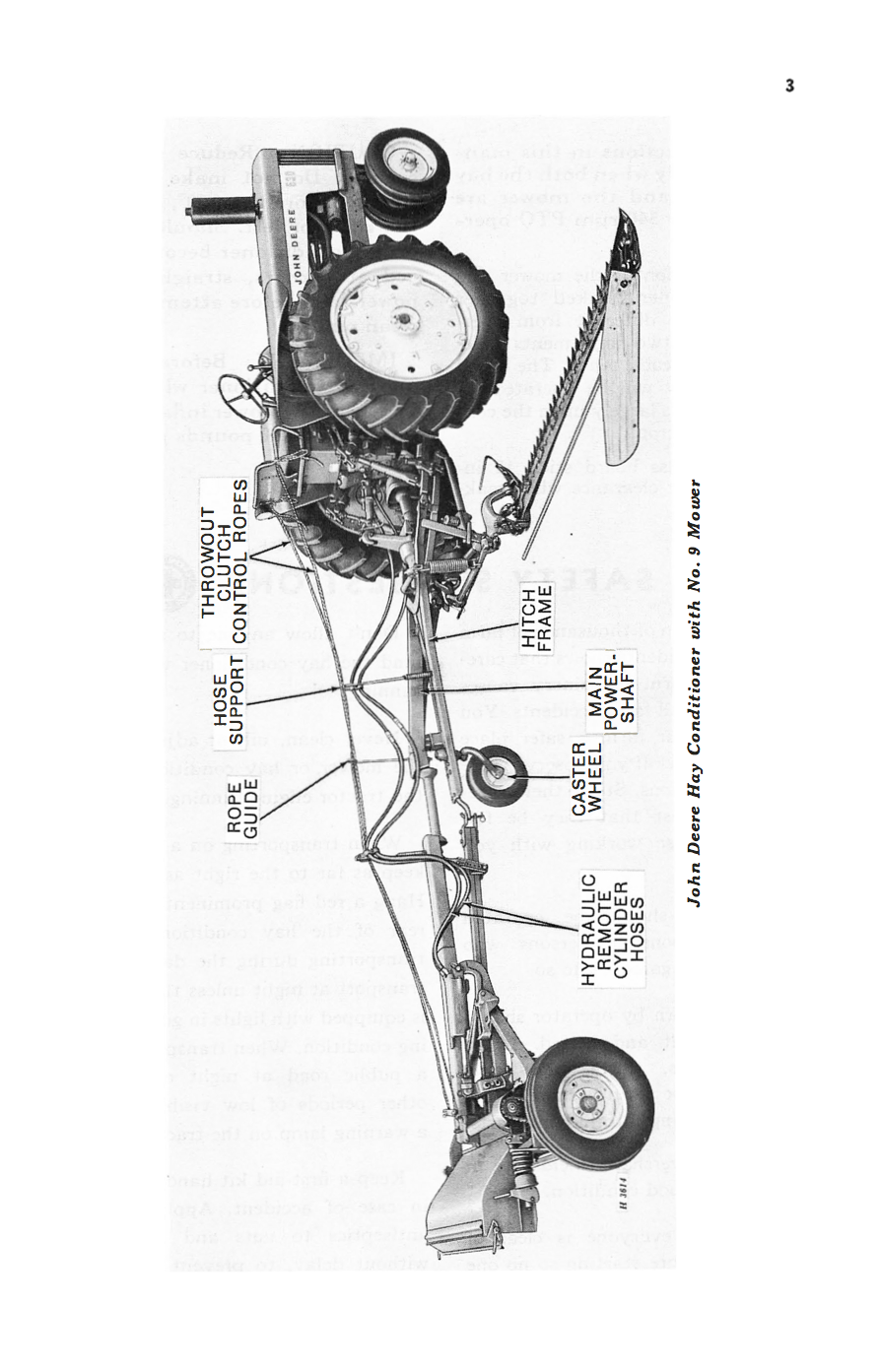

COMPLETE VIEWS

OPERATION

SAFETY SUGGESTIONS

LUBRICATION

ADJUSTMENTS AND SERVICE

  • Care of Pneumatic Tires

ASSEMBLY

  • Shipping Packages
  • Attaching to No. 8 or No. 8W Mowers
  • Tractor Hookup Shipping Packages-No. 8 or No. 8W Mowers
  • Attaching to No. 9 or No. 9W Mowers
  • Tractor Hookup Shipping Packages-No. 9 or No. 9W Mowers

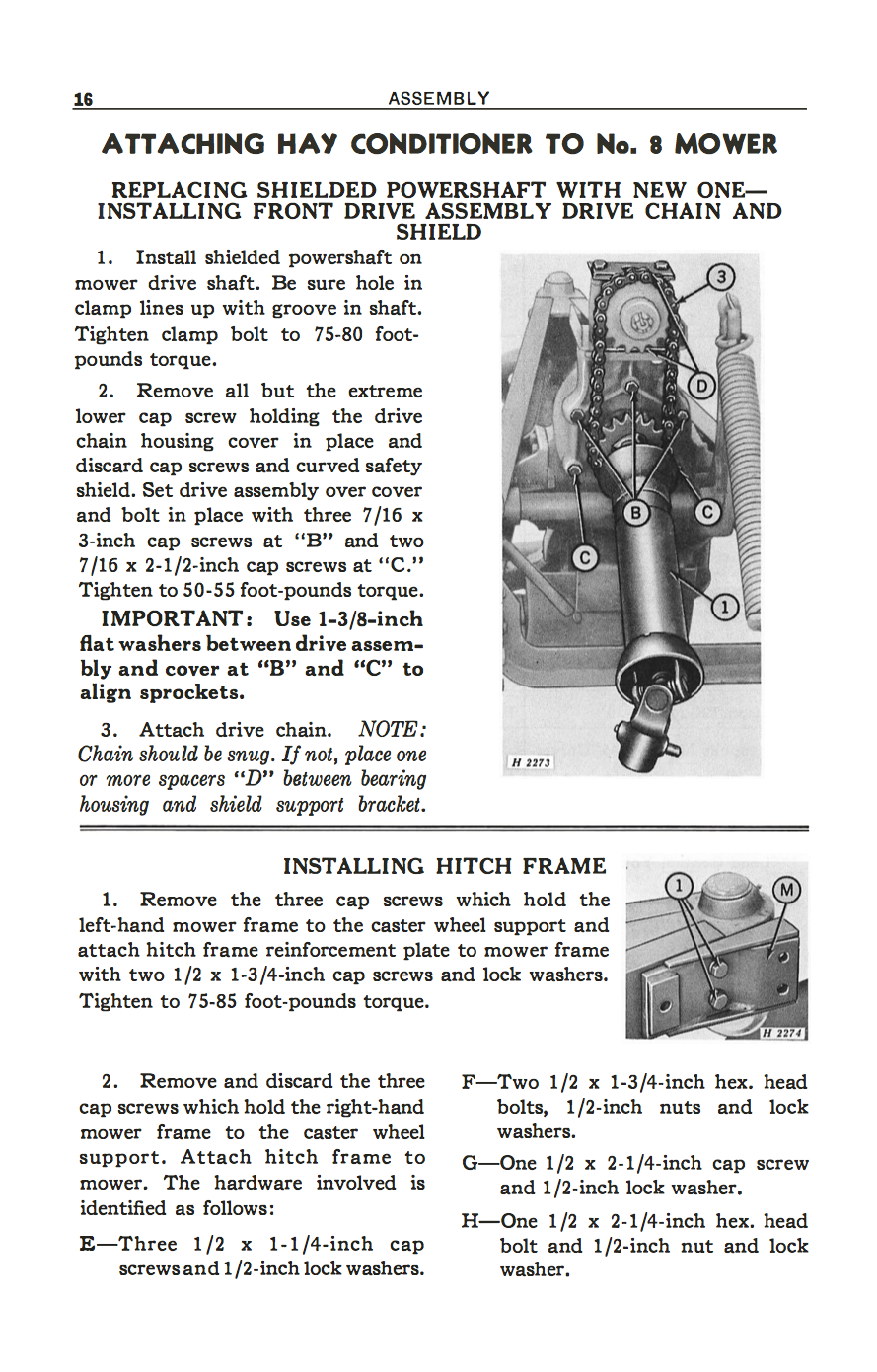

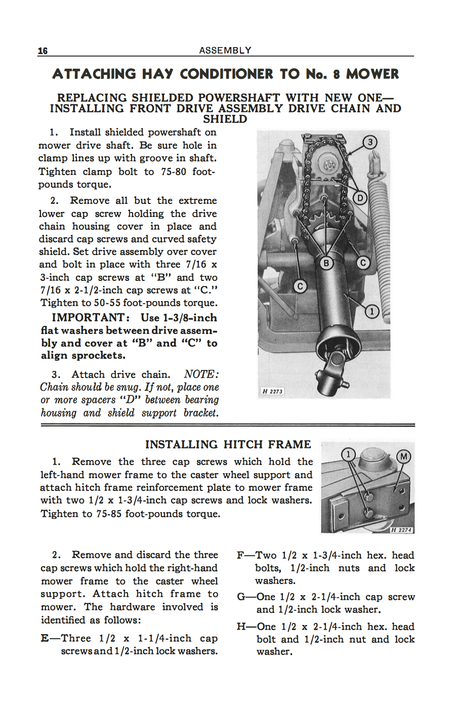

  • Attaching Hay Conditioner to No. 8 Mower
  • Replacing Shielded Powershaft with New One-Installing Front Drive Assembly, Chain, and Shield
  • Installing Hitch Frame
  • Installing Shielded Drive Shaft
  • Attaching Hay Conditioner to Hitch Frame
  • Attaching Hay Conditioner to No. 8W Mower
  • Replacing Shielded Powershaft with New One-Installing Front Drive Assembly, Chain, and Shield
  • Installing Hitch Frame
  • Installing Shielded Drive Shaft
  • Attaching Hay Conditioner to Hitch Frame
  • Installing Hydraulic Remote Cylinder Hose Extensions on No. 8 or No. 8W Mowers
  • Installing Control Rope for Throw-Out Clutch on Hay Conditioner Attached to No. 8 or No. 8W Mowers
  • Attaching Hay Conditioner to No. 9 or No. 9W Mowers
  • Replacing Powershaft and Draft Link Pins
  • Installing Front Drive Shaft Bearing Housing Support
  • Installing Front Drive Shaft Shields, Drive Chain and Shield
  • Assembling Hitch Frame and Caster Wheel on No. 9 Mower
  • Installing Drive Shaft on No. 9 Mower
  • Assembling Hitch Frame and Caster Wheel on No. 9W Mower
  • Installing Drive Shaft on No. 9W Mower
  • Installing Drive Shaft Shields
  • Attaching Hay Conditioner to Hitch Frame
  • Installing Hydraulic Remote Cylinder Hose Extensions on No. 9 or No. 9W Mowers
  • Installing Rope for Throw-Out Clutch on Hay Conditioners Attached to No. 9 or No. 9W Mowers

Manual Code: OM-H90535H
