Kohler M18 & M20 Magnum Twin-Cylinder Engine Service Manual
This service manual is the workshop repair reference for the Kohler M18 and M20 Magnum twin-cylinder gasoline engines, running roughly 148 pages of specifications, disassembly and reassembly, inspection, adjustment, and troubleshooting procedures. It's a true service manual — component-level teardown and repair, not just operation — backed by full specifications, tolerances, and special torque values, plus separate coverage of both Kohler and Walbro carburetor systems. Originally published by Kohler and delivered here as an instant PDF download you can read on any device or print for the bench.
Models covered: M18 · M20 (Magnum twin-cylinder engines)
About the M18 & M20 Magnum
The M18 and M20 are part of Kohler's Magnum engine line — the model code's third digit of 5 or greater denotes a Magnum engine per the factory identification decal. Both are twin-cylinder gasoline engines sharing a 3.12 in. bore and a common closure-plate/crankcase architecture, with a fan-and-flywheel cooling system and shrouding. The M18 is rated at 18 horsepower at 3,600 RPM from 42.18 cu. in. of displacement (2.75 in. stroke, 6.0:1 compression), while the M20 is rated at 20 horsepower at 3,600 RPM from 46.98 cu. in. (3.06 in. stroke, 6.6:1 compression). Both carry an approximate weight of 130 lb. and a 1.5 U.S. quart oil capacity, and both use Posi-Lock connecting rods and Style "D" pistons.
Engines like these turned up across a wide range of equipment applications — the identification system even codes crankshaft type and generator or pump versions — and many remain in service today on machines that outlived their original documentation. That's exactly why a complete factory service reference still matters: the running clearances, wear limits, and torque values needed to rebuild these engines to spec live in this book, not in generic small-engine guides.

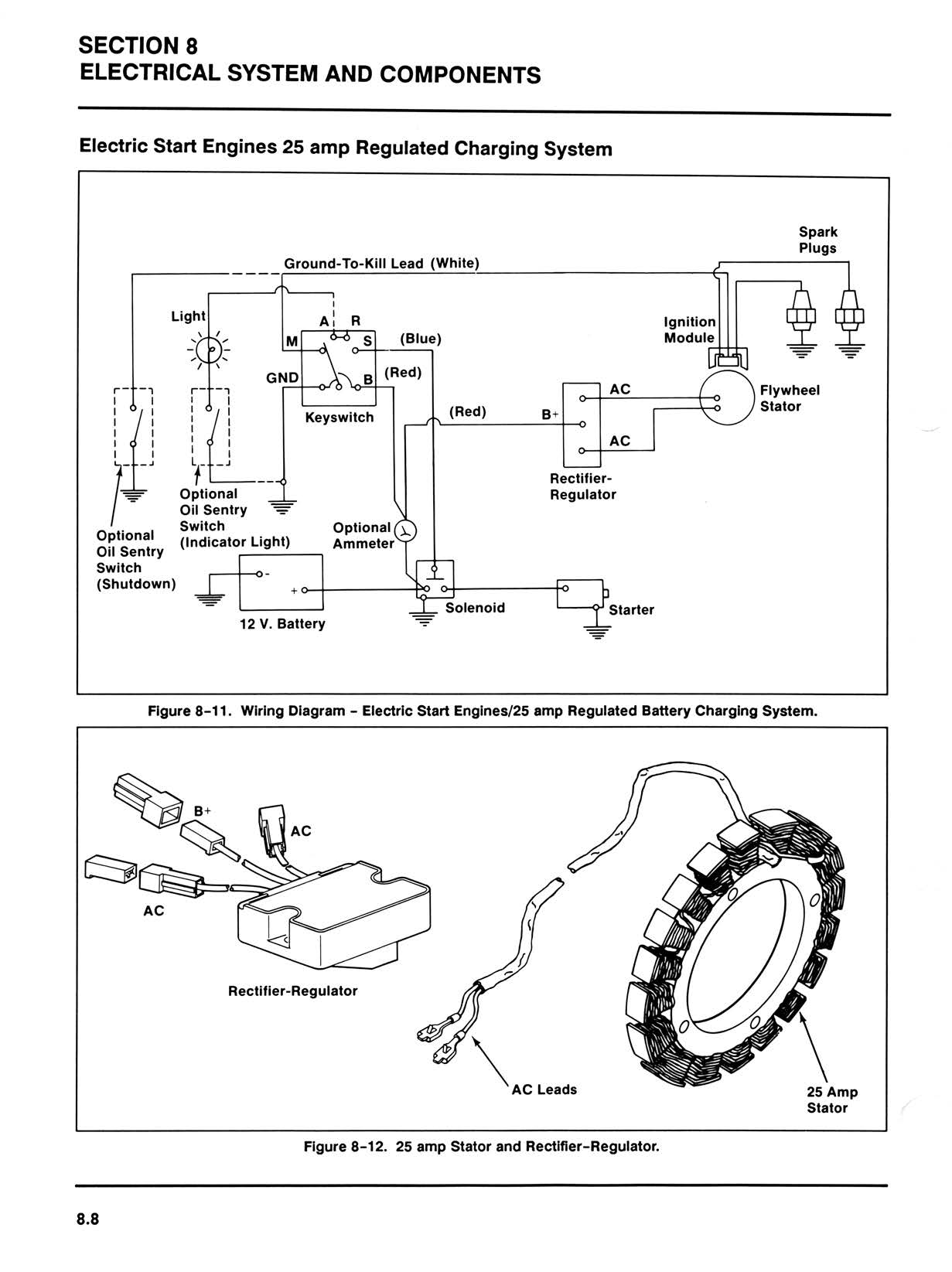

What This Manual Covers
- Safety & general information: Safety precautions, engine identification numbers and decal decoding, oil and fuel recommendations, overall dimensions for the M18 and M20, and the full specifications, tolerances, and special/standard torque values.
- Special tools: The special-tools reference for servicing these engines.
- Periodic maintenance: Scheduled maintenance procedures, including oil checking and changing.

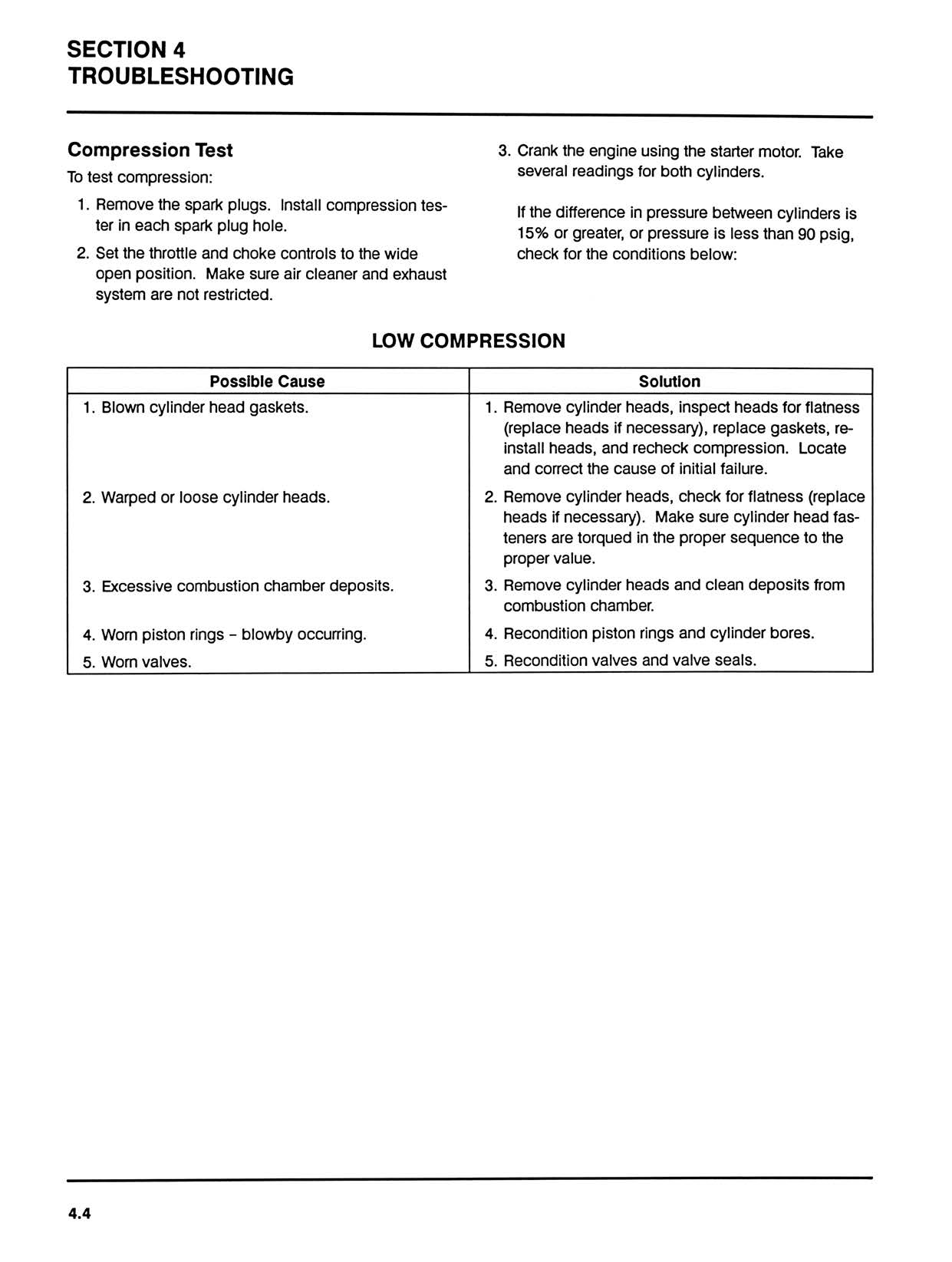

- Troubleshooting: Fault-tracing procedures for diagnosing engine problems.
- Air cleaner: Air cleaner service and handling.
- Fuel systems & governors — Kohler carburetors (Section 6A): Kohler carburetor service and governor adjustment, with preliminary main and idle fuel screw settings, float level and drop, and inlet-seat and bowl-screw torque values.

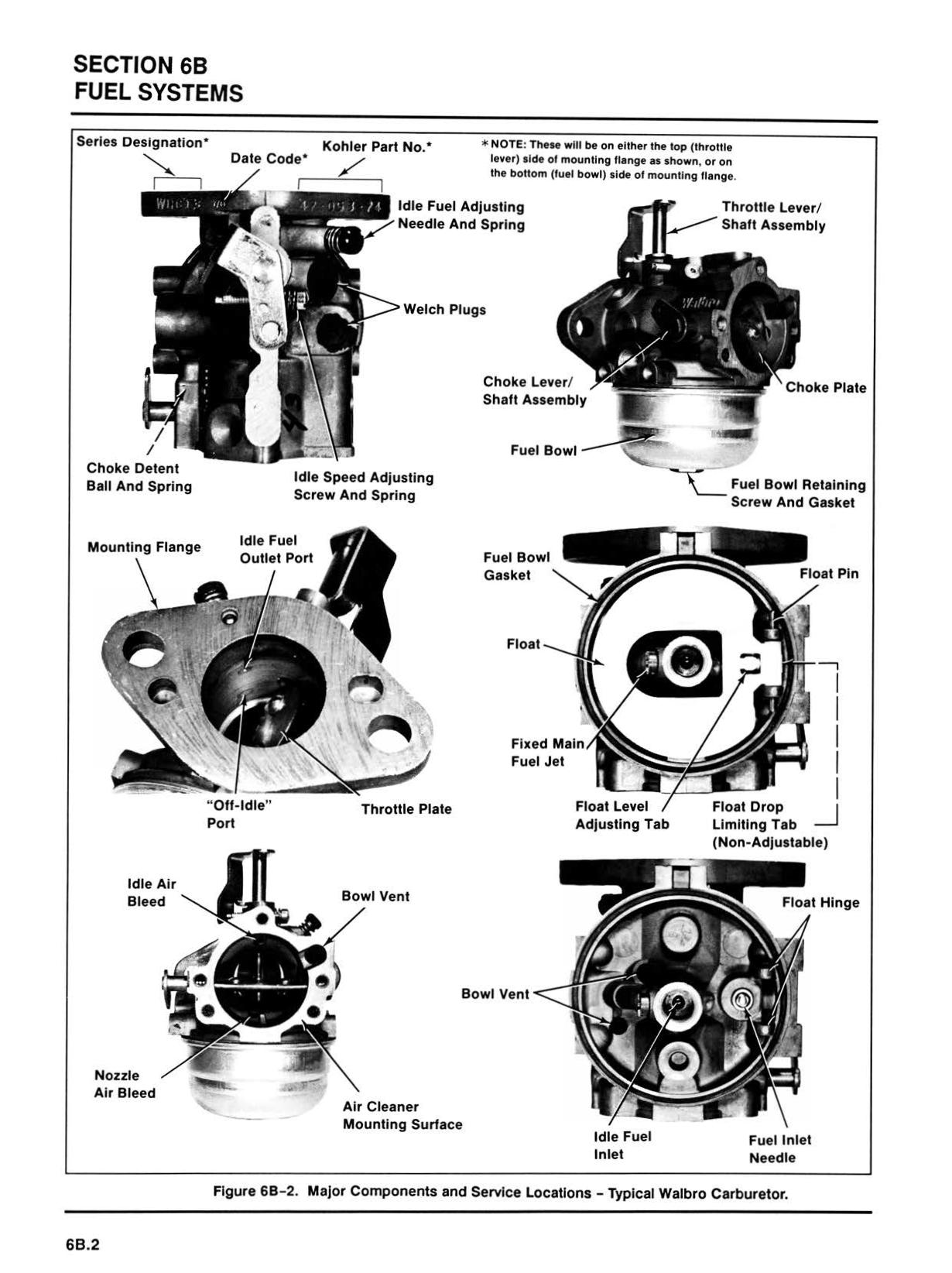

- Fuel systems — Walbro carburetors (Section 6B): Separate coverage of the Walbro carburetor system used on these engines.
- Lubrication system: Oil pump, oil filter, and lubrication-system service, including pump running clearances and drive-gear end play.
Why This Manual Matters
- Component-level repair, not just operation. This is a workshop service manual — it carries the disassembly, inspection, and reassembly procedures for tearing an engine down and rebuilding it, which is what you need when a job goes past routine maintenance.
- The reference data the job depends on. Full specifications, tolerances, running clearances, wear limits, and both special and standard torque values are printed here — including Posi-Lock rod nut torques and cylinder-barrel and crankcase sequences — so you can reassemble to spec rather than guess.
- Two carburetor systems, one book. Dedicated sections for both Kohler (6A) and Walbro (6B) carburetors mean you can service the fuel system whichever carburetor your engine left the factory with.
- Both models covered together. M18 and M20 specifications sit side by side, so the differences that matter — displacement, stroke, compression ratio, crankpin diameters — are called out where they diverge.
- Serial-number-specific detail. Valve clearance and seat-angle specs break out by serial number (No. 1816500646 and earlier vs. 1816500656 and later), the kind of running change generic guides don't track.
- Scarce factory documentation. Original literature for these engines is increasingly hard to find — this searchable, restored PDF puts it back in your hands.
Manual Code: TP-2204_B
