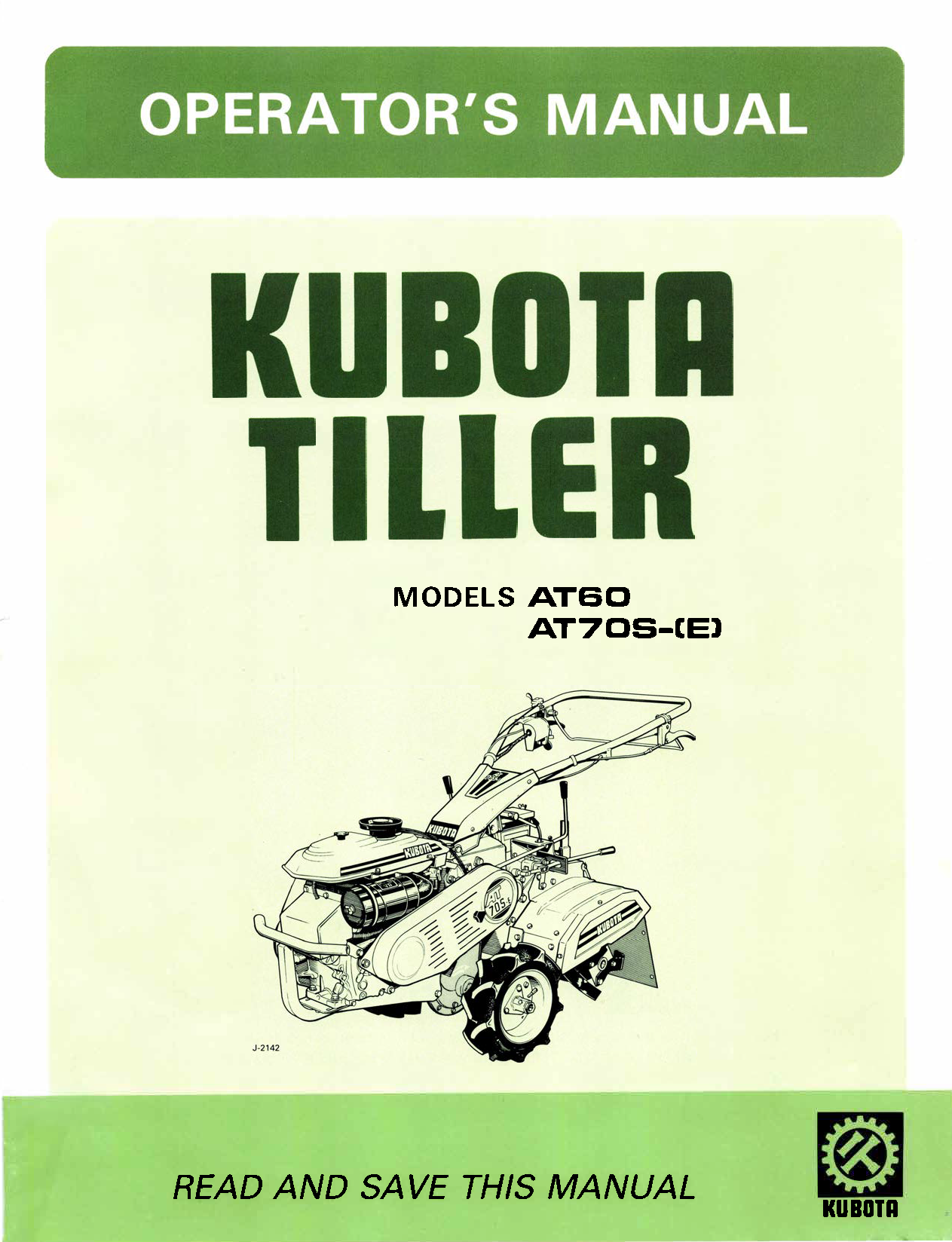

Kubota AT60, AT70S & AT70S-E Rotary Tiller Operator's Manual
This operator's manual is the factory operation and maintenance reference for the Kubota AT60, AT70S, and AT70S-E walk-behind rotary tillers, running roughly 36 pages of controls, operating procedures, maintenance, adjustments, and troubleshooting. It's the book that came with the machine: it walks through starting the gasoline engine, adjusting tilling depth and handle position, servicing the air cleaner and fuel filter, and tracing common faults through a troubleshooting section. Originally published by Kubota and delivered here as an instant PDF download you can read on any device or print for the cab.
Models covered: AT60 · AT70S · AT70S-E (recoil-start and electric-start variants; the electric starter kit is noted as an option)
About the AT60 / AT70S Series
These are center-drive walk-behind rotary tillers built around air-cooled, 4-cycle gasoline engines. The AT60 uses the GS230-2T — 226 cc (13.8 cu.in) rated at 5.5 hp — while the AT70S and AT70S-E carry the larger 276 cc (16.8 cu.in) GS280-TE / GS280-TE-S engine rated at 7.0 hp. All three use a non-contact magneto ignition system, a recoil starter (with an electric starter added on the AT70S-E), and 3.50×7 tires. Standard tilling width is 500 mm (20 in) with a 630 mm (24.8 in) option, a 360 mm (14.1 in) rotor diameter, 12 blades standard (16 optional), and a depth regulator adjustable from 1 in up to a full 7 in deep in 1 in steps.
The tillers offer two forward travelling speeds and one reverse, a three-stage vertically adjustable and swing-adjustable handle, and forward/reverse tine rotation with a lockout mechanism that prevents shifting the travelling drive into reverse while the tines are turning. The AT70S-(E) adds left/right wheel clutch levers for steering that the AT60 does not have. Machines like these stay in service on small farms and gardens for decades, and having the operator's manual on hand is what keeps the daily checks, lubrication points, and adjustments done the way the factory intended.
What This Manual Covers
- Safe operation: Before-starting, operation, transporting, maintenance, and storage safety, plus a full illustrated index of the tiller safety labels with their part numbers.
- Servicing of tiller: Serial number locations (tiller serial number on the left-hand handle holder, engine serial number on the front of the crankcase) and dealer service guidance.
- Specifications: Complete specification table for the AT60, AT70S, and AT70S-E and their GS-series engines, plus travelling speeds at rated engine rpm.

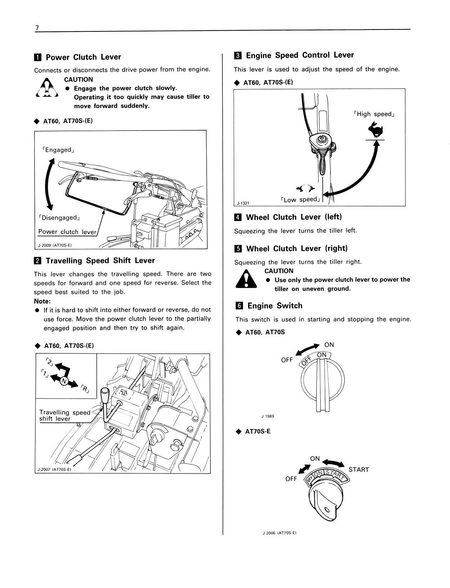

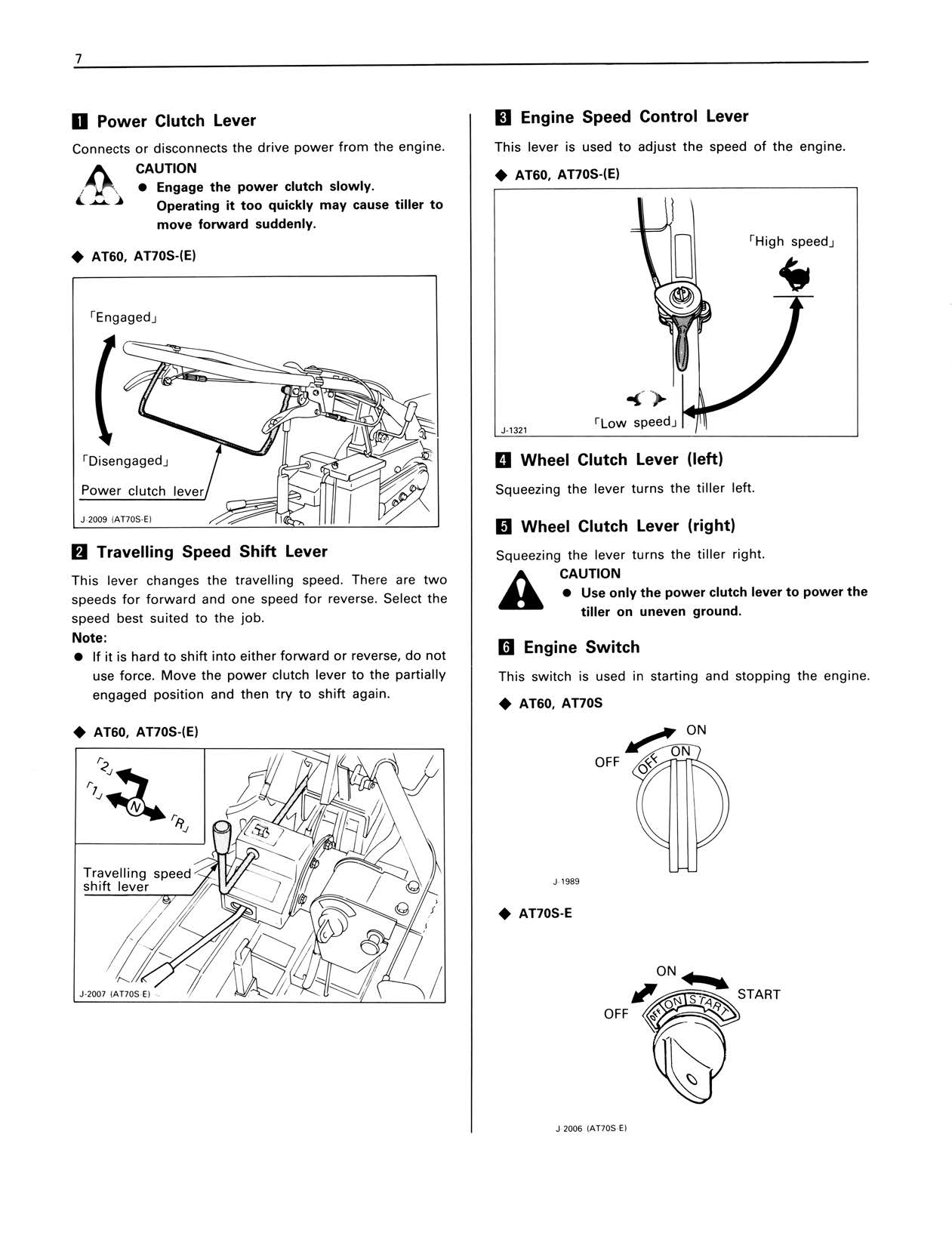

- Controls: Power clutch lever, travelling speed shift lever, engine speed control lever, wheel clutch levers, engine switch, tine rotation direction shift lever and tine clutch, handle rotating and fixing levers, fuel cock, and choke.
- Operating instructions: Starting the engine (recoil and electric start), adjusting the handle, changing the tine speed, adjusting tilling depth, mounting the tiller tine and furrower, and use of the hook for the rear cover.

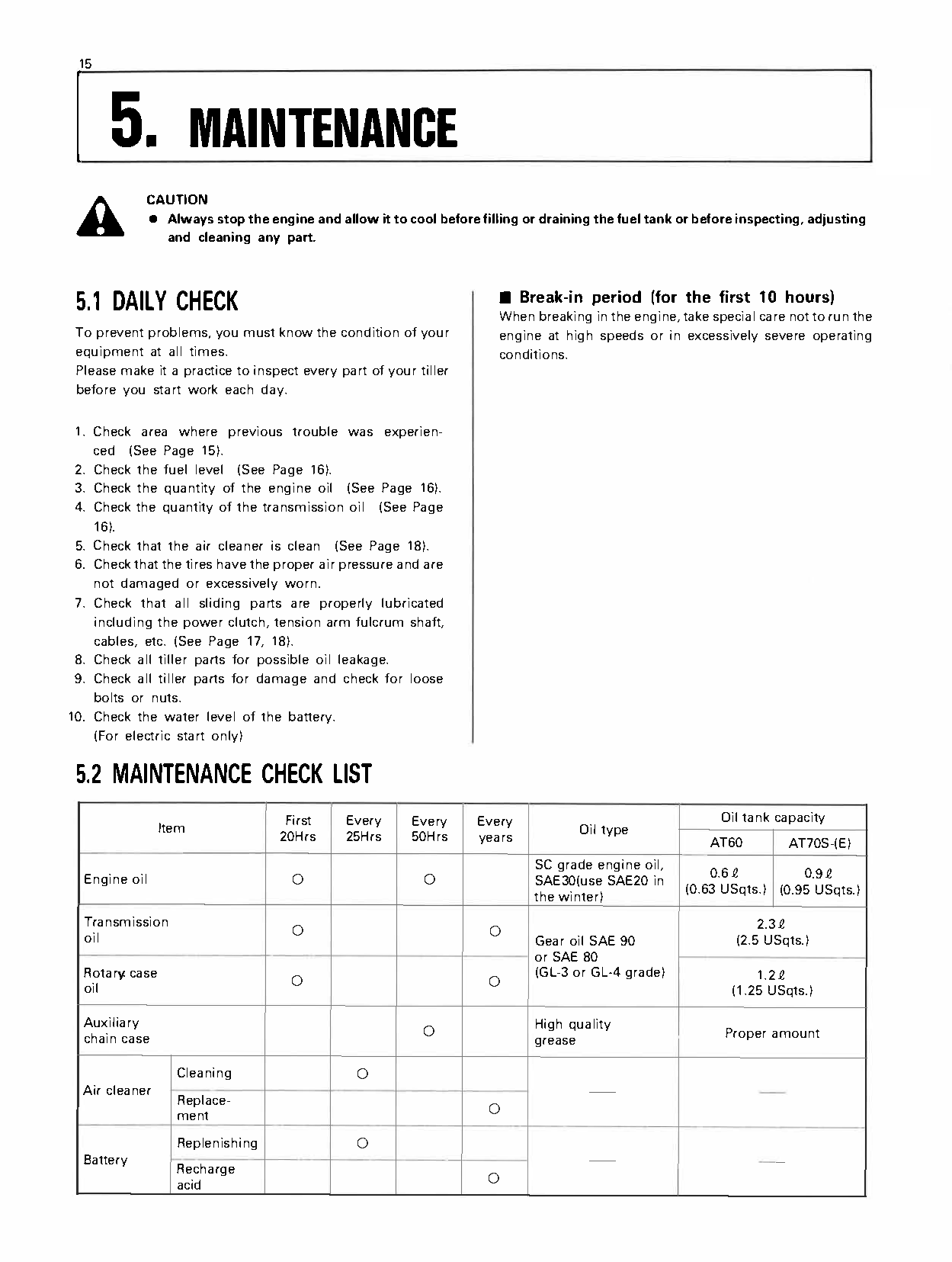

- Maintenance: Daily check, maintenance check list, lubrication and points to be lubricated, air cleaner, fuel filter, wheel tube and blade shaft nuts, battery inspection (electric start only), tiller cleanliness, fuel line and wiring inspection.
- Adjustments: Adjusting the power clutch, the wheel clutch (AT70S-(E)), the ignition plug, wheel tread width and wheel replacement, and tire air pressure.
- Storage: Cleaning after daily operation, care before prolonged storage, and storing the tiller.
- Troubleshooting & wiring: A troubleshooting section, a "Two Basic Models to Match Your Application" reference, and a wiring diagram.
Why This Manual Matters
- Model-specific data for three variants. One book covers the AT60, AT70S, and AT70S-E together, with the specification table and travelling-speed figures broken out so you're working from numbers that match your exact machine.
- The controls explained the right way. The tine-rotation lockout, wheel clutch steering, and travelling-speed shifting each have their own procedure and cautions — the details that keep a walk-behind tiller safe to operate.
- Maintenance and lubrication laid out. Daily checks, a maintenance check list, lubrication points, and air-cleaner and fuel-filter service are all documented so routine upkeep gets done correctly.
- Adjustments to keep it running to spec. Power clutch, wheel clutch, ignition plug, wheel tread, and tire pressure adjustments are covered, along with a troubleshooting section for tracing faults.
- Scarce factory literature. Operator's manuals for these small Kubota tillers are increasingly hard to find — this searchable, restored PDF puts it back in your hands.
