Kubota B8200 Tractor Operator's Manual
See the full Kubota B8200 specifications: D950 engine, capacities, dimensions, travel speeds and implement limits.
This is the Operator's Manual for the Kubota B8200 compact tractor, covering safe operation, controls, maintenance, adjustments and troubleshooting across 56 pages. It covers both the B8200E (two-wheel drive) and the B8200D (four-wheel drive), and is available as an instant digital download.
About the Kubota B8200
Kubota built the B8200 from 1983 to 1990. It is powered by Kubota's three-cylinder D950 diesel of 927 cc (56.6 cu. in.), rated by Kubota at 19 gross horsepower and 16 PTO horsepower, driving a gear transmission with 9 forward and 3 reverse speeds. It has a two-speed rear PTO (540 and 748 rpm) with an overrunning clutch, plus a front PTO, and was offered with farm or turf tires. Many B8200s are still mowing, tilling and loading on small acreages, which makes the factory maintenance schedule and adjustment procedures in this manual worth having.
What This Manual Covers
This 56-page manual covers the B8200 from first delivery through long-term storage. Key sections include:
- Safe Operation and Servicing — Kubota's safety rules for operating and servicing the tractor
- Specifications — engine, capacities, dimensions and weights for each tire option, traveling speeds, and the implement limitations Kubota set for the B8200
- Handling a New Tractor — loading and unloading

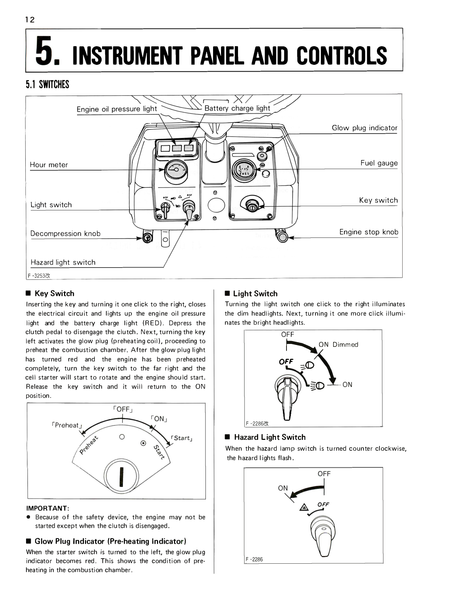

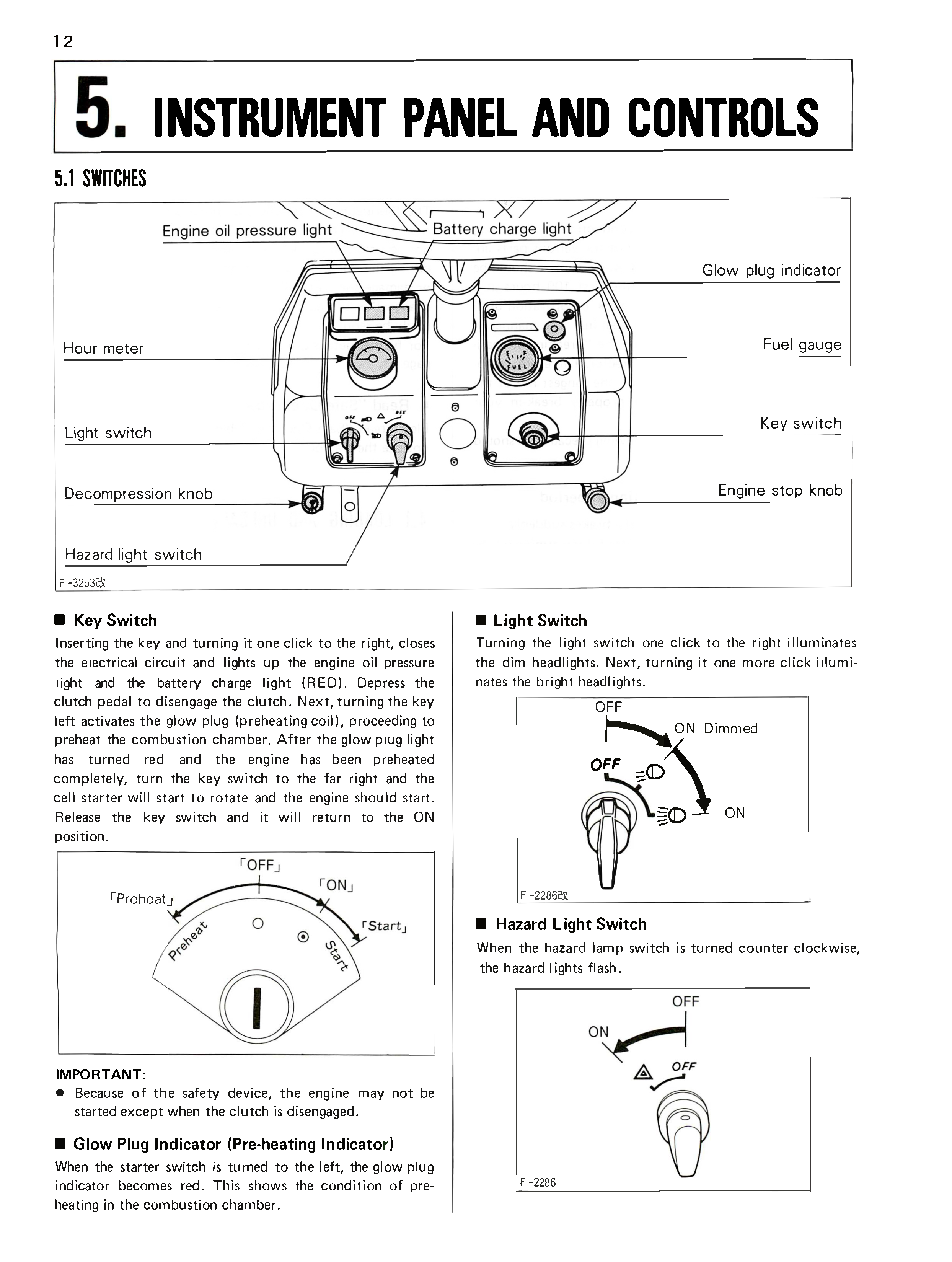

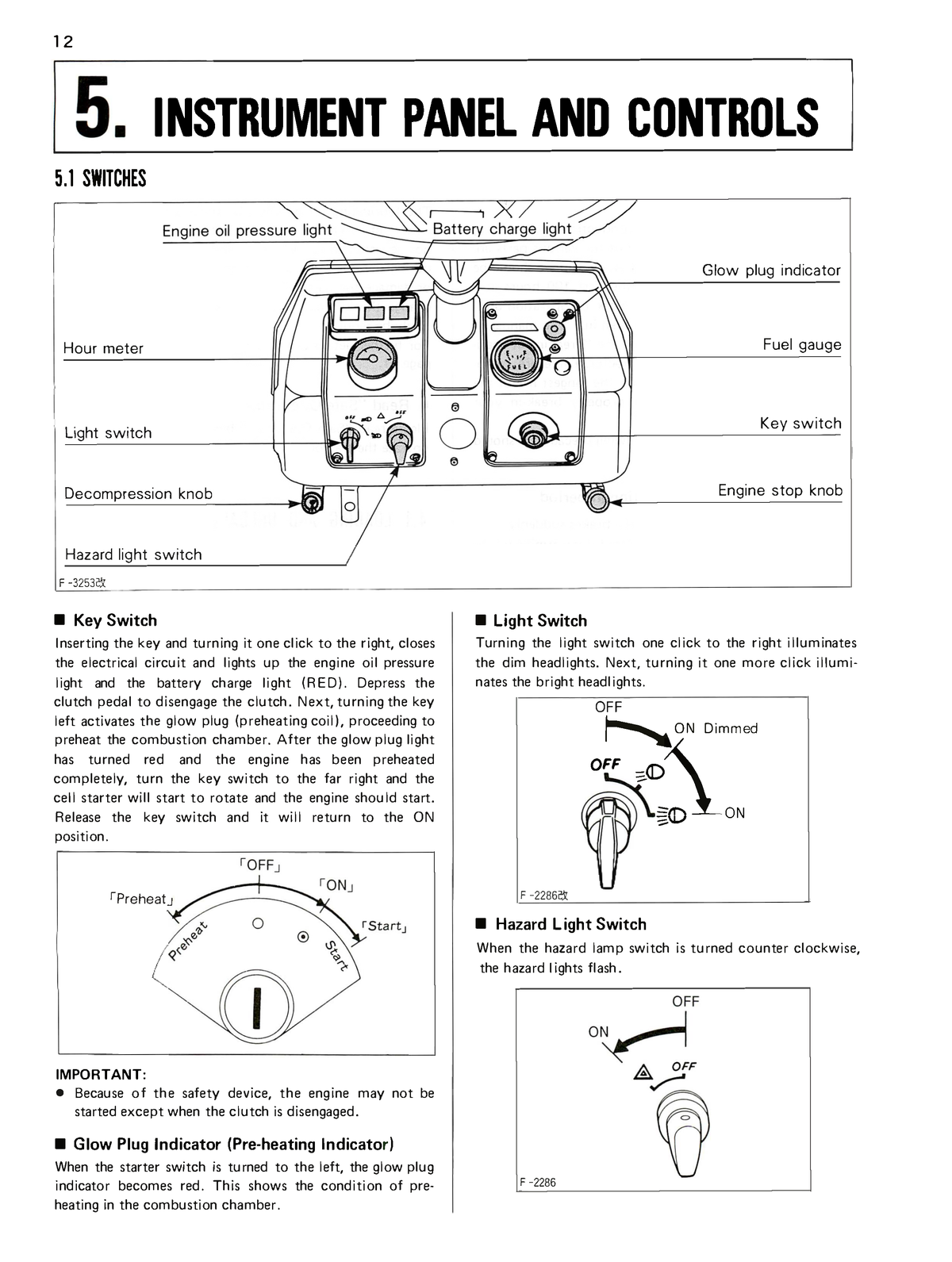

- Instrument Panel and Controls — switches; controls; auxiliary hydraulics
- Three-Point Hitch and Drawbar
- Wheels, Tires and Ballast — tread; wheel hub; tires; ballast; toe-in
- Operating Instructions — operating the engine; operating the tractor; pulling; checks during driving; directions for operating
- Maintenance — daily check; lubricants; maintenance check list; fuel, engine oil and transmission fluid; front axle differential and gear case oil (4WD); radiator; air cleaner; battery
- Adjustments — fan drive belt; clutch; brake; steering wheel
- Troubleshooting — engine, tractor and battery troubleshooting
- Long-Term Storage, Options, Lubricant Specifications and Wiring Diagram
Why This Manual Matters
- Implement limits: Kubota's maximum mower, tiller, plow, loader and backhoe sizes for the B8200, so you know what the tractor was designed to carry

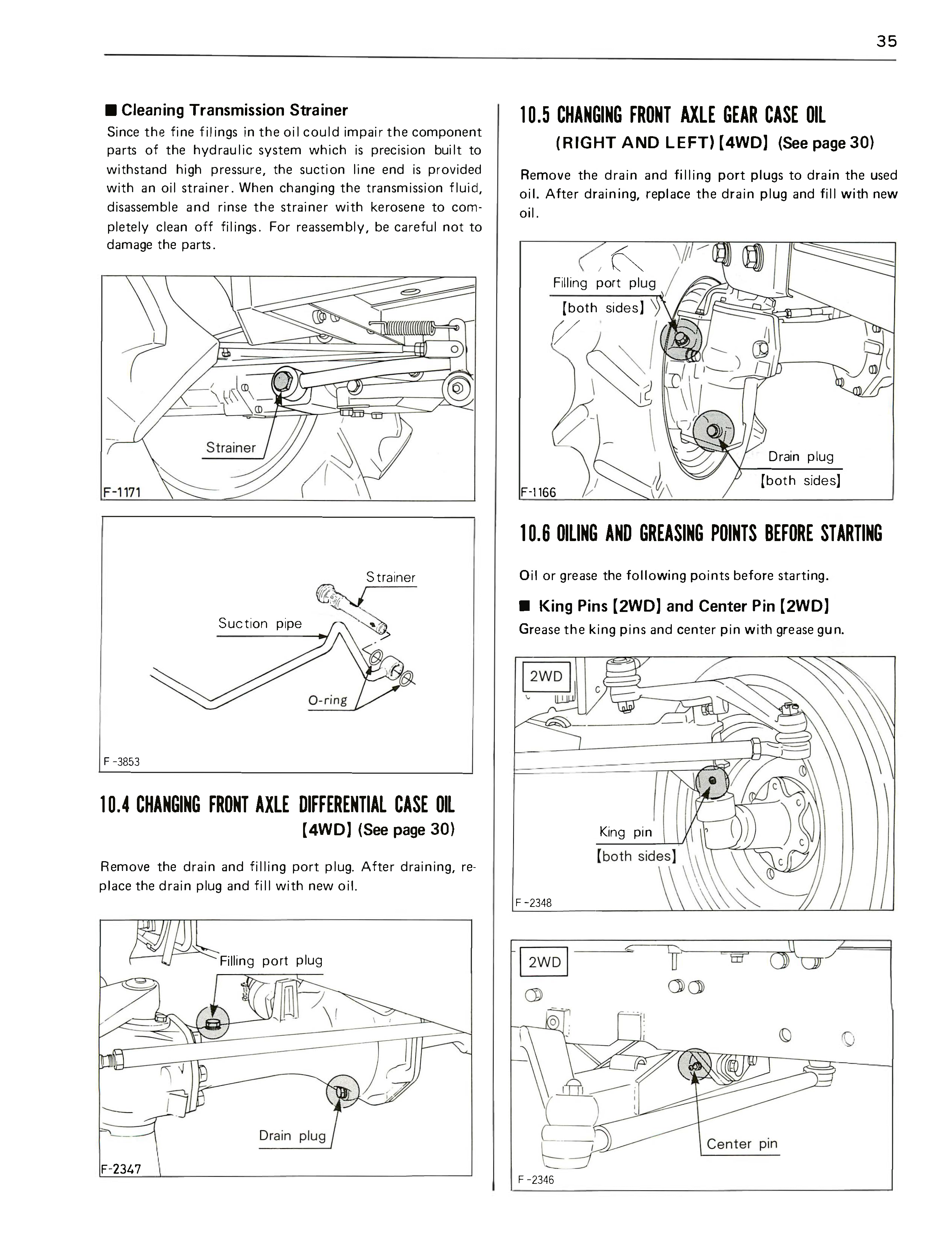

- 4WD front axle service: Oil change procedures for the front axle differential and gear cases on the B8200D
- Clutch and brake adjustment: The factory adjustment procedures for the two most common wear items on a compact tractor
- Wiring diagram: The original electrical diagram, useful when tracing faults on an older machine
- Original factory content: This is the manual Kubota issued to B8200 owners, code 67810-6291-4
Manual Code: 67810-6291-4
