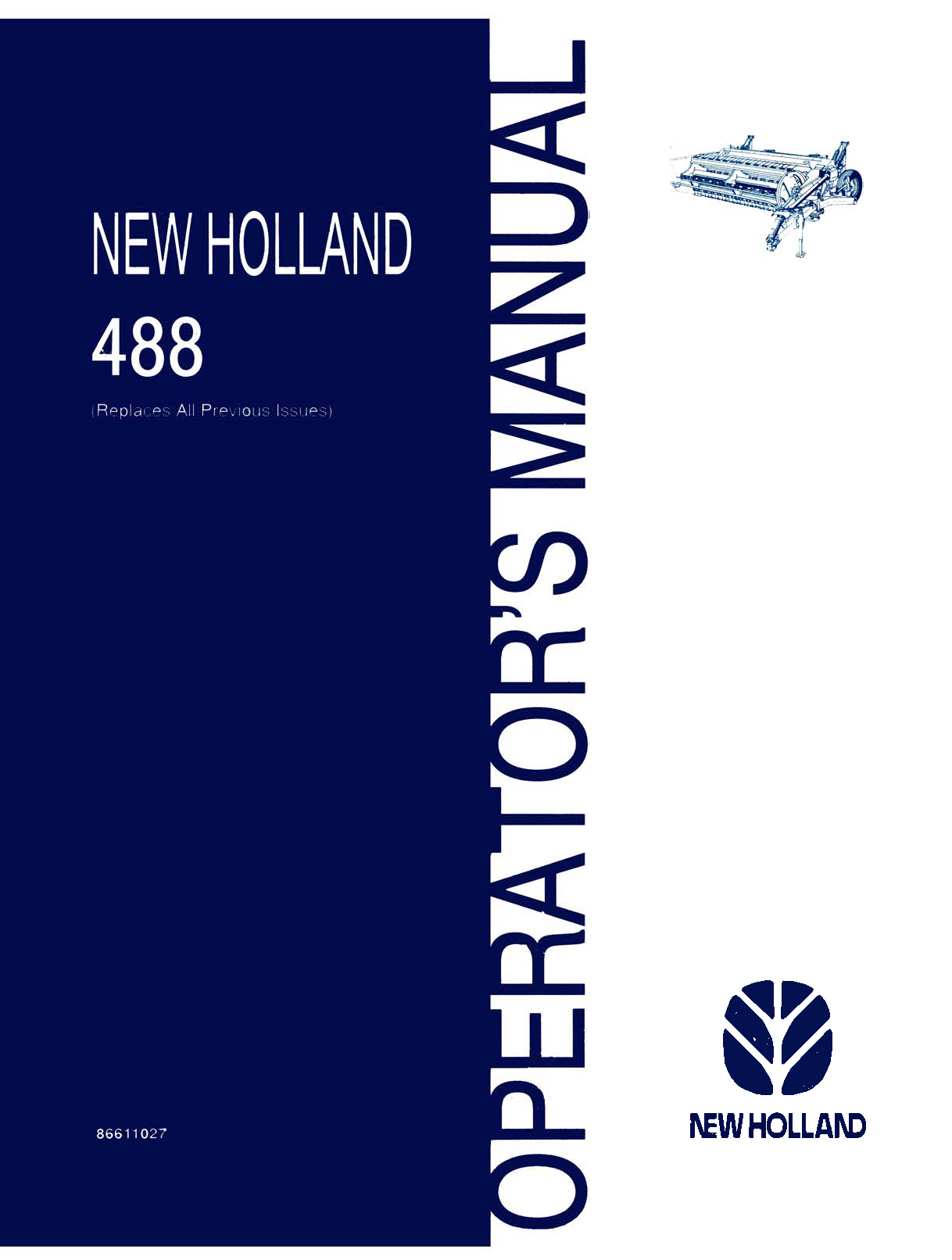

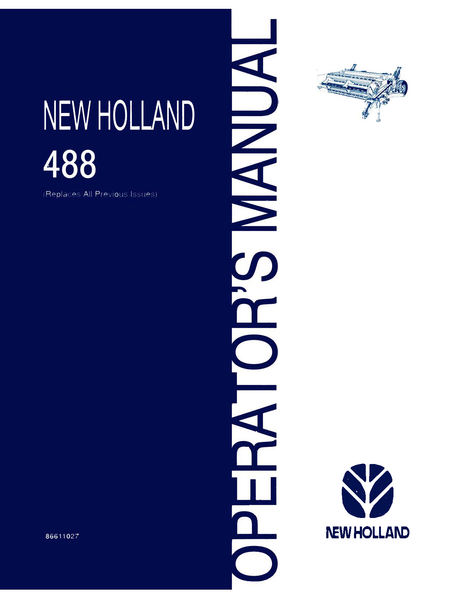

New Holland 488 Mower-Conditioner Operator's Manual
This operator's manual is the factory operation and maintenance reference for the New Holland Model 488 mower-conditioner, running roughly 96 pages of setup, operation, lubrication, maintenance, and troubleshooting guidance. It's the book that came with the machine: how the cutting and conditioning system works, the lubrication and maintenance schedules that keep it running, a troubleshooting section for when something goes wrong, and full specifications with a delivery report at the back. Originally published by New Holland and delivered here as an instant PDF download you can read on any device or print for the cab.
Models covered: New Holland Model 488 mower-conditioner
About the New Holland 488
The Model 488 is a pull-type mower-conditioner designed to cut, condition, and swath or windrow hay and forage crops in a single pass. Crop is pushed forward by the push bar, cut by the sickle-section cutter bar running between shear-edge guards, and fed cut-end-first into the conditioning rolls, while the reel assists in picking up down crop and moving it from the cutter bar to the rolls. An adjustable swathgate and windrow-forming shields at the rear set the shape of the finished swath or windrow.
The 488 could be ordered with either standard guards — recommended for most conditions, with a top lip that separates and lifts the crop and a tip that protects the knife section — or stub guards for difficult cutting in tangled or wet undergrowth that tends to plug the cutter bar. Machines like this stay in the hayfield for decades, and factory documentation is what keeps the cutting, conditioning, and drive adjustments correct season after season.
What This Manual Covers
- Safety: Precautionary statements, the safety-alert symbol system (Danger, Warning, Caution), operating precautions, and the location and part numbers of the machine's safety decals.

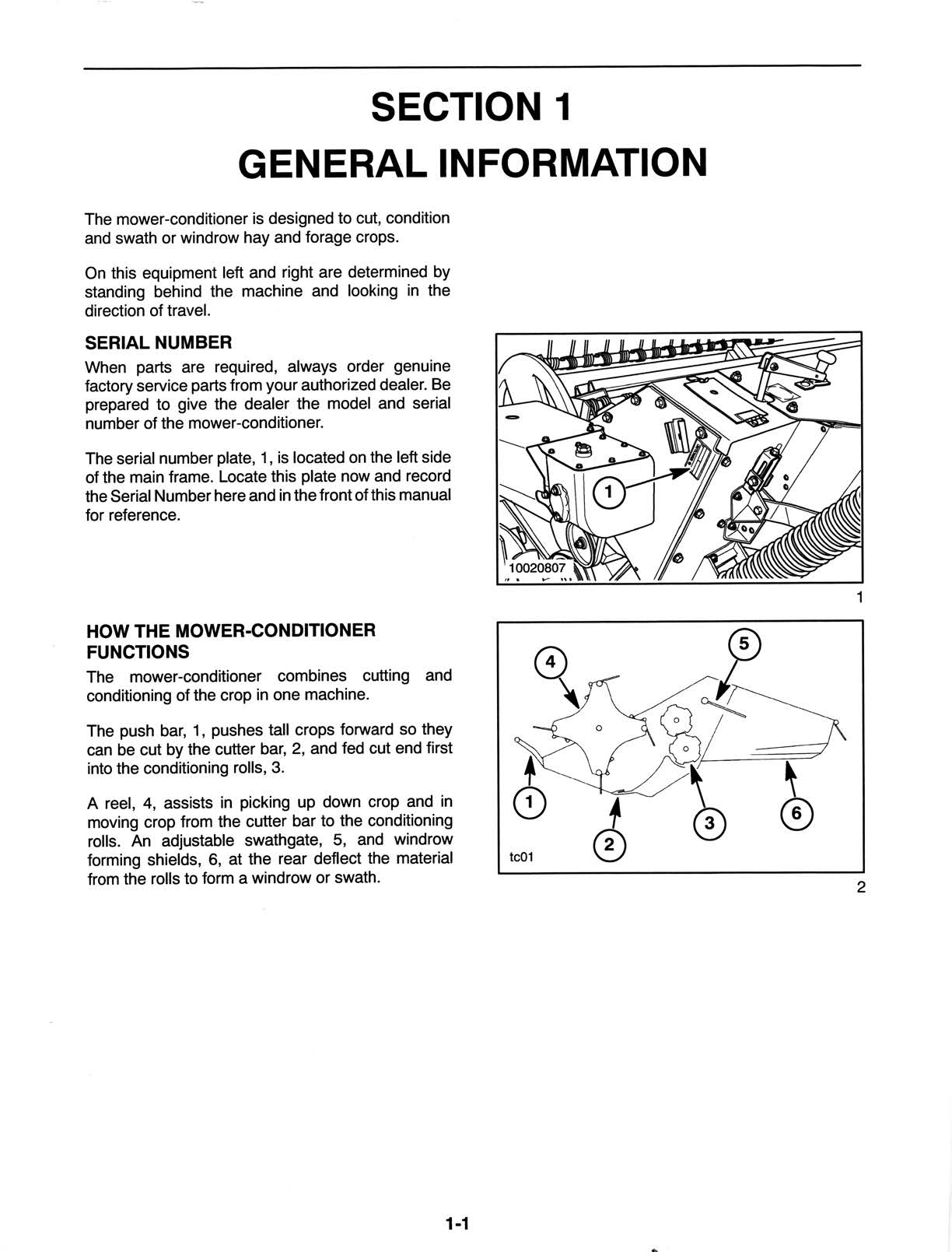

- General information: How the mower-conditioner functions, serial number plate location, left/right orientation, and the difference between standard and stub cutter-bar guards.
- Operation: Operating procedures for the machine in the field.
- Lubrication: Lubrication points and schedules to keep the machine serviced.

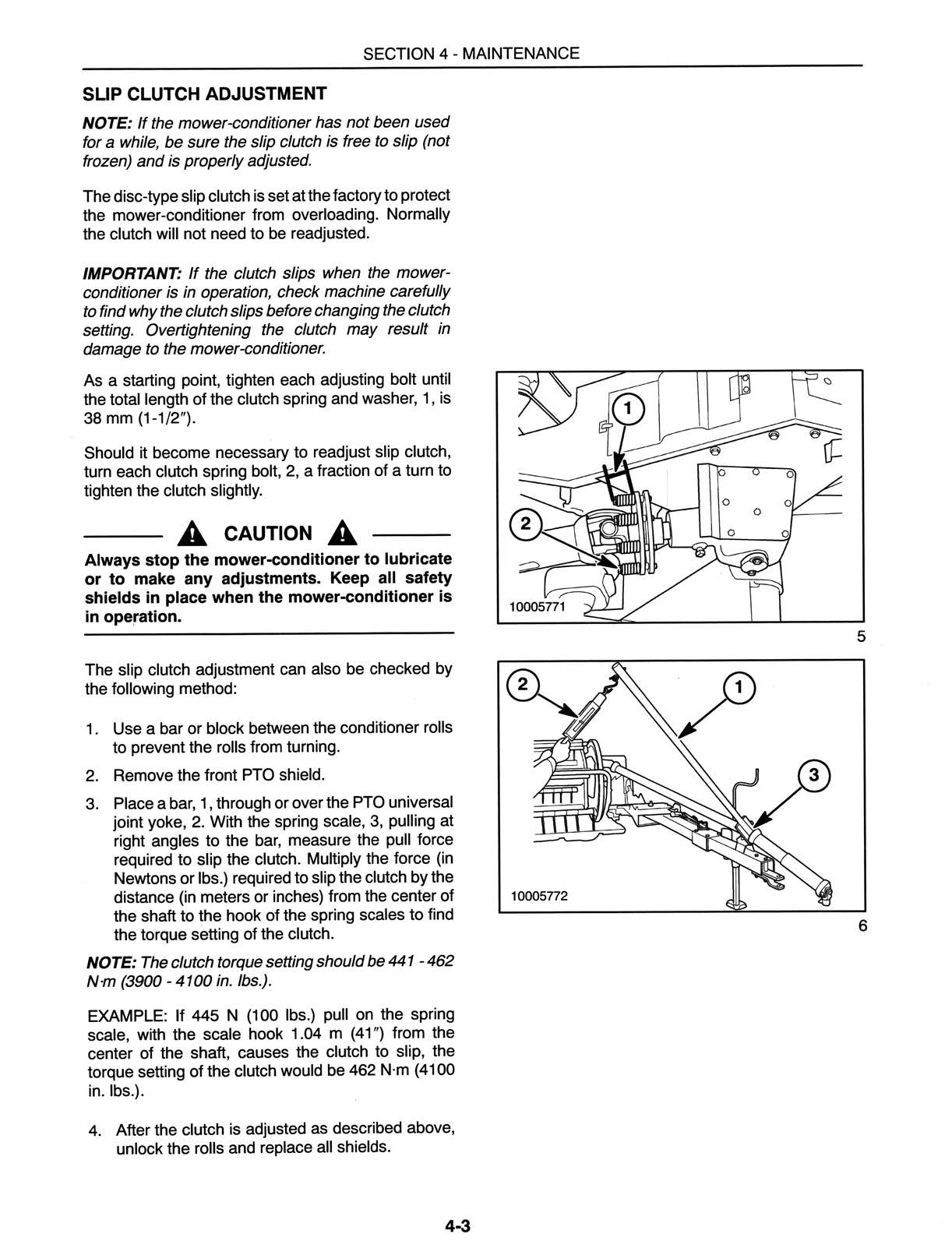

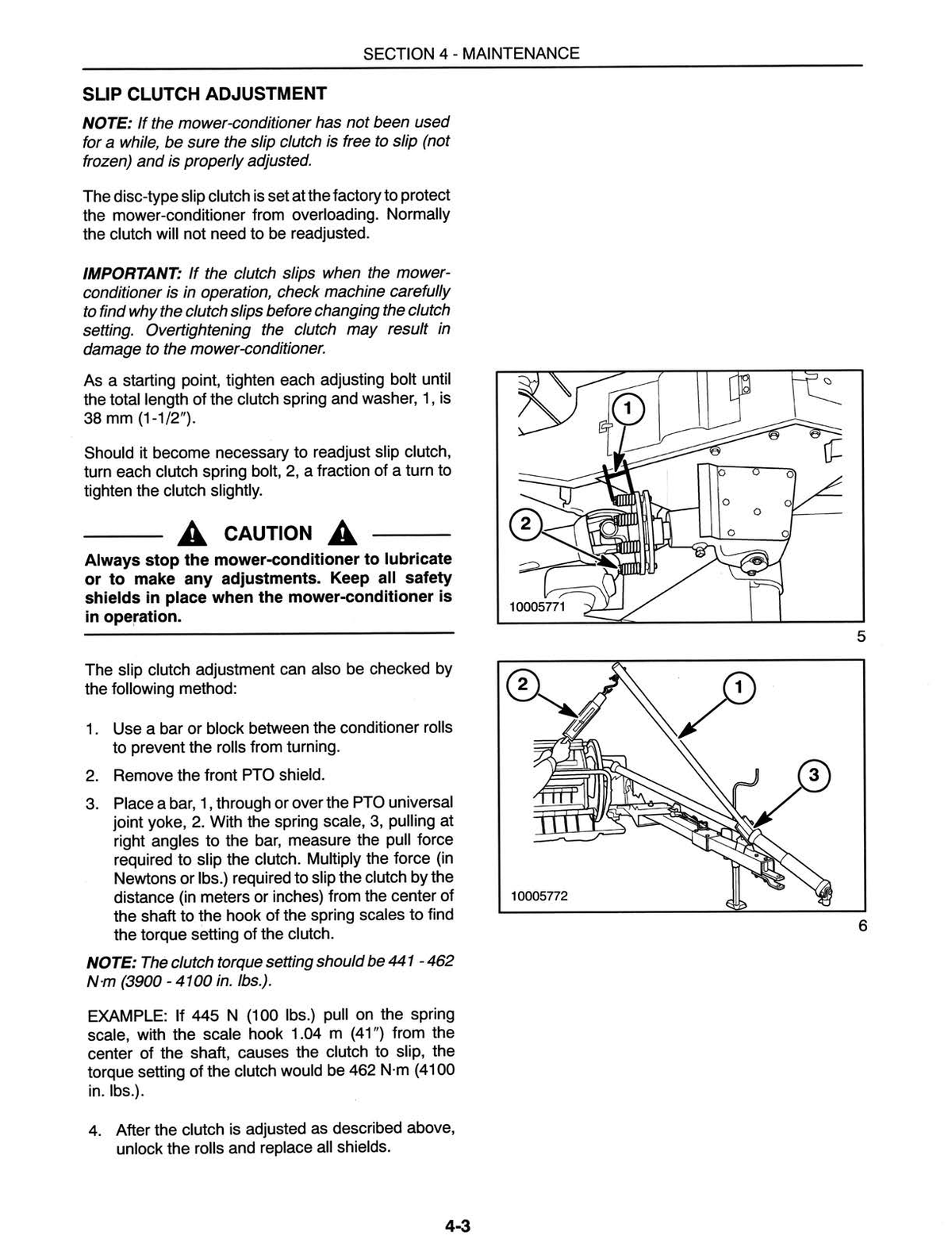

- Maintenance: The manual's largest section — routine service, adjustments, and upkeep, including the bolt, security-pin, and split-pin checks called for after the first 8 hours and then every 50 hours.
- Troubleshooting: A dedicated section for tracing operating faults.
- Optional equipment: Factory optional equipment for the 488.
- Specifications: Machine specifications, plus notes on attaching the mower to the tractor.
- Delivery report: Owner and dealer delivery-report copies and field-adjustment checklist at the back of the manual.
Why This Manual Matters
- Operation the way it was intended. The manual walks through how the push bar, cutter bar, reel, conditioning rolls, swathgate, and windrow shields work together, so the machine is set up to cut and windrow correctly rather than by guesswork.
- Maintenance on a real schedule. Lubrication points and the initial 8-hour and recurring 50-hour check intervals are documented, which is what keeps a mower-conditioner running through the season.
- Guard selection for your conditions. Standard versus stub guard guidance helps you match the cutter bar to the crop and cut you're actually facing.
- Troubleshooting when things go wrong. A dedicated troubleshooting section helps you trace a problem in the field instead of trial-and-error.
- Scarce factory literature, restored. Original operator's literature for these machines is increasingly hard to find — this searchable, restored PDF puts it back in your hands.
