New Holland Hayliner 270 Baler Owner's Manual
48 pages · Digital PDF download

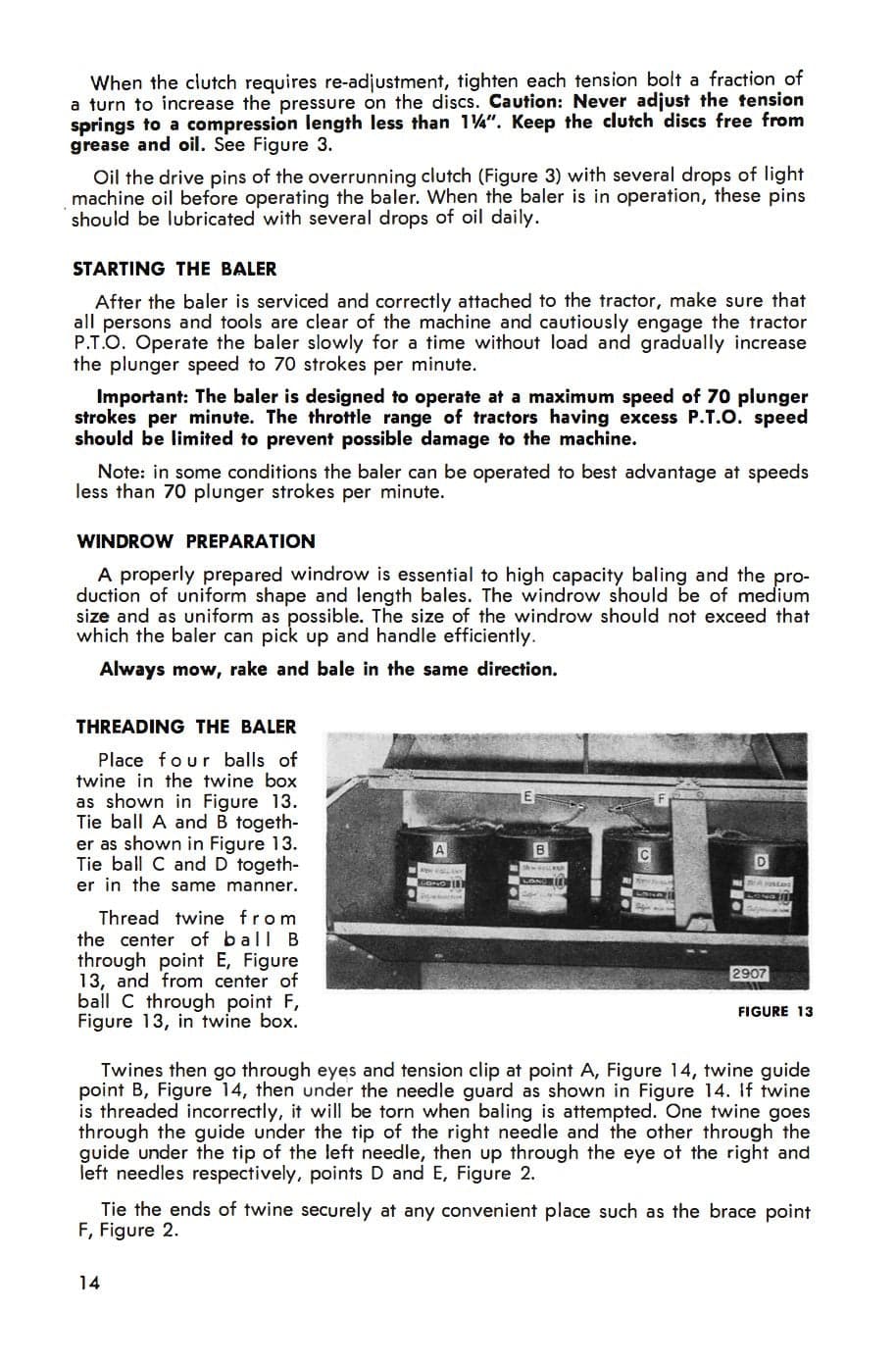

This 48-page New Holland Hayliner 270 Baler Owner’s Manual covers operation, adjustments, lubrication and maintenance. It includes instructions for attaching and threading the baler, setting bale length and weight, and preparing the machine for storage. Supplied as a digital PDF download.

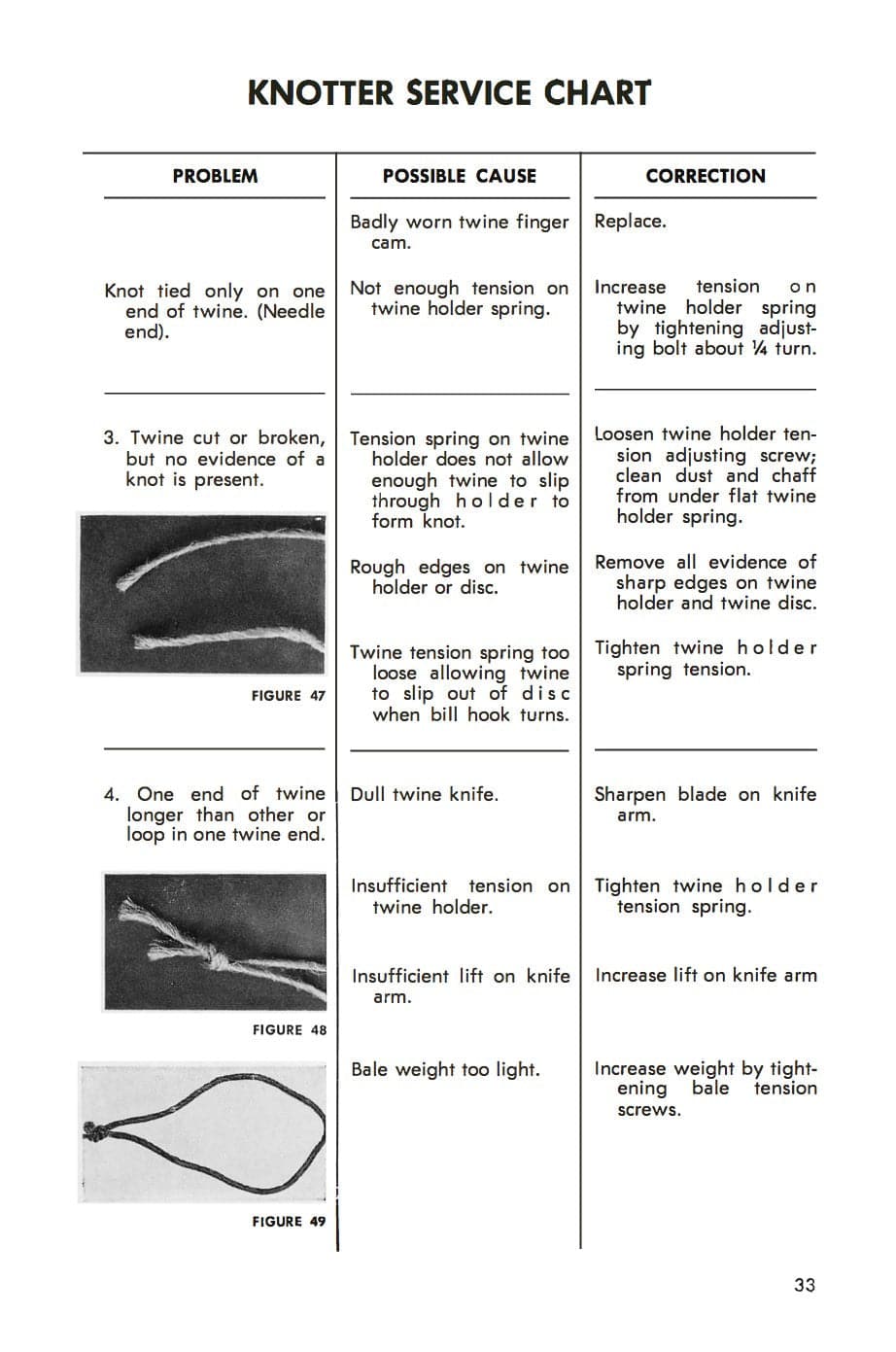

The adjustment section covers the knotter’s bill hook, knife arm, twine disc, twine finger and twine holder, along with needle adjustment and timing. It also includes bale shape adjustments, pickup and PTO slip clutches, plunger bearing adjustment, and the optional Hydraformatic bale tension system. A knotter service chart and baler service chart are included.
Contents
Adjustments
- Bale Shape
- Baler Service Chart
- Clutches
- Pickup Slip Clutch
- PTO Slip Clutch
- Hydraformatic Service Chart
- Hydraformatic Unit
- Knife Adjustment
- Knotter
- Bill Hook
- Brake
- Knife Arm
- Removing End Play
- Twine Disc
- Twine Finger
- Twine Holder
- Knotter Service Chart
- Metering Wheel Location
- Needles
- Adjustment
- Timing
- Needle Yoke Rod
- Pickup
- Cam
- Lift Spring
- Slip Clutch
- Wheel (Optional)
- Windguard
- Plunger Bearing Adjustment
- Roller Chains
- Tine Bar
- Drive Chain
- Timing
- Tine Adjustment
General
- Optional Equipment
- Ordering Parts
- Safety Precautions
- Specifications
- Warranty
Lubrication
Maintenance
- Main Gearbox
- Pickup
- Cam Followers
- Fingers
- Tooth Pipe
- PTO Drive
- Storing the Baler
- Tire Pressures
Operation
- Attaching the Baler to Tractor
- Before Using Your Baler
- Bale Length
- Bale Tying
- Bale Weight
- Hydraformatic Bale Tension (Optional)
- Jack (Optional)
- Slip Clutch Adjustment
- Starting the Baler
- Threading the Baler
- Windrow Preparation
- Wind Guard
Safety Features
- Needle Safety Latch
- Pickup Slip Clutch
- PTO Slip Clutch
- Shearbolts
- Flywheel
- Knotter Drive
Manual code: O270-2-7½M-1-63W
