Allis-Chalmers Model “B” Tractor Operators & Parts Manual Set (2 Manuals)
Allis-Chalmers Model “B” Tractor — Operators & Parts Manual Set (2 Manuals)
This download bundles the two factory documents most Model “B” owners end up needing side by side — about 76 pages in total. You get the Operating Instructions & Maintenance manual (factory code 257986, 32 pages) together with the Operating Instructions, Maintenance and Parts Illustrations edition (form TPL-28M, 44 pages). The first walks you through running, servicing, and adjusting the tractor; the second carries the same operating content plus the exploded parts illustrations and repair-parts section you need when it is time to identify and order components. Both are delivered as clear, page-for-page PDF reproductions of the original Allis-Chalmers booklets for instant download.
About the Allis-Chalmers Model “B”
Allis-Chalmers introduced the Model “B” in 1937 and kept it in production through 1957, making it one of the company’s best-selling and longest-running tractors — well over 125,000 were built. Tractor-division manager Harry Merritt had studied the farm census and seen that most American farms were 100 acres or smaller, so the “B” was engineered as a small, affordable machine to mechanize operations that still relied on horses. Its styled sheet metal was the work of industrial designer Brooks Stevens.
Under the hood is a four-cylinder, magneto-ignition engine with a 6-volt electrical system, rated at roughly 22 horsepower at the belt. Early “B” tractors used a smaller engine of about 116 cubic inches; around 1943 the engine was enlarged to 125 cubic inches (3⅜″ bore × 3½″ stroke). Both manuals in this set list the 125-cubic-inch engine, so they document the later, larger-displacement production version. The “B” was also one of the era’s more adaptable row-crop tractors, with an adjustable rear wheel tread (40½″ to 52½″) to suit different crop spacings.
What These Manuals Cover
Between the two booklets you have the full operating, maintenance, and parts picture for the Model “B”:

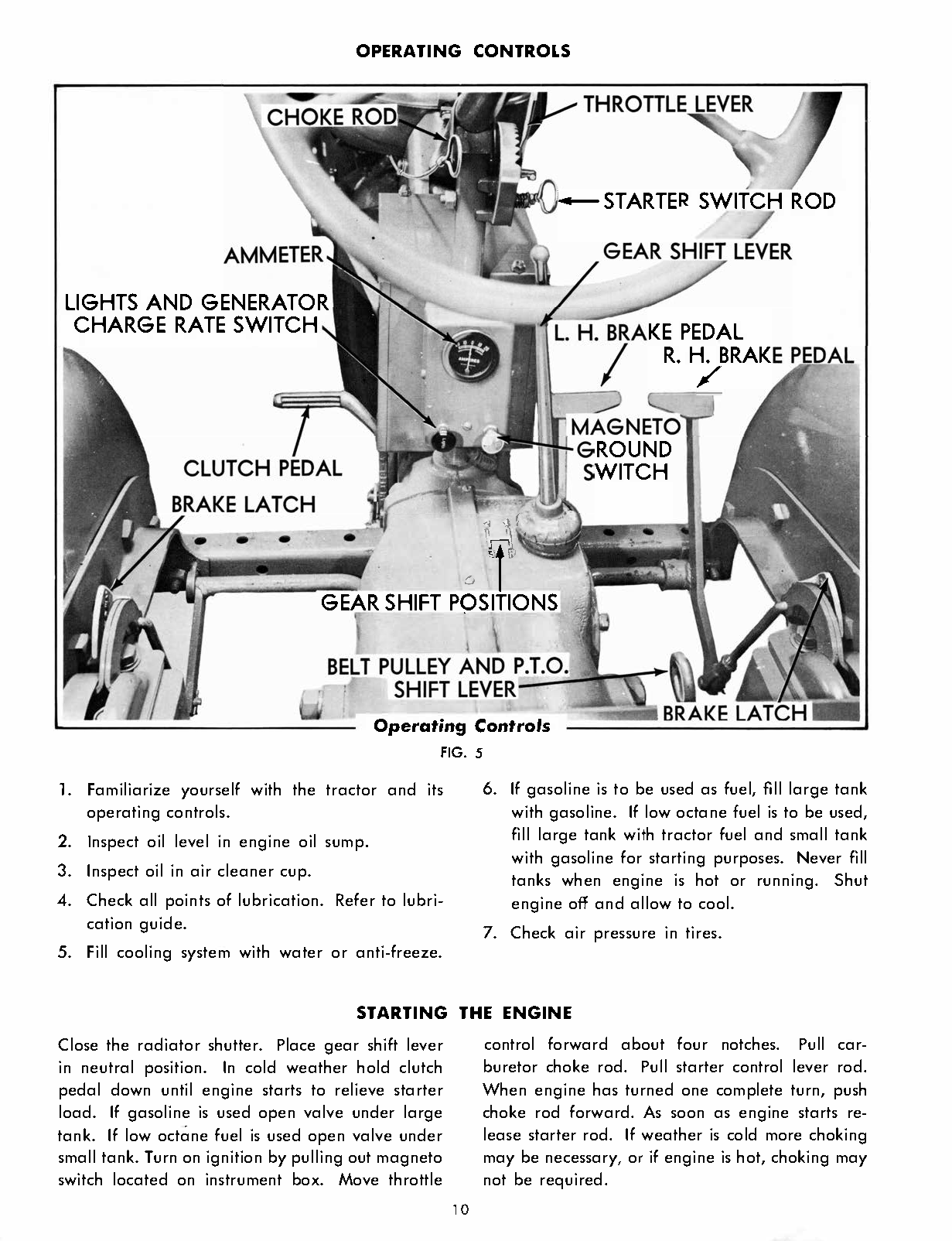

- Operation: operating controls, starting and stopping the engine, hand cranking, operating temperature, break-in period, and safety suggestions.
- Fuel & lubrication: fuels and fuel containers, fuel filter, the lubrication guide and lubricant containers, oil filter, oil sump, and oil pressure.
- Cooling & electrical: radiator and cooling system, radiator shutter, anti-freeze, draining the cooling system, generator, ammeter, lights, tail light, and the light-circuit fuse.
- Adjustments: brakes, carburetor, clutch, fan belt, front wheel bearings, magneto, and valves.
- Implements & hydraulics: belt pulley, power take-off, drawbar, hydraulic pump and rams, three-way valve, and what to check when the lift fails to operate.
- Wheels & tires: wheel spacing, wheel weights, rims and rim lugs, tire inflation, and synthetic/Hydromatic tire notes.
- Service & parts: a maintenance section, a guide to diagnosing engine difficulty, storage of the tractor, and — in the TPL-28M edition — the parts illustrations and repair-parts section.
- Allis-Chalmers Model "B" Tractor Specifications
Why This Set Matters

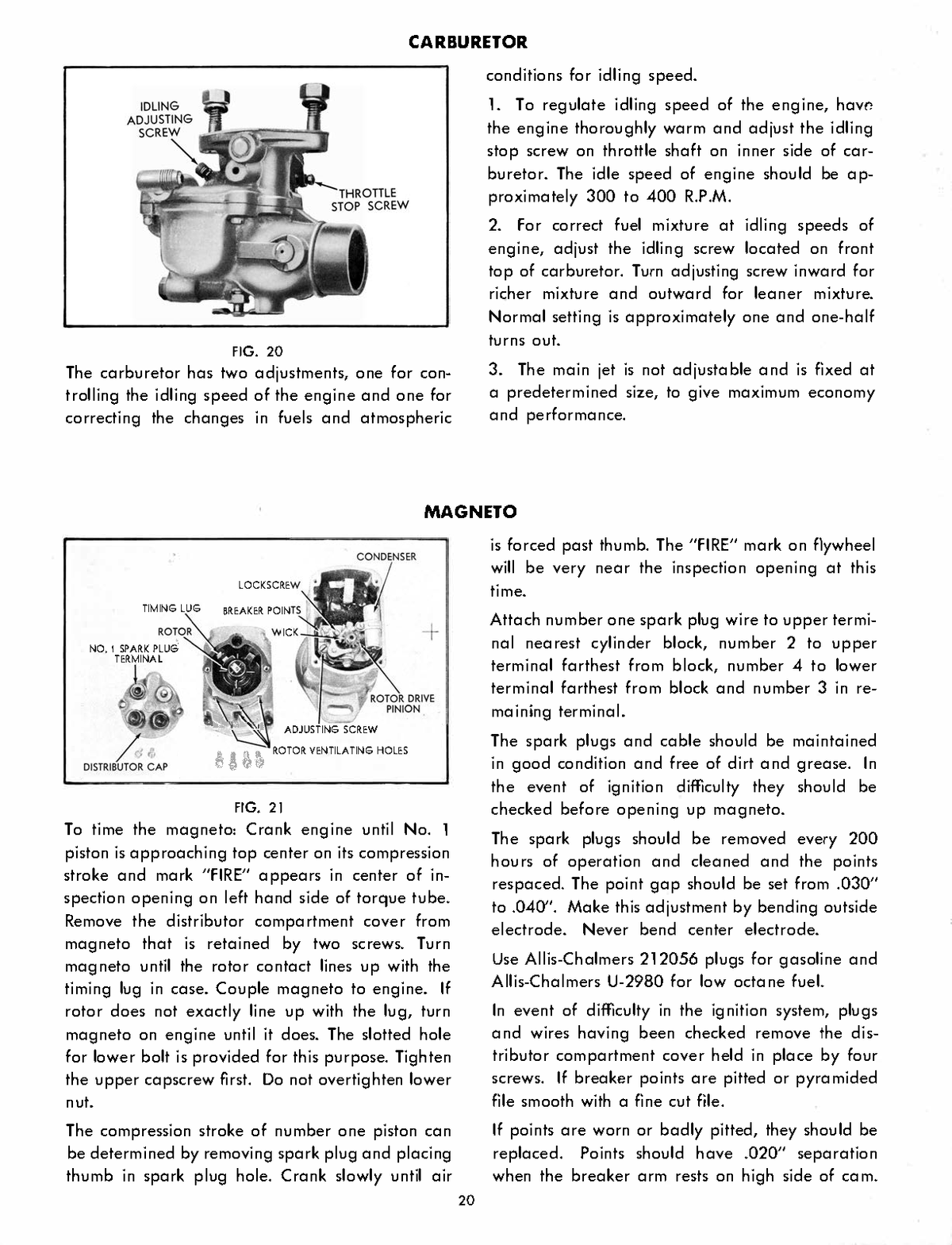

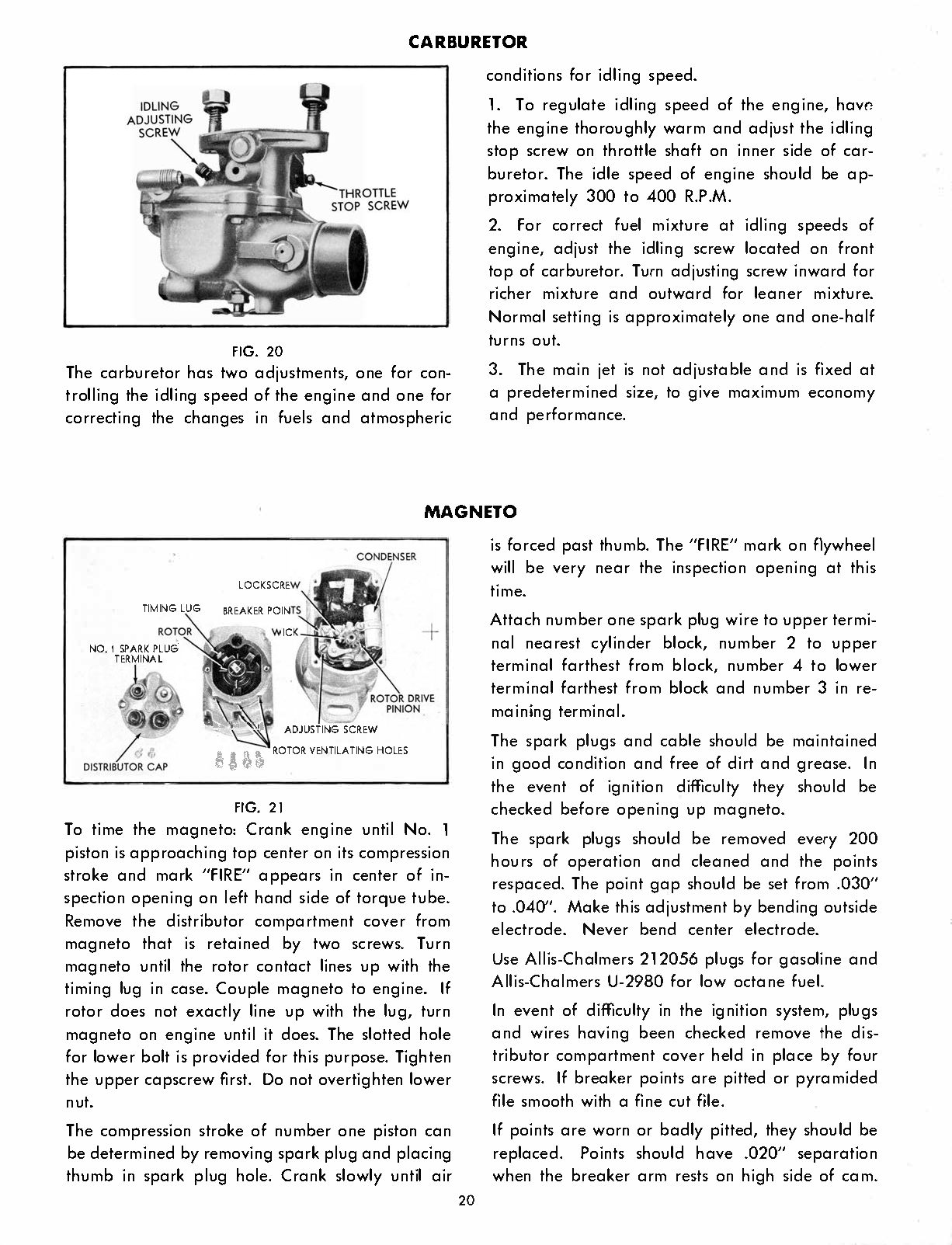

The Model “B” predates the conveniences most operators take for granted today, and that is exactly where these manuals earn their keep. The magneto ignition has to be timed correctly — 30-degree lag and advance, a .020″ point gap — and the spark-plug heat range actually changes with fuel (AC 45 for gasoline versus AC 47 for low-octane), a detail that trips up plenty of restorers. The factory hand-cranking and starting sequence, the break-in instructions, and the wheel-tread and tire-pressure tables are the kind of model-specific information that is easy to get wrong from memory and hard to find reliably online.
Pairing the operator’s manual with the parts-illustrations edition closes the loop: you learn how to service the tractor correctly, then you can identify the exact part on an exploded diagram before you buy it. For anyone restoring, maintaining, or simply keeping a vintage “B” running, having both references in one download removes the guesswork.
Manual codes: 257986 (Operators & Maintenance, 32 pp.) · TPL-28M (Operators, Maintenance & Parts Illustrations, 44 pp.)
