Ford 3400, 3500, 4400, 4500 Industrial Tractors Operator's Manual

85 Pages

This Manual is available in: Digital Download

CONTENTS

SAFETY PRECAUTIONS

CONTROLS AND INSTRUMENTS

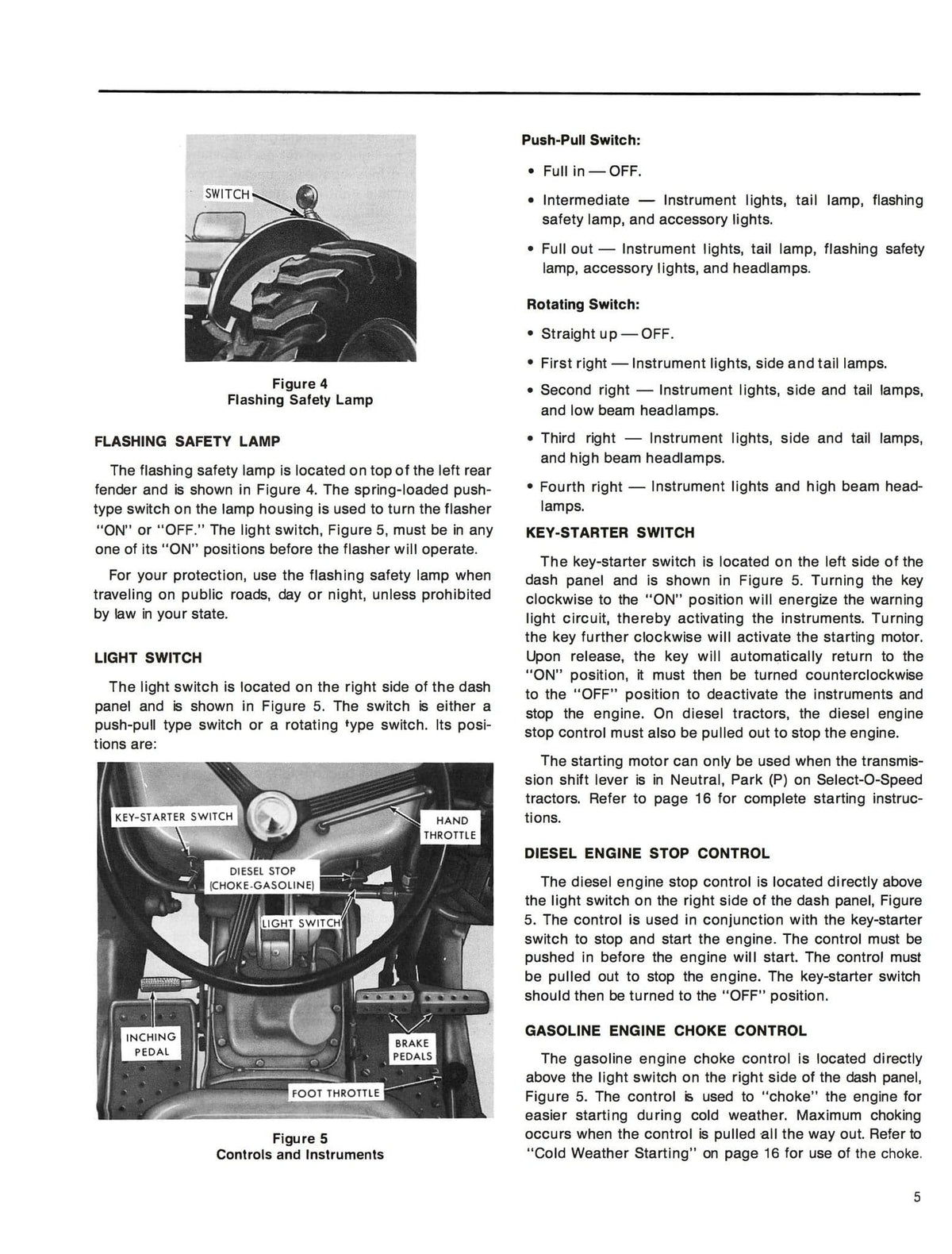

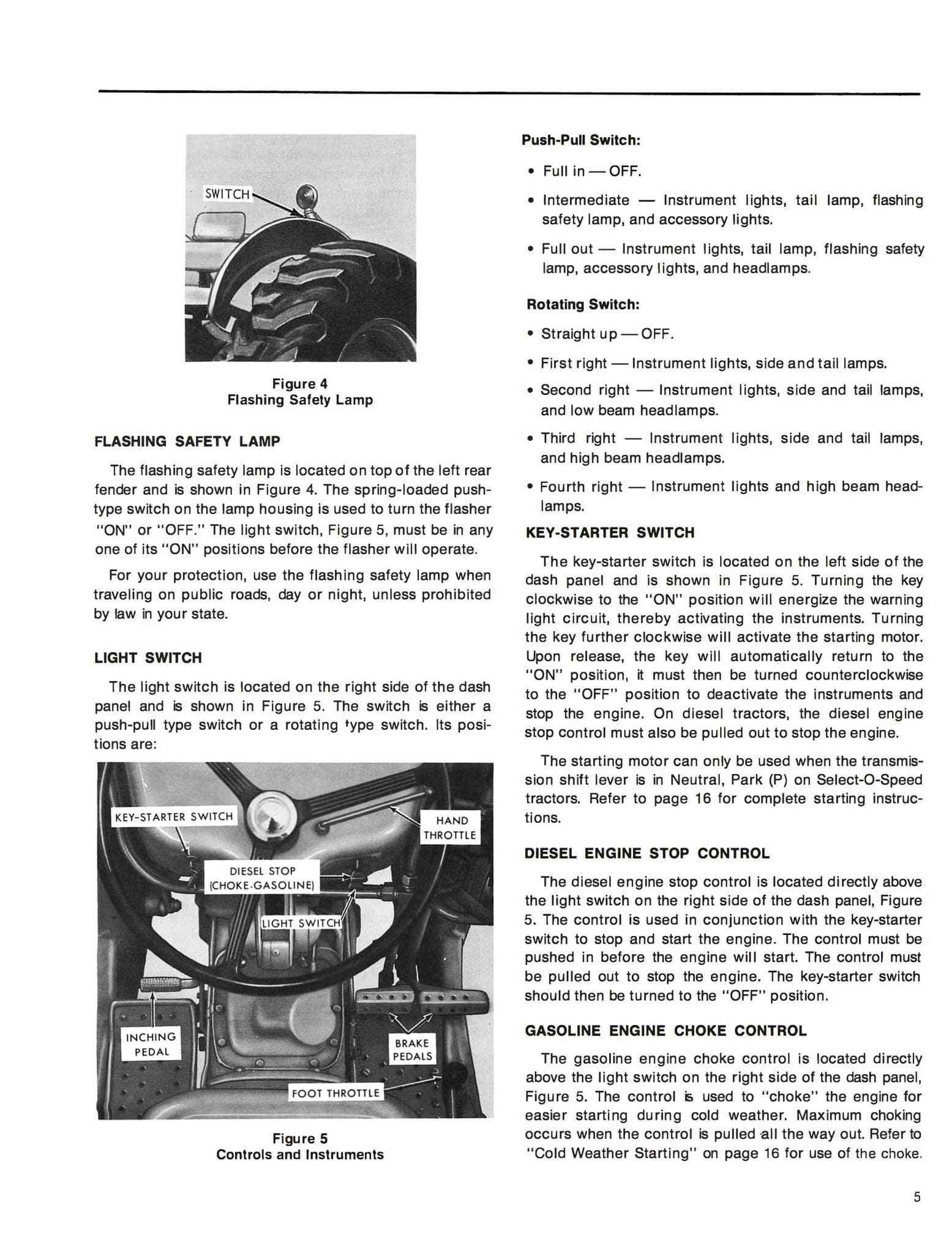

• seat, light, and engine controls
• brake and rear axle controls
• Select-O-Speed transmission and P.T.O. controls
• manual shift and power reversing transmissions and P.T.O. controls

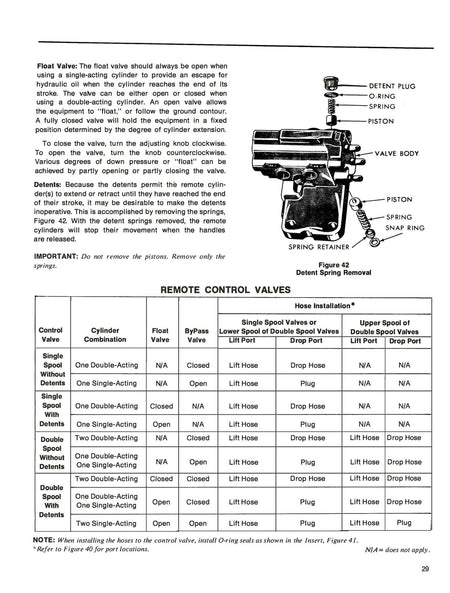

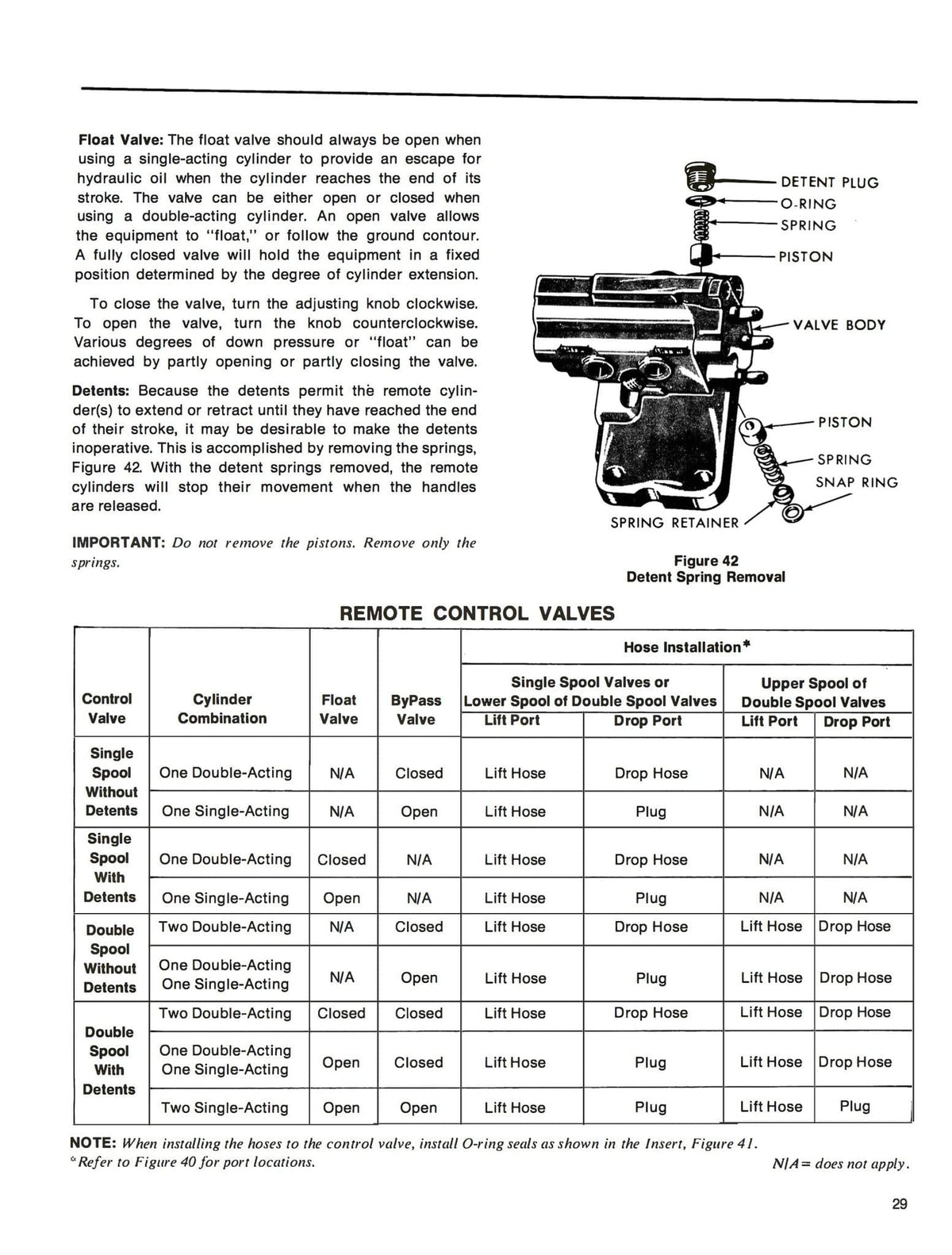

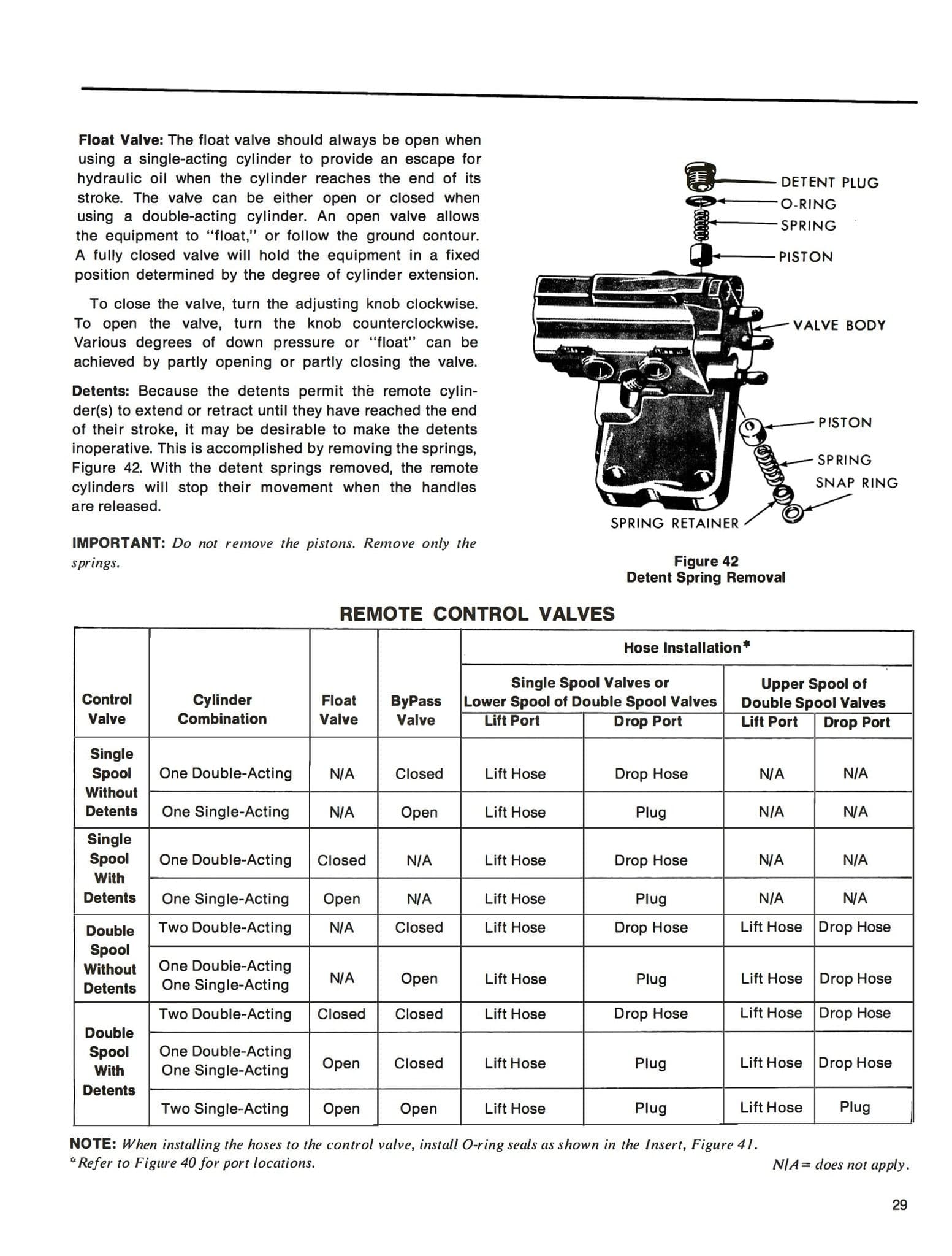

• hydraulic lift system controls

OPERATION

• break-in procedures
• starting the engine
• stopping the engine
• operating Select-O-Speed tractors and P.T.O.
• operating manual shift and power reversing tractors and P.T.O.
• operating differential lock
• operating hydraulic lift system
• lift linkage and drawbar
• wheel tread settings
• tractor weighting

LUBRICATION AND MAINTENANCE

• lubrication and maintenance chart
• fuels and lubricants
• fuel and lubricant service procedures
• general maintenance
• tractor storage
• accessories

SPECIFICATIONS

DIMENSIONS

PRE-DELIVERY AND 50-HOUR SERVICE

INDEX

Manual Code: SE 3226 86820
