Ford 7000 Tractor Operator's Manual
Approximately 60 pages, digital PDF download
This Ford 7000 Tractor Operator's Manual is the factory-issued guide covering safe operation, routine maintenance, lubrication schedules, adjustments and complete tractor specifications, published under manual code SE 3328. It is written for day-to-day operators as well as owners who want to maintain the tractor correctly using original manufacturer procedures.
Designed for farm operators, mechanics and restorers, it explains the Ford 7000's controls, operating procedures, PTO and hydraulic system use, wheel tread settings and service intervals in step-by-step detail.
About the Ford 7000
The Ford 7000 is a four-cylinder diesel of 256 cu. in. (4.19 litres) rated at 2100 rpm, running a 13 inch single dry plate clutch and mechanical wet disc brakes. Hydraulics are Load Monitor with dual sensing top link draft control and position control, on a Category II three-point linkage, fed by a gear pump delivering 6 gpm at a 2500 psi relief setting.
Bare weight is 6212 lbs. on an 87.5 inch wheelbase, with a 20 gallon fuel tank and an eight-speed transmission giving road speeds to about 16.8 mph. This is a full-size farm tractor, not a compact.
Manual Contents
Safety & General Information
- Safety precautions and operating rules
- General tractor information
- Operator responsibilities and warnings

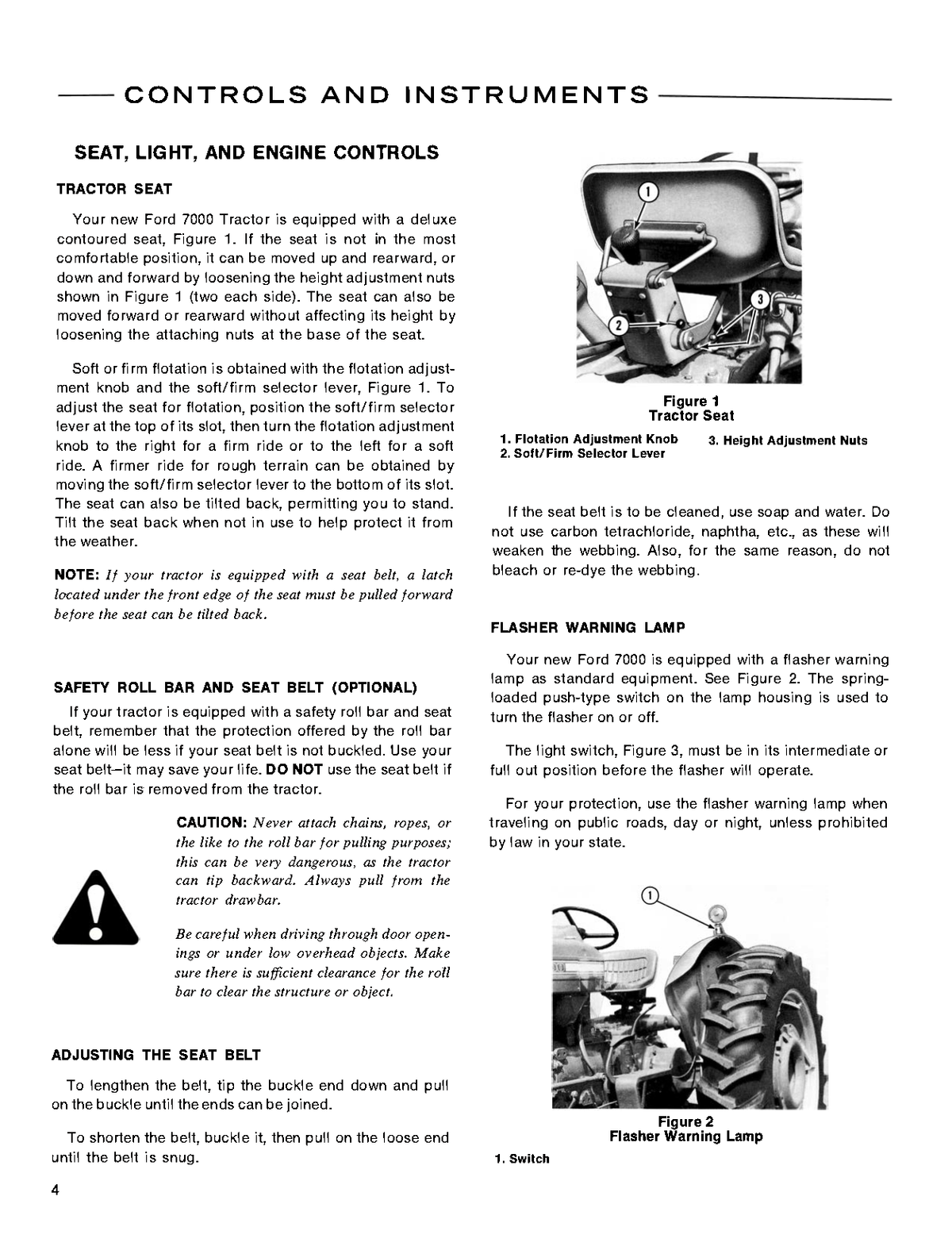

Controls & Instruments
- Seat, lighting, and engine controls
- Brake and rear axle controls
- Transmission and PTO controls
- Hydraulic lift system controls
Operation
- Break-in procedures
- Normal and cold weather starting
- Stopping and parking the tractor
- Transmission operation and gear shifting
- Brakes and differential lock operation

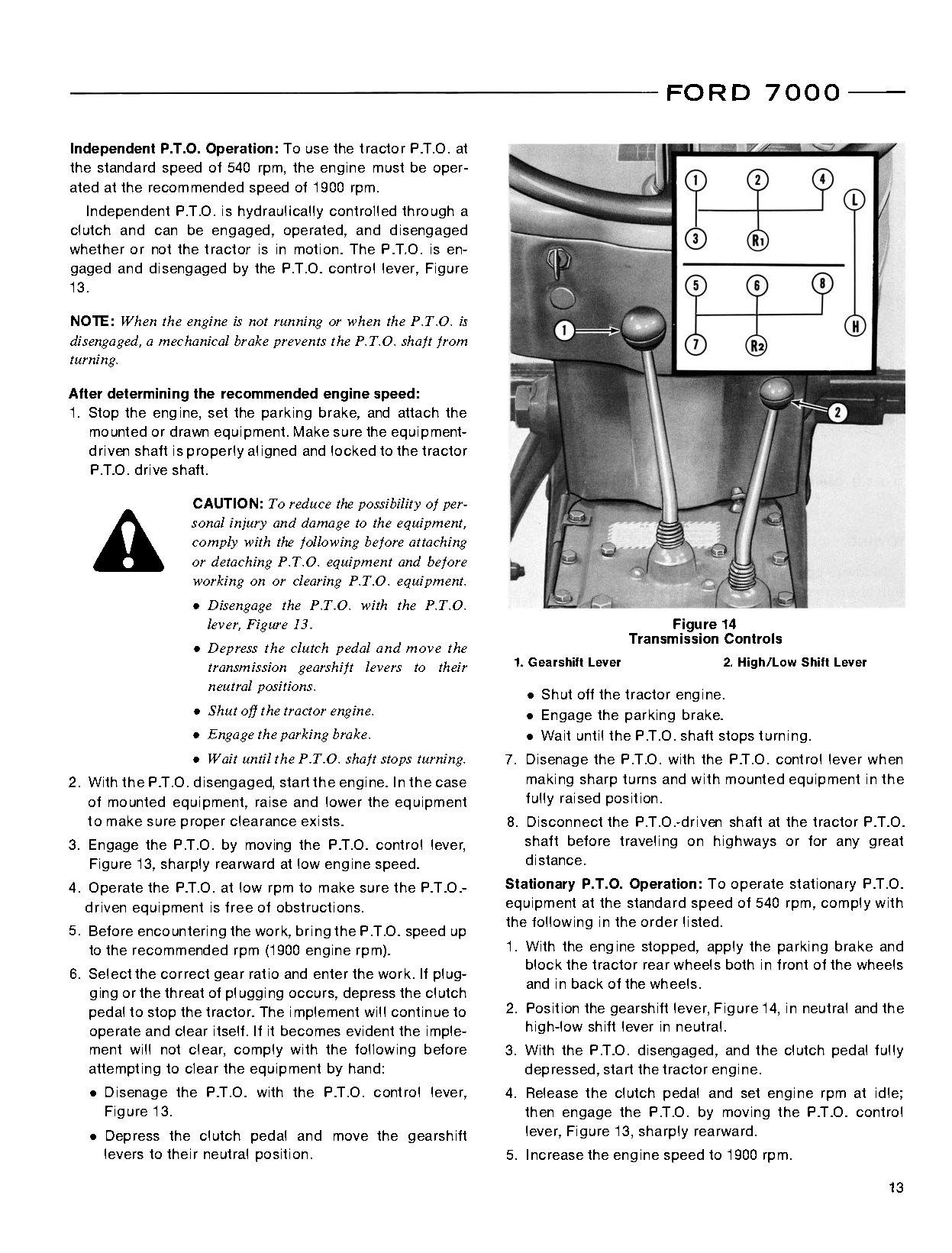

- Rear power take-off (PTO) operation
- Hydraulic system and lift linkage use
- Drawbar operation and tractor towing
- Wheel tread settings and tractor weighting
- Seat adjustment

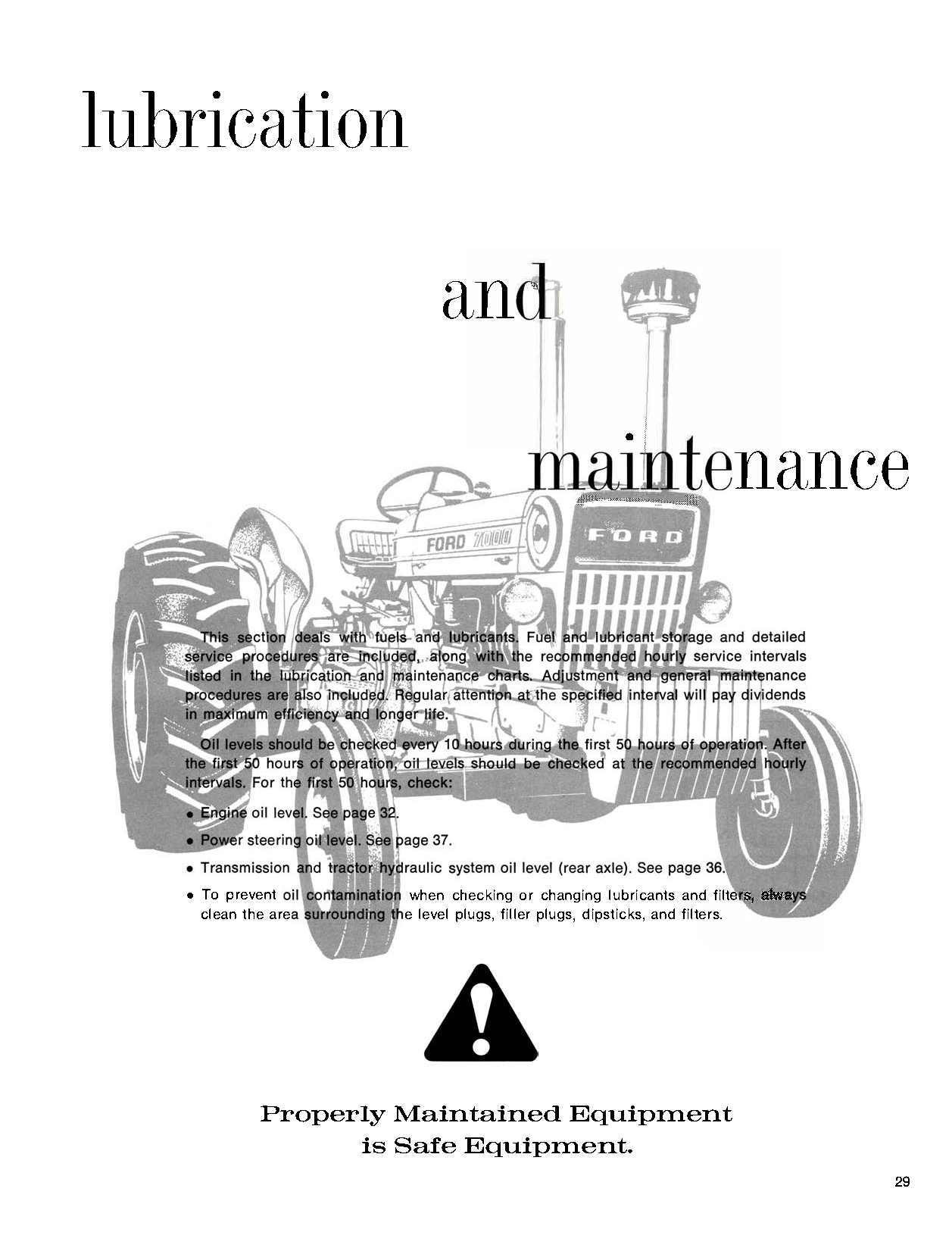

Lubrication & Maintenance
- Lubrication and maintenance interval charts
- Fuel, lubricant, and coolant specifications
- Grease fitting locations
- Engine oil and filter service
- Fuel system service and bleeding procedures
- Air cleaner and cooling system maintenance
- Transmission, hydraulic oil, and strainer service
- Clutch and brake pedal adjustments
- Wheel bolt torque specifications
Service Procedures & Setup
- Front wheel bearing service
- Front axle and toe-in adjustments
- Assembly and pre-delivery instructions
- 50-hour service procedures
Specifications & Reference
- Factory tractor specifications
- Fluid capacities and service fills
- Complete index for fast lookup
Full Specifications
Looking for the technical numbers? The Ford 7000 specifications page reproduces the manual's specification section in full: engine with go and no-go valve clearances, capacities, cooling, electrical, brakes with lining area, steering pump settings, hydraulics, tires, dimensions, and a ground speed table covering every gear at four engine speeds.
This is a high-quality digital scan of the original Ford operator's manual. The PDF is delivered instantly after purchase and can be viewed on any device or printed for shop and field use.
Manual Code
SE 3328 97110
Frequently Asked Questions
Which tractor does this manual cover?
This manual covers the Ford 7000 agricultural tractor, under Ford manual code SE 3328.
Does it include maintenance and lubrication schedules?
Yes. The manual includes lubrication charts, service intervals, and step-by-step maintenance procedures.
Are specifications included?
Yes. Factory specifications, capacities, and service reference data are included, and are reproduced in full on the specifications page linked above.
Is this a printed manual?
No. This is a digital PDF download delivered immediately after purchase.
Can I print the manual?
Yes. You may print individual pages or the entire manual for personal use.
