Massey-Ferguson MF 180 Tractor Operator's Manual
This operator's manual is the factory operation and maintenance reference for the Massey-Ferguson MF 180 tractor in both gasoline and diesel form, running roughly 88 pages of controls, operation, adjustment, lubrication, and routine servicing procedures. It's the book that came with the machine: how to identify and read the controls and instruments, how to start and operate the tractor in warm and cold weather, how to set up the hydraulics and PTO, and how to keep to the recommended maintenance schedule. Originally published by Massey-Ferguson under Form No. 1448 073 M3, and delivered here as an instant PDF download you can read on any device or print for the cab.
Models covered: Massey-Ferguson MF 180 (gasoline and diesel engine models) · includes references to the MF 180 Western model, on which independent auxiliary hydraulics are the only form of hydraulic control offered
About the MF 180
The MF 180 was offered with a choice of gasoline or diesel engine, and this manual documents both, including the separate starting and shut-off arrangements each requires. Diesel models use a fuel shut-off control knob and a starter-only switch, while gasoline models use a choke control and a combination ignition-starter switch. The manual gives particular attention to the diesel fuel injection equipment, with a full page of precautions on clean fuel handling, agglomerator bowl draining, and filter service to protect the injection pump and injectors.
Both engines are Perkins four-cylinder units of 236 cu. in., sharing a 3-7/8 inch bore and 5 inch stroke. The gasoline AG4.236 runs 7.0:1 compression with a Champion UJ-8 plug and a fixed non-adjustable main jet; the diesel A4.236 runs 16:1 with a built-in injection pump governor, multi-hole injectors, and a two-filter full-flow fuel system. The diesel was measured at 63.68 maximum PTO horsepower at Nebraska Test No. 900.
Transmission choices are a strong point of the MF 180. A standard gear shift lever combined with a dual range shift lever provides six forward and two reverse speeds, while the optional Multi-Power shift lever extends that to twelve forward and four reverse speeds by shifting from Low to High in each selected gear. The tractor could be equipped with either "Live" PTO or "Independent" PTO, and that choice changes the clutch: Live PTO tractors run a dual dry-disc clutch of 11 and 9 inches, while Independent PTO tractors run a single 11 inch dry disc. The hydraulics run a full quadrant of Draft, Position, Pressure, and Response control, with a lift pump giving 4.8 gpm and an optional auxiliary pump taking combined flow to 12.8 gpm. These machines remain in active use, and having the original operating and maintenance reference on hand is what keeps them set up and serviced the way the factory intended.
What This Manual Covers
- Controls & instruments: Steering wheel and telescoping/tilt column, throttle and foot throttle, ignition/starter switch (gas and diesel), fuel shut-off and choke controls, light switch, gear shift, dual range and Multi-Power shift levers, brake and parking controls, clutch, differential lock, PTO shift lever, and the hydraulic quadrant levers.
- Operation: Pre-starting inspection, starting the engine, warm-weather and cold-weather starting for gas and diesel, warm-up and break-in, selecting ground speeds, shifting gears, stopping and towing, plus Multi-Power transmission use and the test for overload.
- Hydraulic system: When and how to use Draft Control, Response Control, Position Control, and Pressure Control; the inner quadrant control; pull-type implements; constant pumping range; and the basic and independent auxiliary hydraulic systems, including lock-out and variable drop cartridge and quick-coupler connections.
- Attaching & detaching implements: 3-point hitch implements, pull-type pressure control implements, cone and socket hitch, universal pressure control hitch, rapid coupler use, swinging drawbar, adjustable top link, and Power Take-Off ("Live" and "Independent").

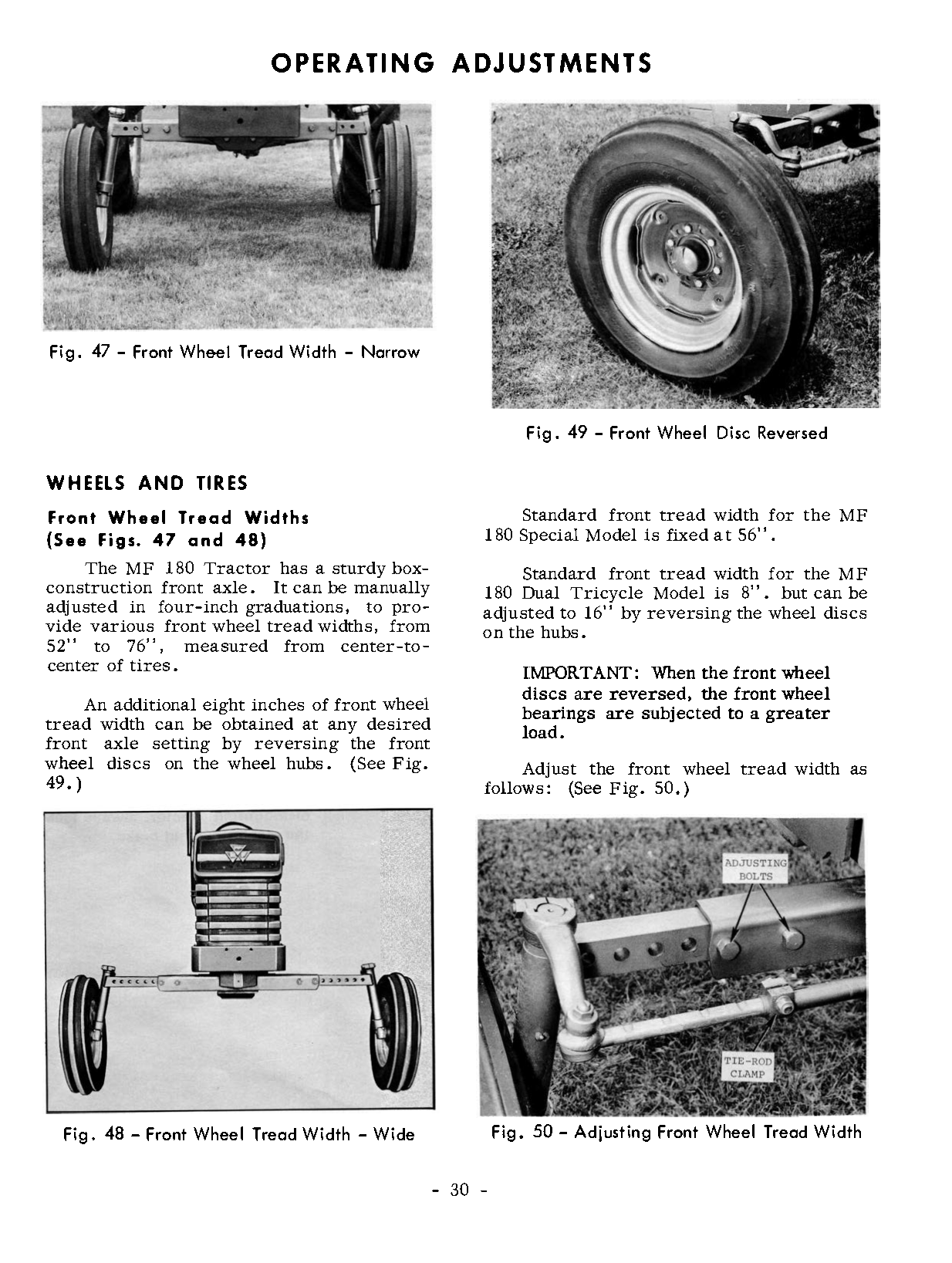

- Operating adjustment: Wheels and tires, front and rear wheel tread widths, Float-O-Matic seat, steering column and fender adjustment, and liquid filling the tires.
- Fuel, lubricants & capacities: Gasoline and diesel fuel care, general lubrication information and symbols, storing lubricants, and a lubricants and capacities reference.
- Maintenance & servicing: The full interval schedule, from 10-hour daily and break-in through 50, 100, 200, and 750-hour annual service, plus servicing of the diesel and gasoline fuel systems, ignition, air filter, electrical and cooling systems, clutch, differential lock, brake, front wheel alignment and bearing repacking, hydraulic quadrant, power steering, and rear axle planetary.
- Storage, troubleshooting, accessories & specifications: Tractor storage procedure, a troubleshooting section, available accessories, and the specifications chart.
Why This Manual Matters
- Covers gas and diesel in one book. Starting, shut-off, fuel care, and fuel-system servicing are all documented for both engine types, so the manual matches your MF 180 whichever engine it carries.
- The full maintenance schedule at your fingertips. Every interval from daily through 750-hour annual service is laid out, so you can keep the tractor on the factory-recommended plan rather than guessing.
- Multi-Power and hydraulic setup explained. The twelve-forward and four-reverse Multi-Power range and the Draft, Position, Pressure and Response quadrant are described in operating detail. Those are the settings that determine how well the tractor pulls and lifts.
- The clutch follows the PTO, not the transmission. Live PTO tractors use a dual dry-disc clutch, Independent PTO tractors a single disc. Knowing which you have before you order parts saves a return.

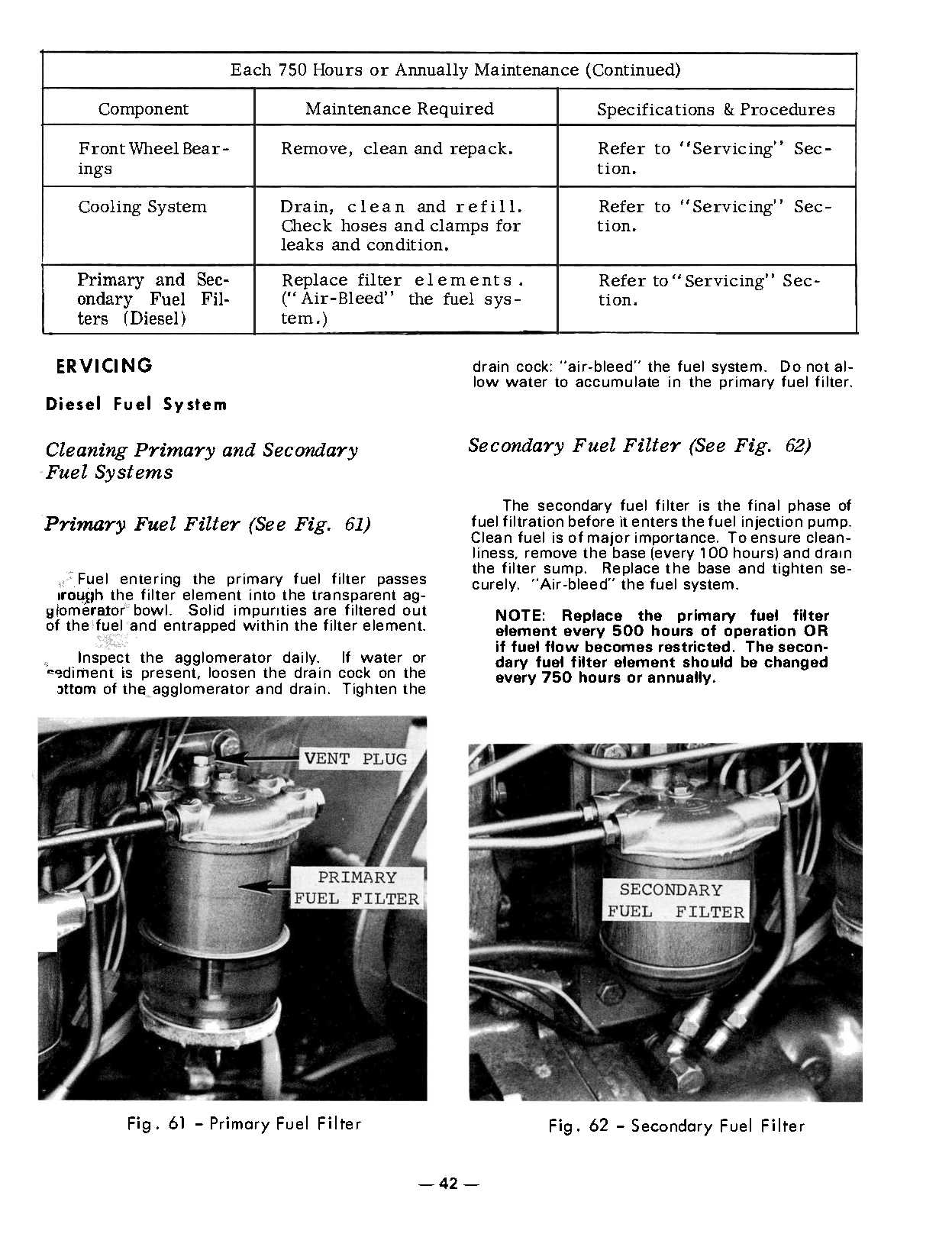

- Diesel fuel-system protection. Dedicated precautions on clean fuel, agglomerator bowl draining, and filter replacement help protect the precision injection pump and injectors that are expensive to repair.
- Factory literature is increasingly hard to find. This searchable, restored PDF puts the original MF 180 operator's manual back in your hands.
Full Specifications
Looking for the technical numbers before you buy? The Massey Ferguson MF 180 specifications page reproduces the manual's specification section in full and free: both engines side by side, cooling, the complete power train including clutch and both transmissions, PTO, electrical for gas and diesel, brakes, the hydraulic system, capacities, tire sizes, dimensions, shipping weights and horsepower.
It also documents something worth knowing before you rely on a horsepower number for this tractor: the manual prints its specification page twice, on pages 73 and 74, and the two versions disagree on horsepower and front tread. Both are reproduced there so you can see exactly what the factory published.
Manual Details
- Type: Operator's Manual
- Models covered: Massey-Ferguson MF 180, gasoline and diesel
- Engines: Perkins AG4.236 gasoline and A4.236 diesel, 236 cu. in.
- Pages: Approximately 88
- Manual Code: Form No. 1448 073 M3 (5/73)
- Delivery: Instant digital download (PDF)
- Printable: Yes, print the entire manual or individual sections as needed
