New Holland Hayliner 275 Baler Owner’s Manual (Operators Manual)
68 Pages
This Manual is available in: Digital Download
Keep your Hayliner 275 baler working safely and tying consistently. This factory owner’s manual is the go-to reference for everyday operation, adjustments, lubrication, troubleshooting, and seasonal upkeep. If you’re dealing with missed ties, poor bale shape, pickup feeding issues, or need correct setup and safety procedures, this manual is the fastest way to get the baler back to reliable performance.
Manual Code: Form No. 0275-1-7½M-6-66W
What this manual helps youv do
- Set up and operate the baler correctly (PTO or engine model procedures)
- Dial in bale shape, length, and weight with proper adjustments
- Service knotter/twister systems (timing, end play, twine parts, and common fixes)
- Maintain pickup & feeding (windguard, cam follower, fingers, tooth pipe, chains)
- Use the correct safety procedures (highway safety, shear bolts, clutches, warning lamp)
CONTENTS
ADJUSTMENT
- Bale Shape
- Baler Service Chart
- PTO Slip Clutch
- Feeder Carriage
- Knife Adjustment
KNOTTER
- Bill Hook
- Knotter / Twister Brake
- Knife Arm
- Knotter Stack
- Knotter / Twister Stop
- Removing End Play
- Twine Disc
- Twine Finger
- Twine Holder
- Knotter Service Chart
- Metering Wheel Location
NEEDLES
- Adjustment
- Timing
- Needle Safety Latch
- Needle Yoke Rod
PICKUP
- Lift Spring
- Over-Running Clutch
- Slip Clutch
- Wheel
- Windguard
PLUNGER / DRIVE
- Plunger Bearing Adjustment
- Roller Chains
TWISTER
- Adjustments
- Assembly
- Disassembly
- Forming the Twist
- Servicing
- Service Chart
GENERAL
- Optional Equipment
- Ordering Parts
- Safety Precautions
- Specifications
- Warranty
LUBRICATION
MAINTENANCE
- Main Gearbox
- Pickup
- Cam Follower
- Fingers
- Tooth Pipe
- PTO Drive
- Storing the Baler
- Tire Pressures
- "LOCTITE"
OPERATION

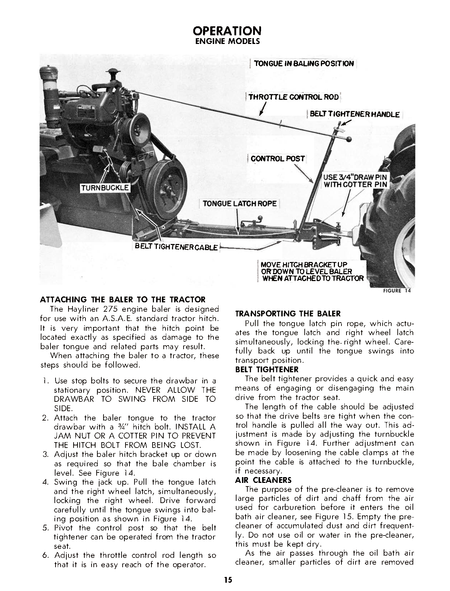

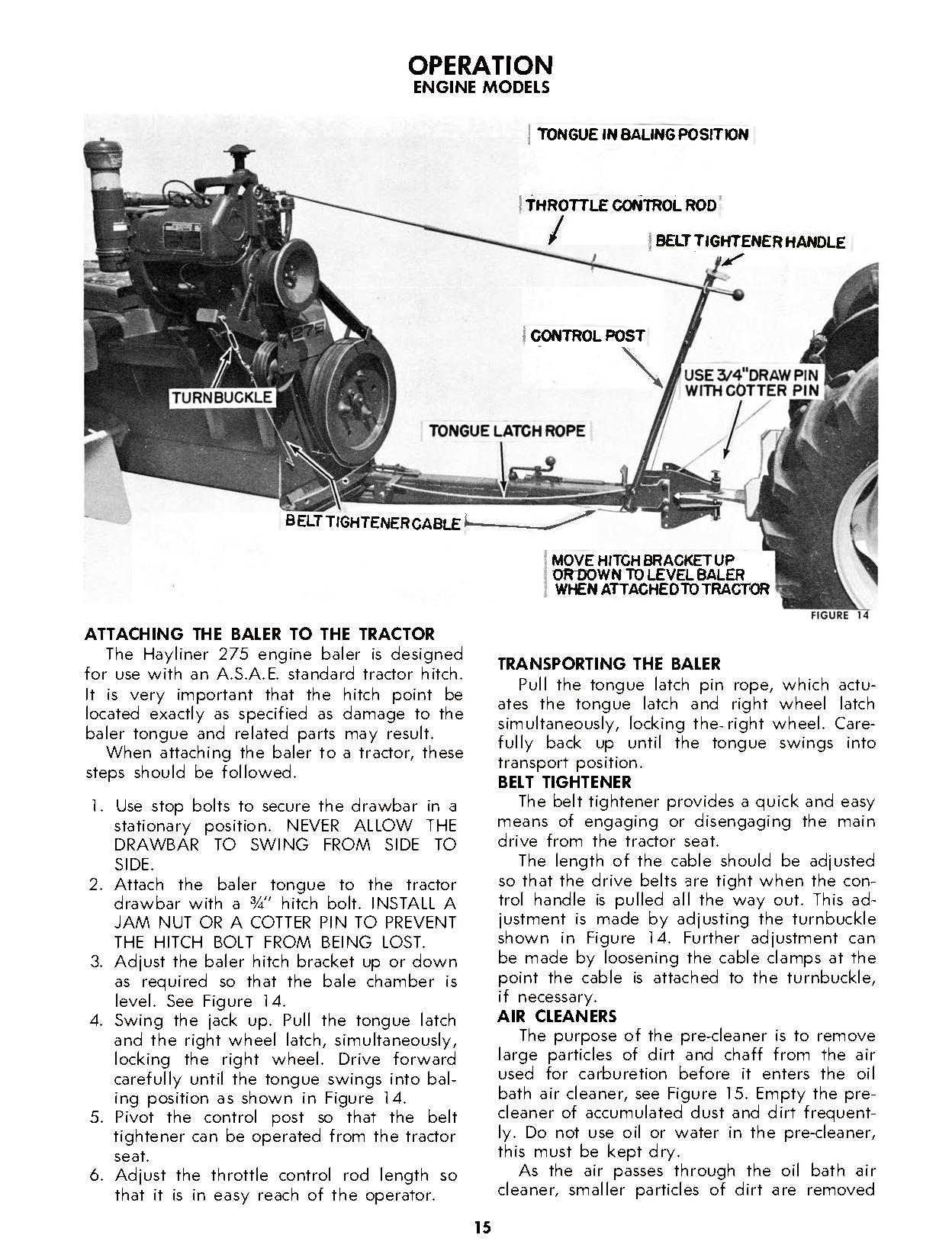

- Attaching the Baler (P.T.O.)
- Attaching the Baler (Engine)
- Before Using Your Baler
- Bale Length
- Bale Tying
- Bale Weight
- Hydraformatic
- Multi-Luber
- Slip Clutch Adjustment
- Starting the Baler
- Threading the Baler
- Transporting Baler (Engine)
- Transporting Baler (P.T.O.)
- Twister
- Windrow Preparation
- Wind Guard
- Tying
SAFETY FEATURES
- Highway Safety

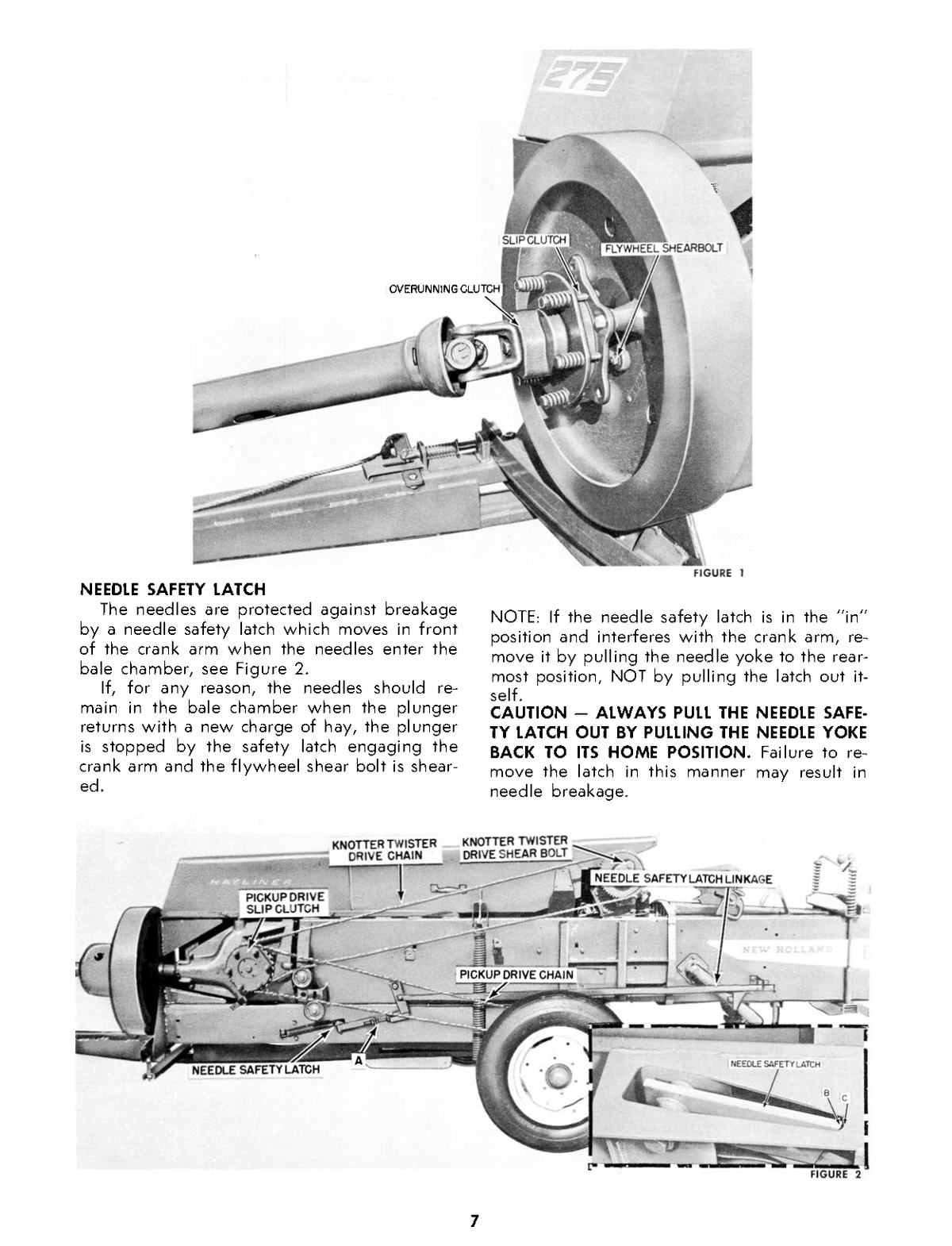

- Needle Safety Latch
- PTO Slip Clutch
- Over-Running Clutch
- Shearbolts
- Flywheel
- Knotter / Twister Drive
- Warning Lamp
FAQ
Is this the factory manual?
Yes—this is the original-style owner/operator manual content covering operation, adjustment, lubrication, maintenance, and safety.
Will this help with missed ties or inconsistent knotting/twisting?
Yes. The manual includes knotter/twister sections (bill hook, twine disc/finger/holder, brake/stop settings, timing, and service charts) that are commonly referenced when troubleshooting tying issues.
Is this a printed manual?
No—this listing is a digital PDF download (view on computer/tablet/phone or print a shop copy).
