Ford 1700 Tractor Operator's Manual
60 pages, digital PDF download
This Ford 1700 Tractor Operator's Manual is the factory-issued guide designed to help owners safely operate, maintain and service their Ford 1700 compact tractor. Whether you are performing routine maintenance, setting wheel tread width, operating the hydraulic lift system, or preparing the tractor for seasonal storage, it provides step-by-step instructions straight from Ford, under manual code SE3752A.
Ideal for farmers, property owners and restorers, the manual covers both two-wheel drive and four-wheel drive configurations and includes detailed lubrication charts, operating procedures and the specifications needed to keep the tractor running reliably.

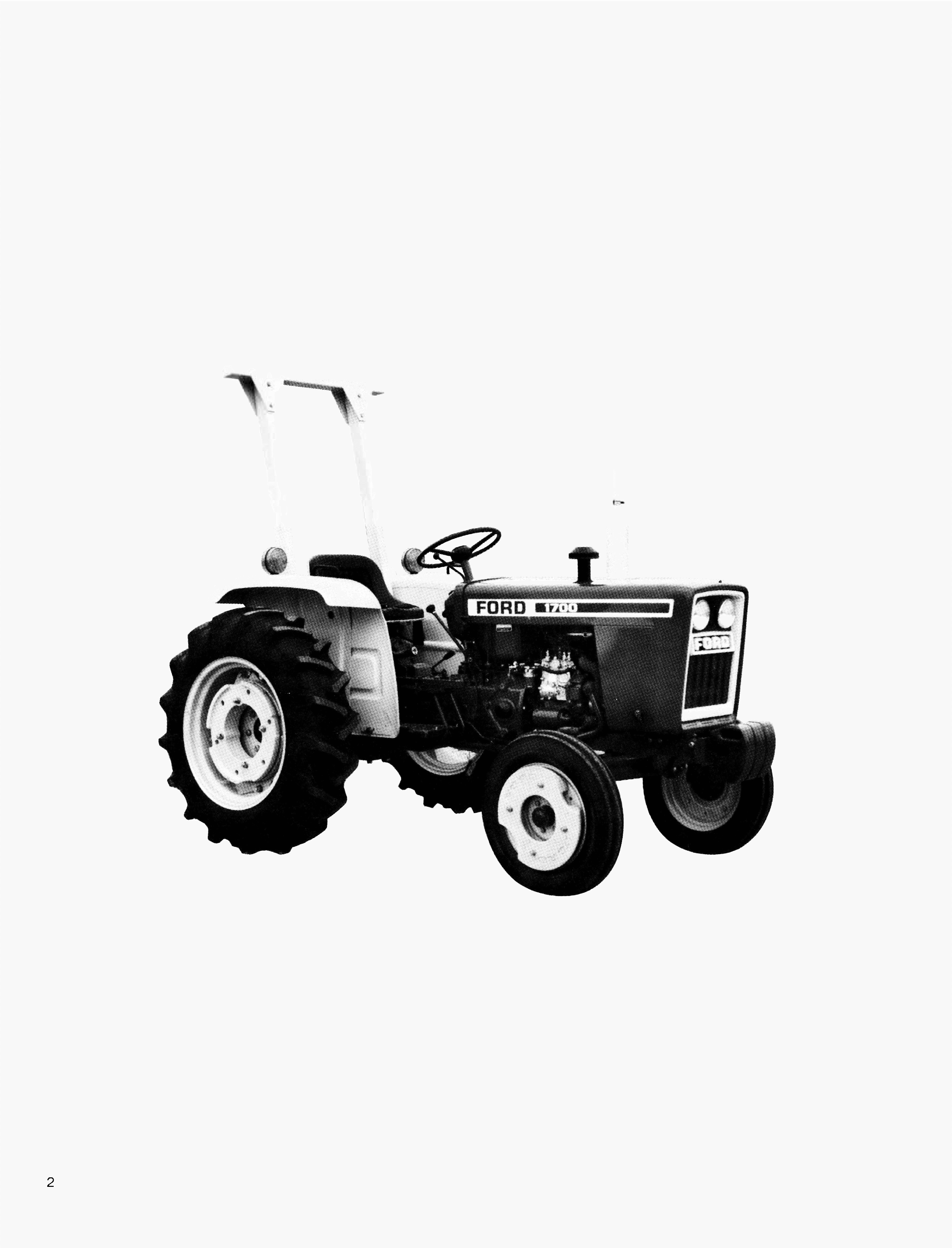

About the Ford 1700
The Ford 1700 runs a two-cylinder Shibaura diesel of 77.7 cu. in. (1272 cc), rated at 2500 rpm and producing 23.0 observed PTO horsepower. It carries twelve forward gears and four reverse, a Live Position Control Category 1 three-point hitch with optional draft control, and a gear pump delivering 7.3 gpm at a 2133 psi relief setting. Hydraulic power steering was available as an alternative to manual.
Bare weight is 2326 lbs. in two-wheel drive or 2513 lbs. in four-wheel drive, on 11.2 × 24 rear tires and a wheelbase of about 60 inches.
It shares its engine displacement with the earlier Ford 1000 and 1600, but the specification was revised: injection timing moved from 24° to 21° BTDC, idle speeds came down, and valve lash is specified cold rather than warm. If you are working from an older manual for the same engine, check that last one before setting valves.
Manual Contents
Safety & Identification
- International symbols and safety precautions
- Safety and instruction decals

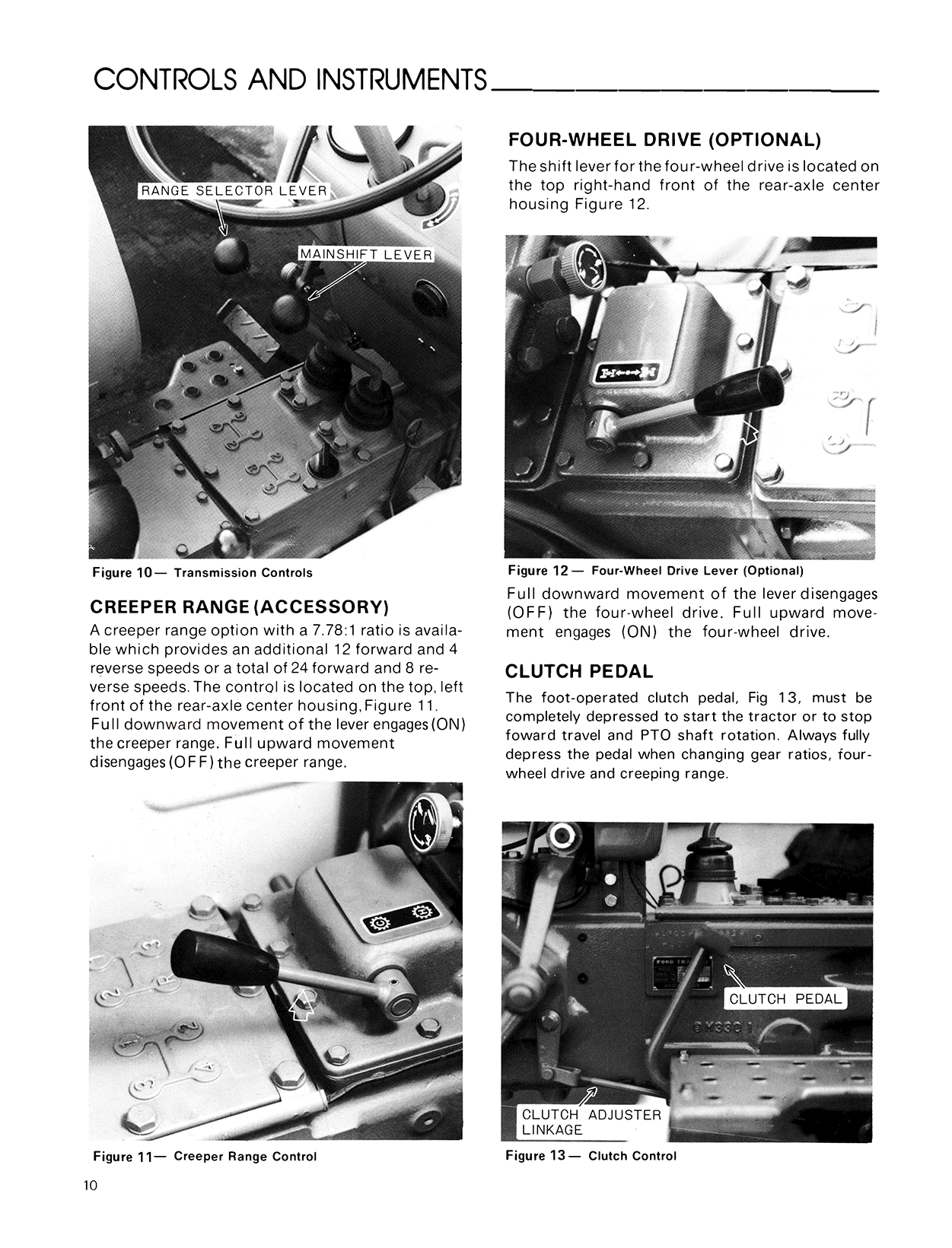

Controls & Instruments
- Seat, lighting, and engine controls
- Instrument panel and throttle controls
- Brake and differential controls
- Transmission and PTO controls
- Hydraulic lift system controls
Operation
- Break-in procedures
- Starting and stopping the engine
- Operating the transmission, four-wheel drive, and PTO
- Towing the tractor

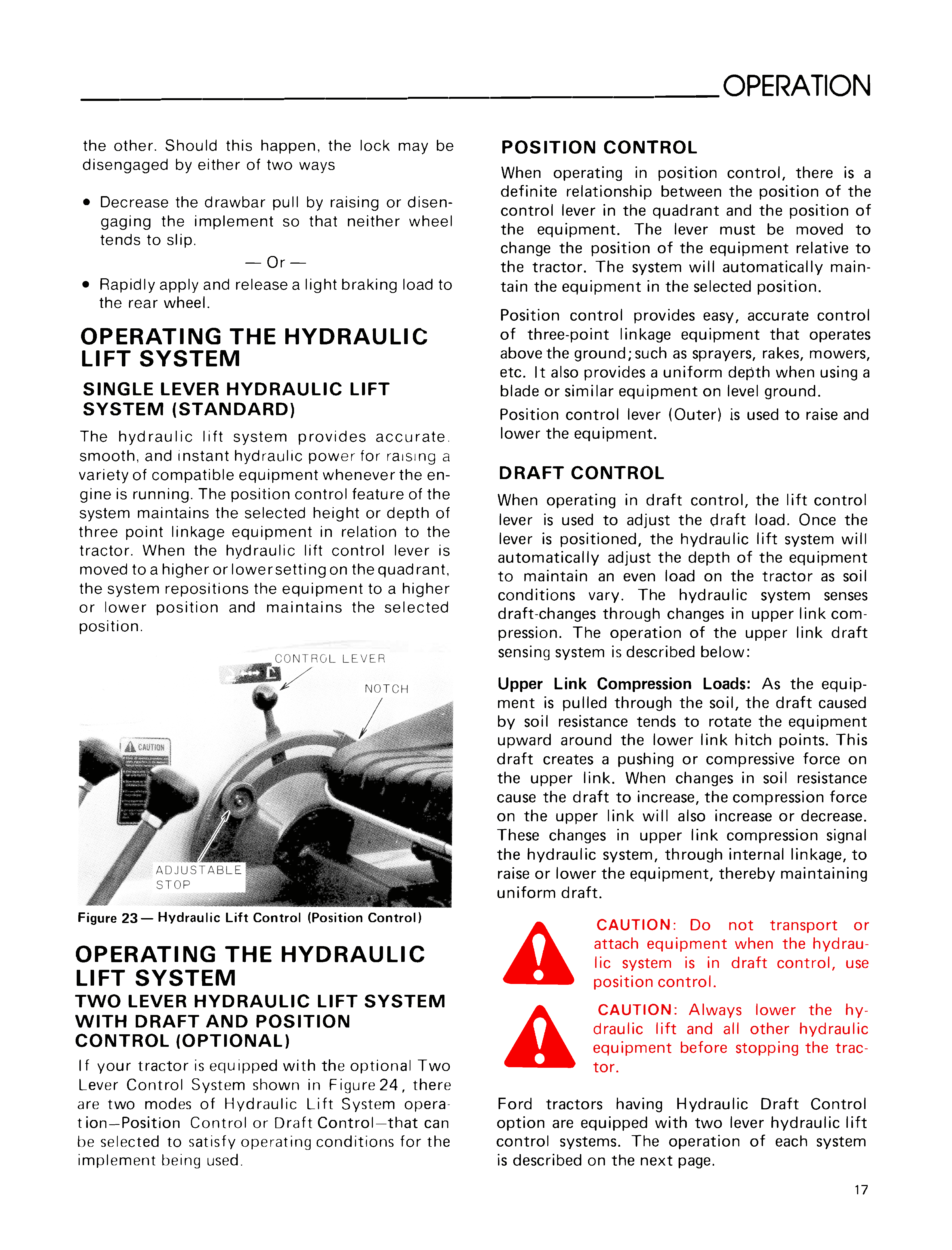

- Hydraulic lift system operation
- Driving the tractor

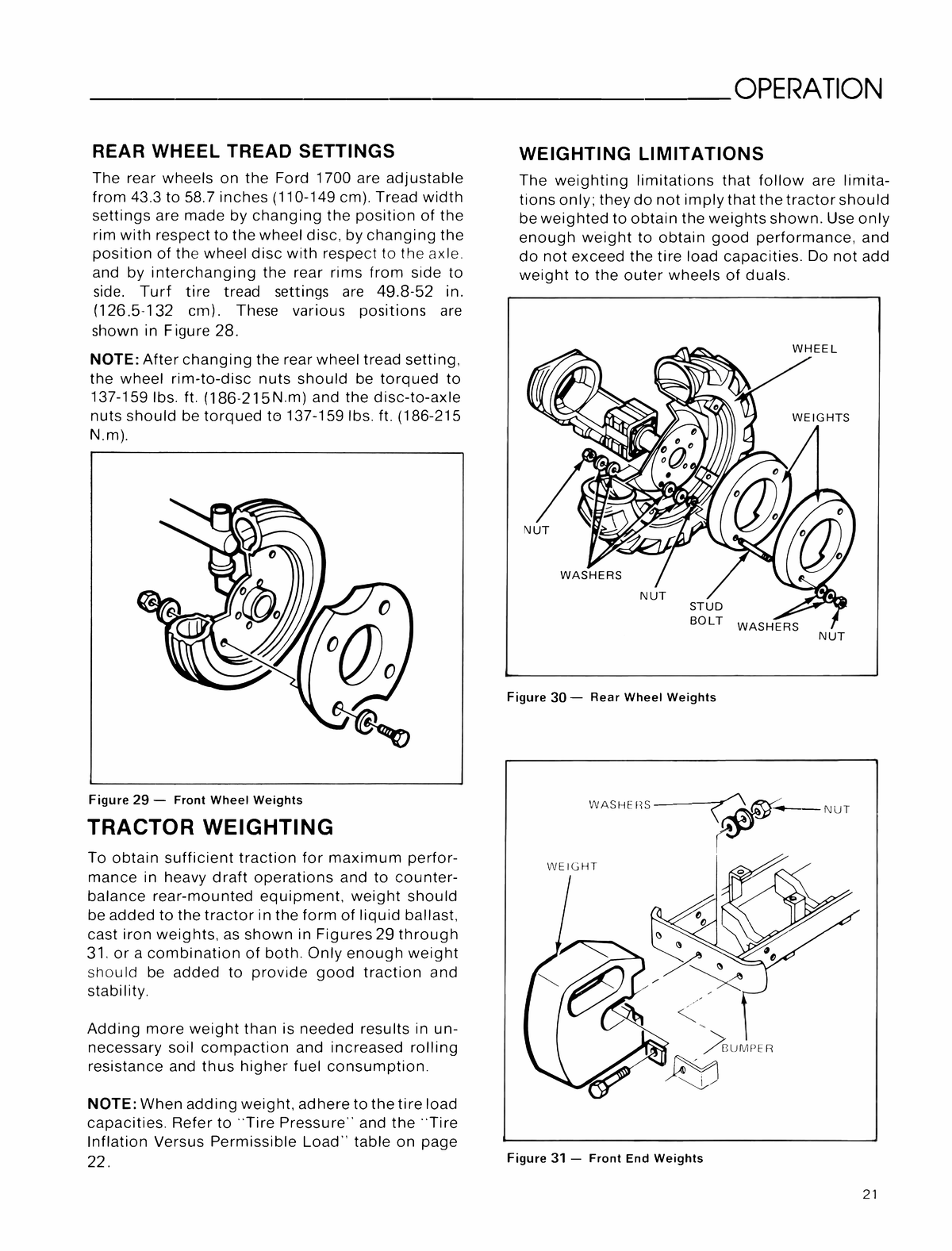

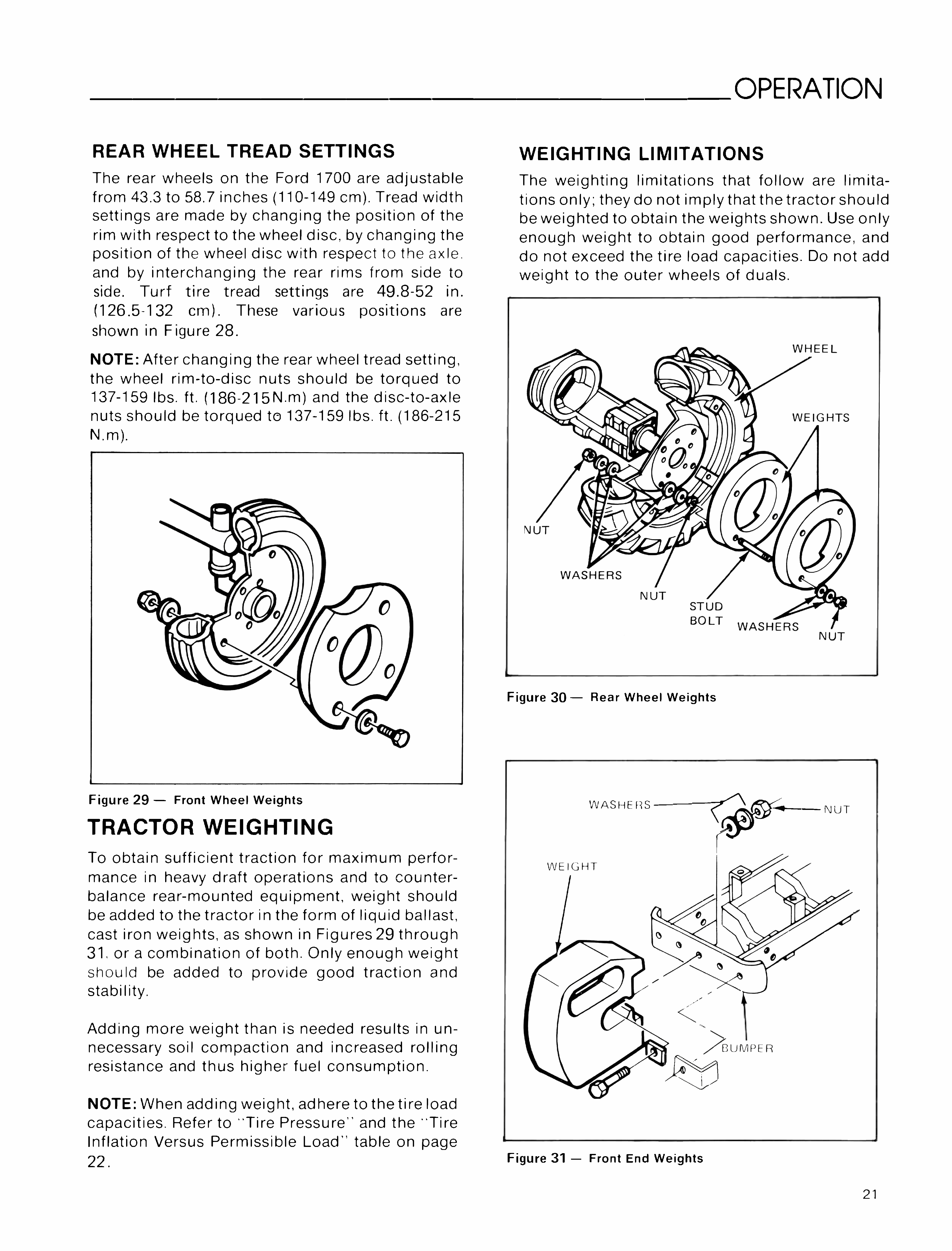

- Wheel tread settings and tractor weighting
- Tire pressure guidelines
Lubrication & Maintenance
- Lubrication and maintenance charts
- Two-wheel drive lubrication points
- Four-wheel drive lubrication points
- Fuel and lubricant specifications
- Fuel and lubricant service procedures
- General maintenance procedures
- Tractor storage guidelines
- General torque specification table
Specifications & Service
- Technical specifications
- Predelivery inspection checklist
- 50-hour service procedures
Full Specifications
Looking for the technical numbers? The Ford 1700 specifications page reproduces the manual's specification section in full: engine, capacities, cooling, electrical, hydraulics, PTO, tires, wheel bolt torques, lubricants, and dimensions and ground speeds for both two-wheel and four-wheel drive.
Why You Need This Manual
- Factory-correct operating procedures
- Accurate lubrication points and service intervals
- Separate two-wheel and four-wheel drive coverage, including front axle differential and final reduction capacities
- Correct specifications for maintenance and setup
This is a high-quality digital scan of the original Ford operator's manual, delivered instantly after purchase. No waiting for shipping and no incomplete reproductions.
Manual Details
- Model Coverage: Ford 1700 Tractor
- Manual Type: Operator's Manual
- Pages: 60
- Format: Digital PDF (downloadable)
- Manual Code: SE3752A 300810440F 98210-100
Frequently Asked Questions
Is this the official Ford manual?
Yes. This is the factory-issued operator's manual created specifically for the Ford 1700 tractor, carrying Ford manual code SE3752A.
Does this manual cover four-wheel drive models?
Yes. The manual includes lubrication and maintenance sections for both two-wheel drive and four-wheel drive tractors, and the specification section gives separate figures for each.
Is this a printed book?
No. This manual is delivered as a digital PDF download for immediate access.
Does it include maintenance intervals and torque specs?
Yes. The manual contains lubrication charts, fuel and lubricant specifications, general maintenance procedures, and a torque specification table.
Can I print the manual?
Yes. You may print pages or the entire manual for personal use.
