Ford 2110 Tractor Operator's Manual
This operator's manual is the factory operation and maintenance reference for the Ford 2110 compact diesel tractor, running roughly 68 pages of controls, operating procedure, lubrication, and scheduled maintenance. It's the book that came with the machine: the instrument panel and control layout, break-in and starting procedure, separate lubrication and maintenance charts for two-wheel and four-wheel drive, and the complete specification and capacity tables. Originally published by Ford and delivered here as an instant PDF download you can read on any device or print for the cab.
Models covered: Ford 2110 (both two-wheel drive and four-wheel drive — the manual carries a separate lubrication and maintenance chart for each)
About the Ford 2110
The 2110 is a compact Ford utility tractor built in Japan by Shibaura from 1983 to 1987 as part of Ford's Ten Compact Series, identified by a Product Identification Plate on the left-hand side of the transmission housing. It runs a four-cylinder diesel of 138.5 cu. in. (2269 cc) on a 3.35 × 3.94 in. bore and stroke, with a 21:1 compression ratio, 1-3-4-2 firing order, and a rated speed of 2500 rpm. Power reaches the ground through a 12 × 4 synchromesh transmission and a dual clutch, and an accessory creeper range with a 7.46:1 ratio adds a further twelve forward and four reverse speeds for low-speed work.
On the implement end it carries a live PTO — a 1-3/8 in. six-spline SAE standard shaft turning 540 rpm at 2392 engine rpm, with 34.5 observed PTO horsepower — a live Category 1 three-point linkage, and a gear-type hydraulic pump rated 8.6 U.S. gpm at 2133 psi. Four-wheel drive and power steering were both options, and the tractor came with a rollover protective structure and suspension seat as standard equipment. Those options are exactly why the factory book still matters on a used one: the capacities, tire pressures, tread settings, and service intervals differ between the two-wheel and four-wheel drive versions, and this manual prints both side by side.
Full engine, capacity, cooling, hydraulic, tire, dimension and torque figures are listed on the Ford 2110 specifications page.
What This Manual Covers
- International symbols and safety precautions: The symbol key used throughout the machine and the book, followed by the full safety section.

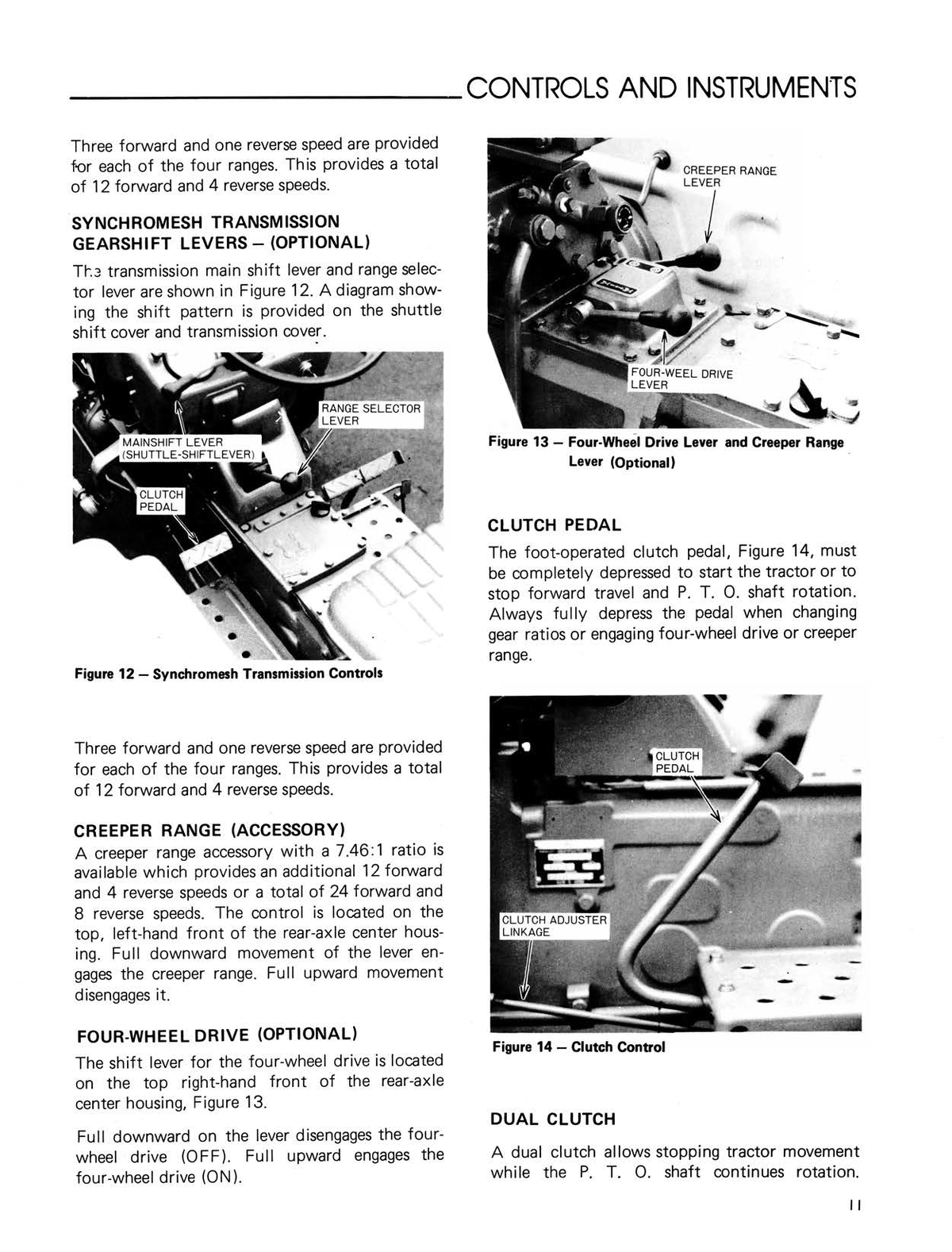

- Controls and instruments: Seat and rollover protective structure, lighting, instrument panel, throttle controls, brake controls, differential control, transmission and PTO controls, and the hydraulic lift system controls.
- Operation: Break-in procedure, starting and stopping the engine, operating the transmission, four-wheel drive and PTO, towing the tractor, the differential lock, and the hydraulic lift system.
- Driving, tread settings and weighting: Driving technique, wheel tread settings (the rear wheels adjust from 48 to 72 in.), tractor weighting with the cast-iron front, front wheel and rear wheel weights, and tire pressures.
- Lubrication and maintenance charts: Two charts — one for the two-wheel drive tractor, one for the four-wheel drive — laying out every service point against its interval.
- Fuel and lubricants: Fuel and lubricant specifications with Ford part numbers, plus the service procedures: fuel filters, injection pump, cooling system draining and flushing, fan belt adjustment, and the rest.
- General maintenance and tractor storage: Routine maintenance across the machine, and the procedure for putting the tractor away and returning it to service.
- General torque specification table: A dedicated fastener torque reference.
- Specifications: Engine, capacities, cooling system, power take-off, hydraulics, cast-iron weights, tires, wheel bolt torques, and ROPS attaching bolt torques.
- Safety and instruction decals: Decal locations, what each one says, and their part numbers for replacement.
- Pre-delivery and 50-hour service: The dealer check sheets and both signed record copies, plus the inoperative service checks.
Why This Manual Matters
- Two drivelines, one book. The two-wheel and four-wheel drive tractors get their own lubrication and maintenance charts, their own tire specifications, and their own front wheel bolt torques — so you are working from the numbers for the tractor in front of you rather than a general figure.
- The service intervals that keep a compact diesel alive. Every lubrication and maintenance point is tied to an interval, with the correct fluid specification and capacity called out, which is most of what determines whether one of these is still running well decades on.
- Reference data you can reassemble to. A general torque specification table, wheel bolt torques, ROPS attaching bolt torques, valve clearances, and full system capacities are all printed here.
- Decal identification with part numbers. The safety and instruction decal section shows where each decal belongs and gives the part number, which is the hard part of putting a faded machine back to correct.
- Correct operating technique. Break-in, PTO engagement, differential lock use, hydraulic lift operation, tread setting and weighting are all factory procedure — the difference between working a tractor and wearing it out.
- Scarce factory literature, restored. Operator's manuals for these Japanese-built compact Fords are increasingly hard to find in usable condition — this searchable, restored PDF puts it back in your hands.
Manual Code: SE4312 300810720E 118505-065
